Product Specifications
| Prod Model: |
B8080 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Type: |
Power Meter |
| Display: |
Digital |
| Electric Equipment: |
Single-phase |
Product Description

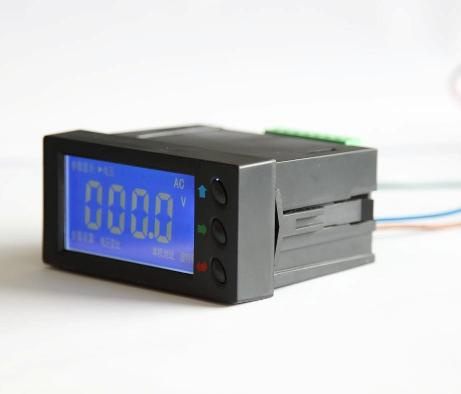

B8080-AC5-1V series single-phase AC voltage meter LCD display is based on the operation of China's power equipment and intelligent monitoring requirements designed to replace traditional analog indicators, showing a clear, beautiful, is widely used in industrial and mining enterprises, civil construction, supply and distribution systems and other modern substation voltage measurement instrument, according to user need to select a single display, plus any other show features a variety of structural products for the user to choose using the latest microprocessor chips, anti-interference ability.
: 96mm× 48mm× 86mm
: 91 mm× 45mm
Project
Index
Accuracy class
0.5, frequency 0.2
Display Digits
Four, plus sign bit
Enter
Nominal input
AC: Current 1A, 5A; Voltage 100V, 220V, 400V
Burnout
Continuous: 1.2 times the instantaneous; Current 10 times / 5 seconds, the voltage 2 times / 1 sec
Frequency
50Hz± 10%
Output signal
DC4 ~ 20mA or RS-485 or passive relay contact
Power Supply
AC (85 ~ 265) V or DC (100 ~ 275) V
Power
5VA
Dielectric Strength
2kV, 1 min (test voltage AC RMS)
Insulation resistance
100MΩ
Mean time between failures
60000
Working conditions
Ambient temperature: -25 ~ 55, relative humidity ≤ 95%, non-corrosive gas sites
Altitude
2500Meter
Transmission output
DC4 ~ 20mA, load capacity ≤ 500Ω
Digital Output
RS485 output, Modbus-RTU protocol
Alarm output
Normally open contact output, 250V AC/30V DC, 5A
