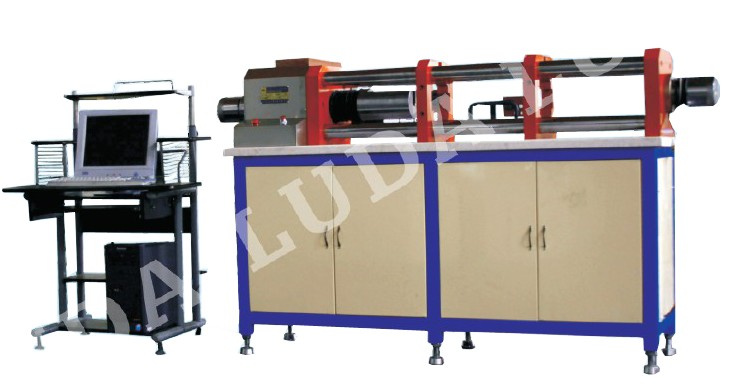

Ldcj Series Microcomputer-Controlled Tensile Stress Relaxation Testing Machine
| Price: |
US $ 20000/Piece |
| Trade Terms: |
FOB,CIF |
| Min Order: |
1/Piece |
| Pay Type: |
T/T |
Product Specifications
| Prod Model: |
LDCJ-300 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Place Of Origin:Zhejiang, China: |
Brand Name:Luda |
| Model Number:Ldcj-300: |
Power:Hydraulic |
| Usage:Tensile And Tensile Stress: |
Control:Computer Control |
| Test Kind:Strand Wire Tension: |
Max. Tensile Spece:1850mm |
Product Description
This product is suitable for the measurement of relaxation properties of metallic materials at room temperature, which complies with GB/T10120-96 "Test Methods for Stress Relaxation of Metallic Materials". The machine adopts automatic microcomputer servo control, which allows high-precision, wide-range and multi-function servo control. The test system can automatically acquire the stress relaxation function of specimens, and allows automatic processing, storage and printing of experimental results.
|
Model specification |
LDCJ-300 |
|
Maximum test force(kN) |
300 |
|
Effective measurement range |
(no subsection in full-measuring range) |
|
Load indication accuracy |
Better than ±1% of the indicated value |
|
Load resolution |
9N |
|
No subsection in full measuring range,load resolution remains the same |
|
Displacement indication accuracy |
Better than ±0.5% of the indicated value |
|
Loading speed(mm/min) |
0.01-40(or 50)arbitrarily settable |
|
Screw stroke(mm) |
80-100 |
|
Test space(mm) |
maximum tensile spacing between left and right chucks:1850 |
|
Supply power |
1.5kW |
|
AC220V±10% 50HZ |
|
Overall dimensions(mm) |
1950×550×1015 |
|
Weight(kg) |
1200 |
