LDM-25 High Precision Wire Diameter Measuring Gauge

LDM-25 High Precision Wire Diameter Measuring Gauge
Supplier: Changzhou Meditech Trading Co., Ltd.
Price: US $ 1700/Set
Min Order: 1/Set
Quantity::
Trade Terms: FOB
contact supplier

Product Specifications

Prod Model: MED-L006
Markets: South America,Eastern Europe,Southeast Asia,Eastern Asia,Western Europe
Type: Standard
Measure Method: Automatic
Material: Stainless Steel

Product Description

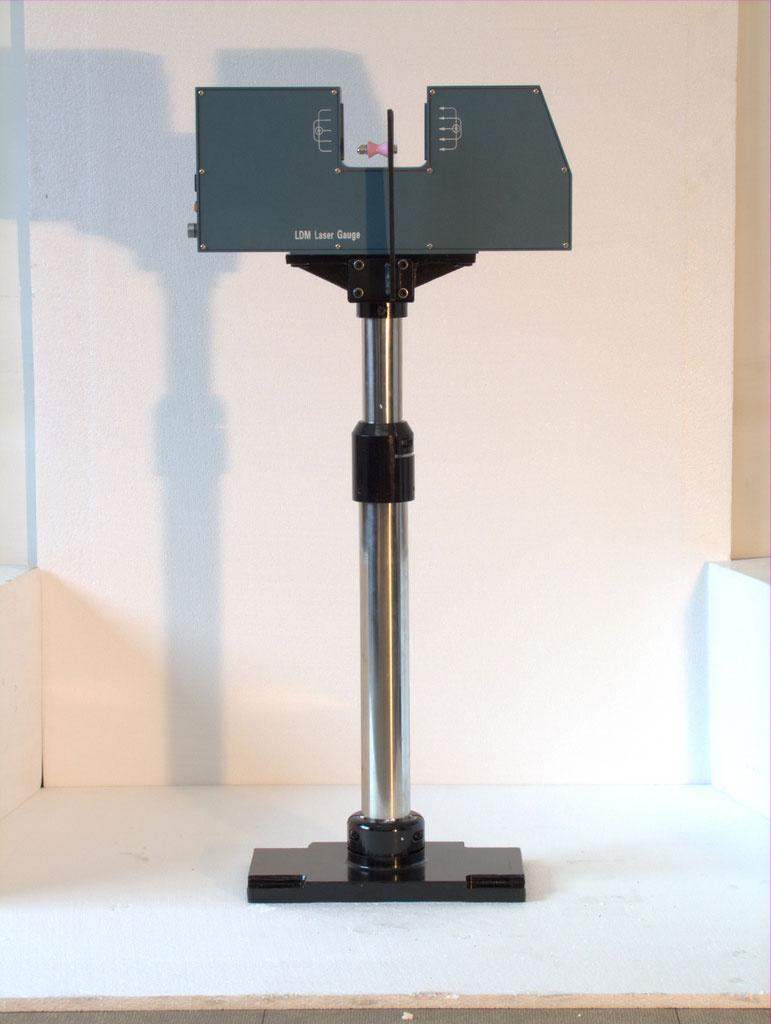

LDM-25 high accuracy laser diameter measurement is the high-accuracy installment that uses the laser scan to carry on the no-contacts on-line measurement. It is mainly used in measuring of outer diameter and adjusting the extruder screw or traction speed, to control the outside diameter. It is applicable to measure and control the diameter of metal wires, glass, pipes, wire and cable, etc.

It can also be applied to the outer diameter of workpiece and size measurements.

1. Technical parameters

Model Measuring Range Resolution Accuracy
LDM-25 0.1-20mm 0.001

2. The performance indicators

Measurement: Laser scanning

Laser: Visible red semiconductor laser

Laser output power: <2mW

Operating voltage: ~ 220V ± 15% 50 - 60Hz

Operating temperature: -10 ~ 40 ° C

Humidity: <85% RH

Work mode: Continuous

Power consumption: <30W

Dimensions:

LDM25/LDM50 Gauge head: 461mm(length)× 80mm(wide)× 200mm(high)

Support: 350mm× 200mm× (700-1000)mm

Height of central measuring position: 900-1200mm

3. Characteristics

1). Can be connected PLC, industrial computer.

2). RROFIBUS-DP can be allocated and MODBUS converter and PLC, IPC Connect.

3). Can be equipped remote controller DDC-3, DDC-5, on the extruder and automatic feedback control to control the tolerance, improve product quality, reducing consumption.

4. Display Controller (Model: DDC-3, DDC-5)

1). It be used to remote display and control.

2). Applicable to DC motors, VVVF motor.

3). The controller can control the speed of extruder or the tractor according to the diameter tolerance.

4). Can simultaneously measure the outside diameter.

Signal distance: >500m

Output voltage: ± 10V

With RS485 It can connect to PLC industry controlling computer

The PROFIBUS-DP or MODBUS

Can be selected.

External dimensions: 164mm× 85mm× 280mm (Model: DDC-3)

100mm× 100mm× 120mm (Model: DDC-5)

Installation hole size: 152mm× 6mm (Model: DDC-3)

90mm× 90mm (Model: DDC-5)
Changzhou Meditech Trading Co., Ltd. is specialized in manufacturing and exporting medical apparatus and laser diameter guages.

For medical apparatus, our products are spinal system, Tibia interlocking Intramedullary nail system, plates system, screw system, instrument system and medical drill. With CE&ISO13485, our medical apparatus has been exported to Argentina, Chile, Columbia, Mexico, Nicaragua, India, Thailand, Turkey, Eygpt.

For laser diameter gauges, with the features of high accurancy and good price, we have customers in Poland, South Africa, Spain, Russia and so on.

"Mutual benefit" is our final aim. We are looking forward to cooperate with you.
