Product Specifications
| Prod Model: |
LDM-50XY |
| Markets: |
Eastern Europe,Eastern Asia |
| Type: |
Standard |
| Measure Method: |
Automatic |
| Material: |
High-speed Steel |
Product Description

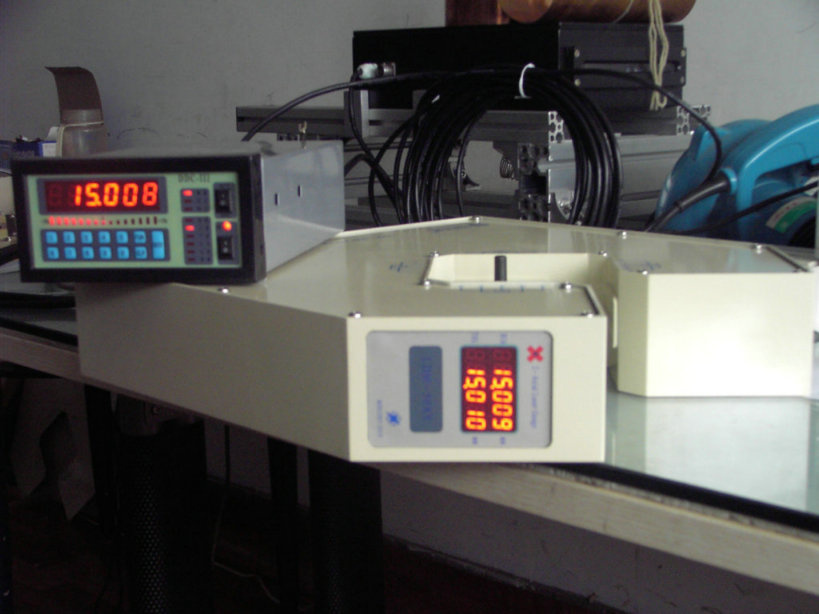

LDM50XY double-axis high accuracy diameter gauge is the high-accuracy installment that uses the laser scan to carry on the no-contacts on-line measurement. It (namely X axis and Y axis) simultaneously measure the diameter in two directions.
It is applicable to measure and control the diameter of metal wires, glass, pipes, wire and cable, etc. It is overcomes the shortcomming of bi-directional measurement. The display unit can simultaneously show the diameter mean value and roundness of wire and pipe.
1. Technical parameters
Model
Measuring Range
Resolution
Accuracy
LDM-25XY
0.1-20mm
0.001
± 0.02%× (Reading)± 0.001mm
LDM-50XY
0.2-45mm
0.001
± 0.02%× (Reading)± 0.002mm
2. The performance indicators
Measurement: Laser scanning
Laser: Visible red semiconductor laser
Laser output power: <2mW
Operating voltage: ~ 220V ± 15% 50 - 60Hz
Operating temperature: -10 ~ 40 ° C -10~40° C
Humidity: <85% RH
Work mode: Continuous
Power consumption: <30W
Dimensions: LDM25XY/LDM50XY Gauge head: 400mm× 400mm× 80mm
Support: 350mm× 200mm× (700-1000)mm
Height of central measuring position: 900-1200mm
3. Characteristics
1). Can be connected PLC, industrial computer.
2). RROFIBUS-DP can be allocated and MODBUS converter and PLC, IPC Connect.
3). Can be equipped remote controller DDC-3, DDC-5, on the extruder and automatic feedback control to control the tolerance, improve product quality, reducing consumption.
4. Display Controller (Model: DDC-3, DDC-5)
1). It be used to remote display and control.
2). Applicable to DC motors, VVVF motor.
3). The controller can control the speed of extruder or the tractor according to the diameter tolerance.
4). Can simultaneously measure the outside diameter, roundness, runout, including oval diameter. It can be used for shaft testing, the detection of rubber roller, honeycomb ceramic detection.
Signal distance: >500m
Output voltage: ± 10V
With RS485 It can connect to PLC industry controlling computer
The PROFIBUS-DP or MODBUS
Can be selected.
External dimensions: 164mm× 85mm× 280mm (Model: DDC-3)
100mm× 100mm× 120mm (Model: DDC-5)
Installation hole size: 152mm× 6mm (Model: DDC-3)
90mm× 90mm (Model: DDC-5)
Changzhou Meditech Trading Co., Ltd. is specialized in manufacturing and exporting medical apparatus and laser diameter guages.
For medical apparatus, our products are spinal system, Tibia interlocking Intramedullary nail system, plates system, screw system, instrument system and medical drill. With CE&ISO13485, our medical apparatus has been exported to Argentina, Chile, Columbia, Mexico, Nicaragua, India, Thailand, Turkey, Eygpt.
For laser diameter gauges, with the features of high accurancy and good price, we have customers in Poland, South Africa, Spain, Russia and so on.
"Mutual benefit" is our final aim. We are looking forward to cooperate with you.
