Leadsun 150kv 0.5A High Voltage Rectifier Diode Block

Name: Leadsun 150kv 0.5A High Voltage Rectifier Diode Block
Brand: china-manufacturer-directory.com
SKU: 699828322
Availability: InStock
Rating: 4.8 (101 reviews)

Supplier:	Anshan Leadsun Electronics Co., Ltd.
Price:	US $ 16.66-26.66/Piece
Min Order:	100/Piece
Quantity::
Trade Terms:	FOB

Product Specifications

Prod Model:	150KV 0.5A
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
LHB:	2203525
Tj:	-40oc~+120oc
Used:	Electrostatic Cleaning
Feature:	More Sizes Available
Manufacturing Technology:	Discrete Device
Material:	Element Semiconductor
Type:	P-type Semiconductor
Package:	Through-Hole
Application:	Rectification
Model:	150kv 0.5A
Brand:	Leadsun

Product Description

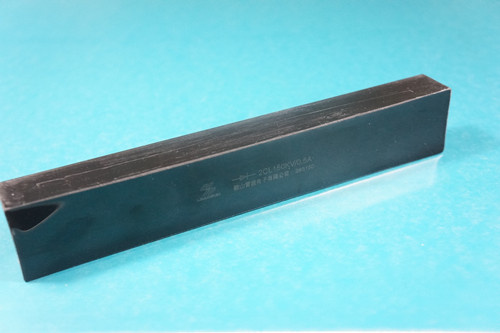

2CL150KV/0.5A High voltage rectifier blocks using high reliable mesa structure and diffusion craftwork, epoxy resin molded in compact structure.
Feature:
Avalanche characteristic
More sizes available
vacuum molded, non-corrosive epoxy resin case
Tj:-40ºC--+120ºC
Application:
Electrostatic cleaning
High Voltage testing equipment
General purpose high voltage rectigier
Extreme(Absolute Maximum Rating)

Item	Symbol	Unit	Conditions	Voltage
Repetitive Peak Reverse Voltage	VRRM	KV	Ta=25ºC IR=0.5μA	150.0
Peak Working Reverse Voltage	VRWM	KV	Ta=25ºC IR=0.5μA	150.0
Non-Repetitive Peak Reverse Voltage	VRsM	KV	Ta=25ºC IR=0.5μA	165.0
Average Forward Current	IO	A	50Hz Half-sine Wave , Resistance load in oil @Tbreak=50ºC	0.5
Surge Forward Output Current	IFSM	A	0.01S @ Half-Sine wave 50Hz	10
Operating Ambient Temperature	Ta	ºC		-40~+120
Junction and Storage Temperature	T stg	ºC		-40~+120

Electrical Characteristics (Ta=25ºC)

Forward Peak Voltage	VFM	V	@Ta=25ºC IF=0.5A	180.0
Peak Reverse Current	IRRM1	μA	@ Ta=25ºC VRM=VRRM	5.0
Peak Reverse Current	IRRM2	μA	@ Ta=100ºC VRM=VRRM	50.0

This is leadsun electronics from Anshan, China. Our company is specializing in designing and producing types of high voltage components, such as high voltage diodes, high voltage bridge rectifier, high voltage silicon assembly, special high voltage modular, multiply voltage modular and high frequency high voltage power supply. These products are widely applied for electrostatic cleaning, medical X-ray machine, CT, MR, dehydrating of crude oil, broadcast launching, laser power supply, high voltage modular, high voltage test equipment, TV/display FBT, air purifier, power supply, etc.
