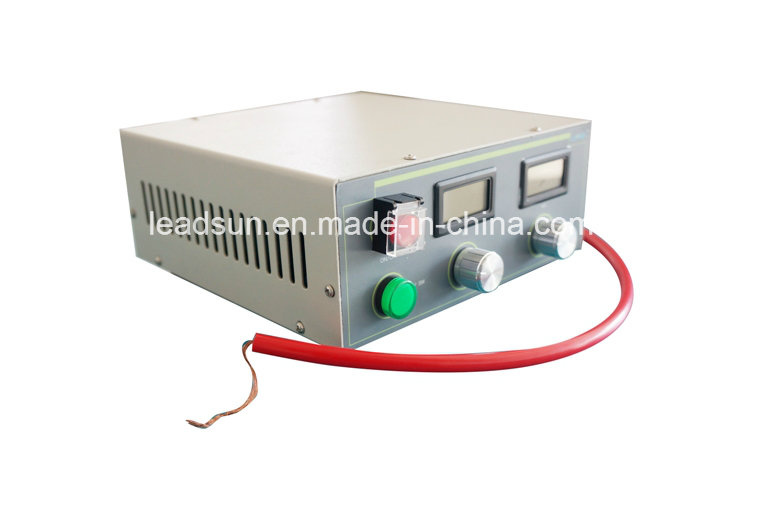

Leadsun High Voltage Constant Current Power Supply 50kv/1mA

Name: Leadsun High Voltage Constant Current Power Supply 50kv/1mA
Brand: China-Manufacturer-Directory.com
SKU: 698983622
Availability: InStock
Rating: 4.7 (84 reviews)

Supplier:	Anshan Leadsun Electronics Co., Ltd.
Price:	US $ 806.45-1290.32/Piece
Min Order:	1/Piece
Quantity::
Trade Terms:	FOB

Product Specifications

Prod Model:	50KV/1mA
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
LHB:	220100220
Ambient Temperature:	-20oc~50oc
Input Voltage:	24V DC
Cooling:	Air Cooling
Output Type:	Single
Warranty:	1 Year
Output Power:	1 - 50W
Connection Mode:	Series Switching Power Supply
Voltage Regulating Mode:	Width Modulation Type
Power Supplying System:	Terminal Power Distribution Equipment
Starting Mode:	Soft Start
Brand:	Leadsun

Product Description

Product Description
High Frequency High Voltage SX-RAY series LS50KV/1mA

Item	Parameters	Remarks
Input voltage	24V DC	Wave less than 10%
Rated power	50W	Full load, output Umax, Imax
Rated output voltage	50kV
Rated output current	1mA
Relative voltage control accuracy	0.5%	*Uo=80%Umax**
Absolute voltage control accuracy	1.5%	*Uo=80%Umax**
Voltage/temperature coefficient	20V/1K
Voltage program accuracy	Better than 5%
Voltage output range	0-50KV adjustable
Output limiting current	1.0mA
Control response time	Better than 50mS
Ambient temperature	-20 ~ 50 C
Ambient humidity	10%-90% no atomization
Cooling	Air cooling
Starting	Soft start
Constant voltage control mode	PWM
Current control mode	Constant current of average value Peak value testing	Within 100nS peak value testing, cut off and restart automatically
Working frequency	40kHz
Exchanging frequency	Better than 70%	Output voltage from 50%-75%,efficiency 80%-90%
Voltage regulation rate	0.5%
Current and voltage program mode	By potentiometer OR 0~5V voltage
Monitor	0~5V voltage corresponding to 0 to full scale
Dimension	220220100 mm LBH

Packing & Shipping
Packing: 200 pcs in one bag, 25 bags in one carton

Payment & Shipping Terms
1.We can ship the products all the world.
2.DHL, FedEx, TNT, UPS, EMS, China Post, Hongkong Post are all available.
3.The item will be sent out with 7days after receiving the payment.
4.We accept L/C, T/T, Western Union payment.
5.Please make sure your delivery address and contact telephone number are correct when you bid the item.
6.You can track the situation of your product on website after they are shipped out.

Company & Services
· Leadsun focus on OEM,ODM and custom service, we have experienced engineers to supply the technical supports including design,operation, adjustment and failure analysis.
· Leadsun has Latest Standard product assembly series, including worldwide popular product series, and special customized series. There are Thousands of Types and Models for your choosing
· Leadsun technical center record every order and product characteristics; sales department focus on market developmenttendency, will supply you Full Service.
· Leadsun take quality as foundation of success, we feel honored to supply customer requried products and customer success. We keep focusing on product Innovation and Development to stay ahead in the industry.
· Year 2014, Leadsun will move to new industrial center, new platform, new hope,dream starts here.
For more information,please contact me.
We can also customize the products as your need.

Contact Us
ADD:No.757 Laser Industrial Park,High-tech center, Anshan, Liaoning, .China
TEL:+86-412-2660889 2666636 5237711
FAX:+86-412-2663889 5237722
ANSHAN LEADSUN ELECTRONICS CO., LTD.

This is leadsun electronics from Anshan, China. Our company is specializing in designing and producing types of high voltage components, such as high voltage diodes, high voltage bridge rectifier, high voltage silicon assembly, special high voltage modular, multiply voltage modular and high frequency high voltage power supply. These products are widely applied for electrostatic cleaning, medical X-ray machine, CT, MR, dehydrating of crude oil, broadcast launching, laser power supply, high voltage modular, high voltage test equipment, TV/display FBT, air purifier, power supply, etc.
