Product Specifications
| Prod Model: |
TPL12*6-60W |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Light Source: |
LED |
| Housing Material: |
Acrylic |
| Emitting Color: |
Cool White |
| Dimmable: |
Without Dimmable |
| Appearance: |
Square |
| Type: |
Ceiling |
| Certification: |
RoHS |
| Voltage: |
100-240V |
| Beam Angle: |
110 |

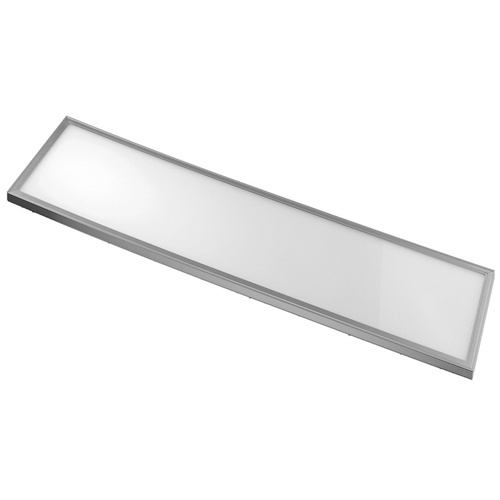

Product Description
Model: TPL12*6-60W Light source: SMD 3528 led
Housing material: Acrylic Led quantity: 432 pcs
Base material: Aluminium alloy Input voltage: 100-240V AC
Frame color: silver/white Size: 1195*595*10mm
Dimmable: optional Beam angle: 110
Standard: TUV, CE, RoHS Shape: square
Luminous efficacy: 85LM/W Ra: 80
Color temperature: 3000K/4000K/6000KAdvantage:
1. TUV/GS+Mark+CE+ERP+RoHS driver inside (test report available upon request)
2. LM80 test passed led light source (test report available upon request)
3. Customlised design and manufacturing
Features
1. Energy-saving
2. Exquisite appearance, uniform & soft light
3. Universal input voltage: 100-240V AC
4. Durable construction & easy installation
5. Instant start, no flickering, no humming, no RF interference
6. With heat protection system, can work under unstable voltage
7. Special circuit design can avoid the breakdown caused by single faulty LED
8. Compliant with CE, TUV standard.
9. Environmental-friendly, lead-free, compliant with RoHS.
| Model | Power | Size | Voltage | LED | LED Qty | CCT | Ra | Lumens | Frame Color | Weight(KG) | Inner carton | Master caron |
| TPL3*3-20W | 20W | 295*295*10mm | 100-240V AC | SMD3528 | 144 | CW5750K±250K WW2900K±100K NW4100K±100K | 80 | 1700lm | Silver/White | 0.9 | 320*33*365mm | 360*335*385mm(10PCS) |
| TPL6*3-20W | 20W | 595*295*10mm | 100-240V AC | SMD3528 | 144 | CW5750K±250K WW2900K±100K NW4100K±100K | 80 | 1700lm | Silver/White | 1.73 | 620*33*365mm | 635*285*385mm(8PCS) |
| TPL6*6-36W | 36W | 595*595*10mm | 100-240V AC | SMD3528 | 216 | CW5750K±250K WW2900K±100K NW4100K±100K | 80 | 3060lm | Silver/White | 3.32 | 620*33*665mm | 635*185*685mm(5PCS) |
| TPL6*6-40W | 40W | 595*595*10mm | 100-240V AC | SMD3528 | 216 | CW5750K±250K WW2900K±100K NW4100K±100K | 80 | 3060lm | Silver/White | 3.32 | 620*33*665mm | 635*185*685mm(5PCS) |
| TPL12*3-40W | 40W | 1195*295*10mm | 100-240V AC | SMD3528 | 264 | CW5750K±250K WW2900K±100K NW4100K±100K | 80 | 3060lm | Silver/White | 3.36 | 1220*35*380mm | 1235*190*400mm(5PCS) |
| TPL12*6-60W | 60W | 1195*595*10mm | 100-240V AC | SMD3528 | 432 | CW5750K±250K WW2900K±100K NW4100K±100K | 80 | 5100lm | Silver/White | 6.91 | 1220*35*655mm | 1235*85*675mm(2PCS) |
