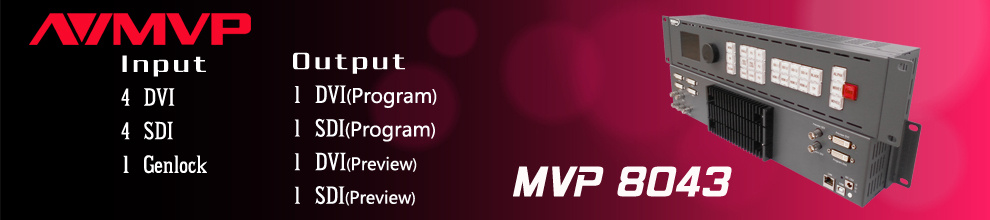

LED LCD Video Wall Controller Processor MVP8043 Support Genlock

Product Specifications

Prod Model:	MVP8043
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Input:	DVI,Sdi
Output:	Program and Preview DVI Sdi
Type:	Video Wall Controller Multiviewer

Product Description

MVP8043 Broadcast Multiviewer Description
MVP8043 supports preview output as 8 display windows multi-viewer for its 8 video and graphic inputs, which inputs by SDI and DVI, DVI is HDMI compatible, MVP8043 supports program outputs for user to seamless take out one of the eight inputs. As built based on high speed FPGA and video graphic capture bus. MVP8042 is also capable of multiple stack up to do seamless mapping b an external gunlock.
With its 4SDI inputs to be compatible of SD/HD/SDI, and 4 DVI inputs to be compatible of DVI graphic, HDMI video, MVP8043 is defined a creative tool for meeting, sports, concerts, wedding and brand promotion.
MVP8043 offers multiple operation and control possibilities by local front panel, remote control panel and software control by USB and TCP/IP, make it flexible to integrated into live application

MVP8043 Broadcast Multiviewer Features;
U 8 display windows multiviewer
U 4SD/HD/3G SDI inputs
U 4DVI(HDMI) inputs
U Program and preview outputs by DVI and SDI
U Multiple sync with Genlock
U Multiple seamless mapping by stack up
U Remote control by USB, TCP/IP and CP3096 control panel

MVP8043 Broadcast Multiviewer inputs
U 4*DVI(compatible with HDMI 1.3)
U 4*SDI

MVP8043 Broadcast Multiviewer Video connectors
U 4*BNC
U 4*DVI-I

MVP8043 Broadcast Multiviewer SYNC input

U 1*Genlock with 1*BNC connectors

MVP8043 Broadcast Multiviewer main output(program)
U 1*DVI with DVI-I Connector
U 2*SDI with BNC Connector


MVP8043 Broadcast Multiviewer Preview output
U 1*DVI with DVI-I Connector
U 2*SDI with BNC Connector

MVP8043 Broadcast Multiviewer Control
Local front control, remote control panel CP3096, Remote USB, Ethernet
