LED P10 Indoor SMD 3 in 1 LED Display Manufacturers and Supplier

Name: LED P10 Indoor SMD 3 in 1 LED Display Manufacturers and Supplier
Brand: china-manufacturer-directory.com
SKU: 749230795
Availability: InStock
Rating: 4.9 (37 reviews)

Supplier:	Shenzhen Mountain A-Li Group Electronic Technology Co., Ltd.
Price:	US $ 500-550/Square Meter
Min Order:	1/Square Meter
Quantity::
Trade Terms:	FOB

Product Specifications

Prod Model:	P10mm
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Module Size:320mm*160mm:	Cabiet Size:960mm*960mm
Display Type:	LED Video Display
Tube Chip Color:	Full Color
IP Rating:	IP43
Application:	Advertising
Pixel Pitch:	10mm
Display Function:	Video Display
Scanning Mode:	1/4 Scan
Certification:	FCC,ISO9001
Pixel Density:	10000 dot / m²
Average Power Consumption:	300W / m²
Pixel Configuration:	SMD 3in1

Product Description

The specifications of modules

Items			Parameter
Product Model			p10 full color module
Module size			320mm*160mm
Pixel pitch			p10 mm
Pixel density			10000dots/m2
Pixel configuration			RGB 3in1
Module resolution			32dots(W)*16dots(H)
Module maximum power consumption			15W
Module Thickness			14CM
Module Weight			0.45kg
Driving method			Constant Current Driving
Scanning method			1/4 scan
Interface			HUB75
Brightness			≥1500cd/m2
The specifications of cabinets

Cabinet size			960mm*960mm
Module quantity			18
Power supply			5V/40A 5V/60A
Cabinet resolution			96*96dots
Optimal viewing distance			10M~50M
Optimal viewing angle			160°(W) 120°(H)
RHWorking temperature			Work :-20ºC~+50ºC
System operating humility			10%-95%
The specifications of power supplier

Operating Voltage			AC220V±10%
Average power consumption			150W/H
Maximum power consumption			≤900W/
Electric current			≤20mA(single LED)
The specifications of control card
Control Panels			Pentium4 or above
Operating system			WIN98/2000/NT/XP
Control model			Synchronization control
The specifications of the main technical parameters

Driving device			IC Constant Current Driving
Refresh rate			≥400HZ
Grey scale			RGB Each 256, can display 16.7M colors)
MTBF			≥9000hours
Power switch			Automatic Switch
Display Mode			800600/1024768/1280*900

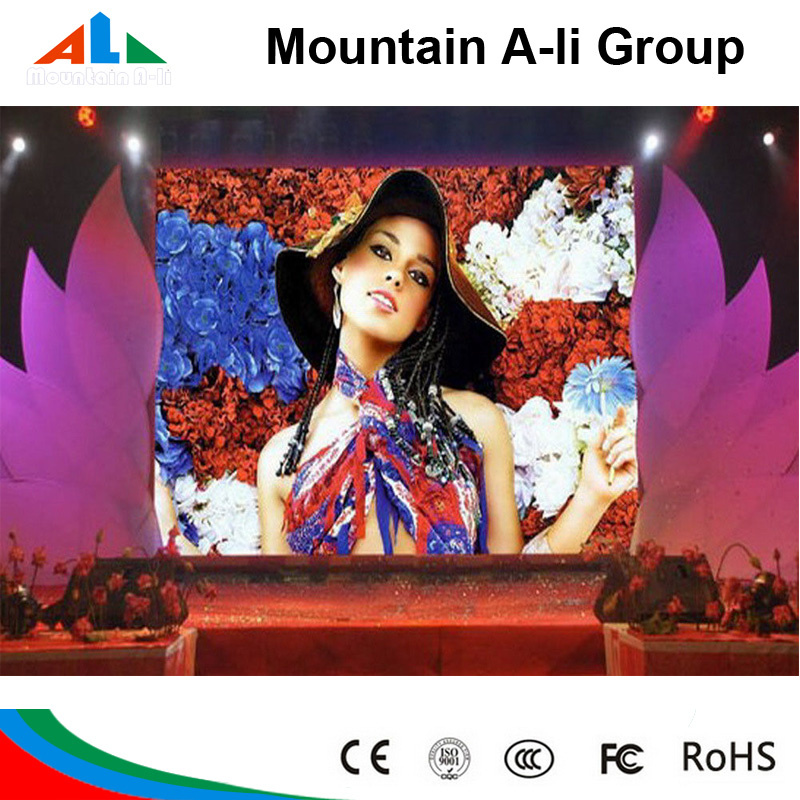

Indoor p10 led screen SMD 3 in 1 320mm*160mm

Shenzhen Mountain A-Li Group Electronic Technology Co., Ltd Major In LED Modules and LED Display. Indoor LED Display have P3 P4 P5 P6 P7.62 P10 (Have difference cabinets types ). Outdoor have P6 P7 P8 P10 P16 (Have difference cabinets types ), LED Modules have single color, double color and full color, LED Display Have Indoor LED display, Outdoor LED display, Outdoor LED screen. Indoor LED screen, LED video display, LED Video screen, LED Advertising screen, LED Advertising Screen.

Features:

1) With good lightening accordance and no mosaic

2) LED advertising board can play different formats of image files, flash, WAV/MIDI, video signal from TV, video signal from video and other equipment

3) Different video frequency can be changed freely at the same time, and the image can be enlarged and reduced

4) High brightness, and can be adjustable, meets the need of changing requirement of customer in environment

5) Uses real pixels rather than virtual pixels, better viewing effect

Applications:

LED advertising board wide applied in stadiums, advertising, banks, securities exchange, stations, shopping malls, postal offices, schools, monitoring, restaurants, entertainment, enterprises etc
