Product Specifications
Prod Model: |
DM96-E4 |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Size: |
96*96 |
Display Mode: |
Digital |
Power Source: |
AC and DC |
Theory: |
Electronic Meter |
Installation: |
Portable |
Connection Type: |
RS485 |
Maximum Scale: |
9999 |
Product Description

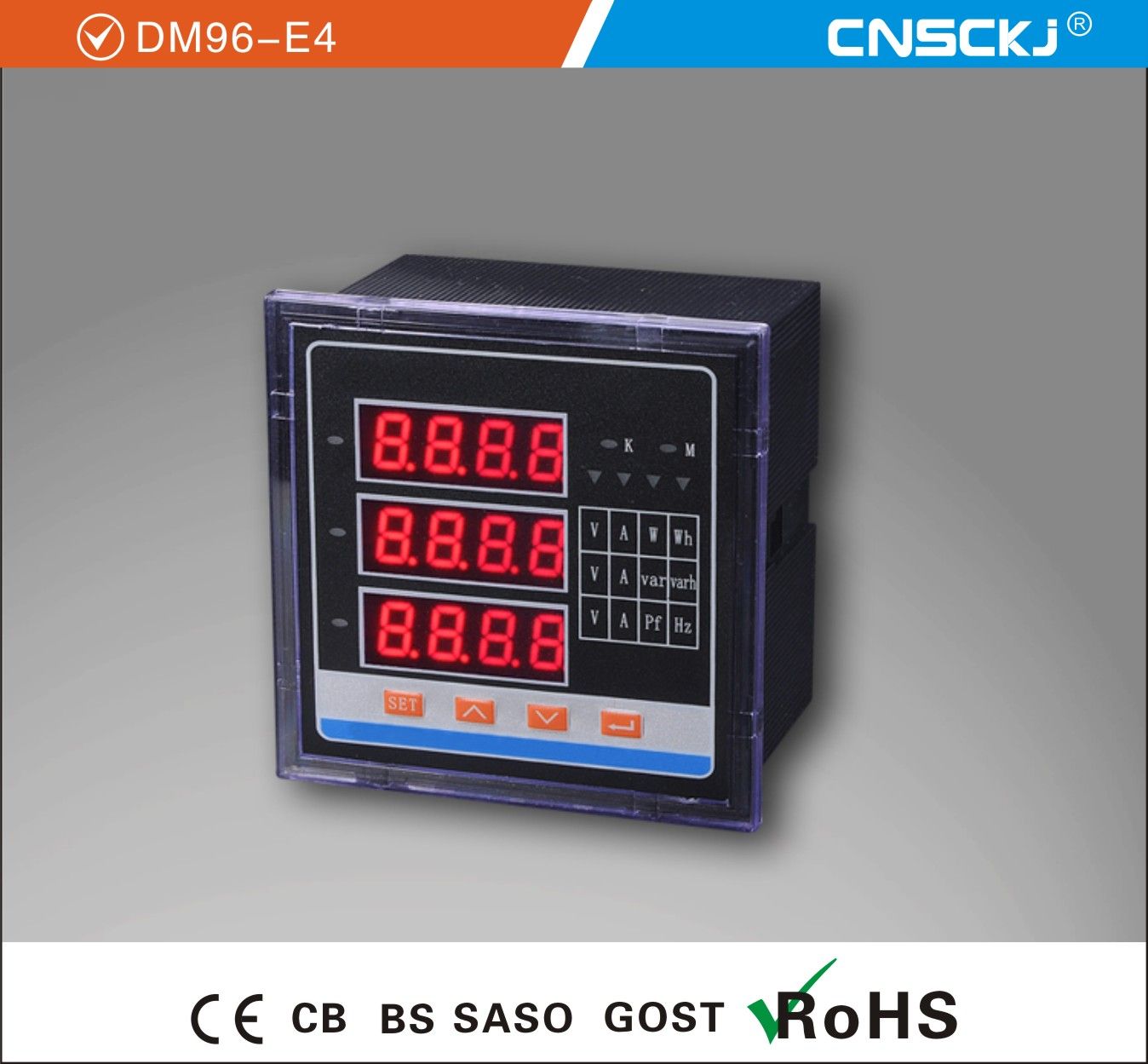

Multi-Functional Digital panel Meter
Model: Multi-Function Power Instrument
Size: Panel dimension: 96× 96mm
Hole cutout dimension: 91× 91mm
Features: Adopt 4 rows LED to in charge of showing the commonly used electric consumption parameter by switching over. Under rated voltage reference frequency. And cosΦ =1.0 when the Load operating current is 0.001Im. The electric energy meter can start and continous to measure electric energy. When add 115% rated voltage, current loop will disconnect and have no current, and the instrument have no cumulatire electric energy and pulse output.
Technical specification parameter:
1. Input signal
Electric power network: Single-phase three-phase_three-wire three-phase_three wire
Input voltage
Rated value: AC 100V 220V 380V
Over-load: 1.2times rated value(continued), 2 times rated value (10S)
Watt-loss: 0.1VA(pieces/per)
Impedance: 200K
2. Auxiliary power: AC\DC 80-270 V
Watt-loss: 5VA
Specifications
1. CE certificate,
2. Experienced digital meter manufacture,
3. Products already exported to Singapore, USA, Peru, czech etc.
ype Capability |
DM96-E4 |
DM96-E3 |
DM96-E |
DM96-EY |
Importation
Measure
Show
|
network |
Three phase three wire, four ph four wire |
voltage |
Specified value |
Inform when ordering |
Over burden |
Persist:1.2%,moment:3/2s |
Insulation resistive |
|
dissipation |
>400k |
accurancy |
0.5%(pns test ,accurancy class 0.5%) |
current
|
Specified value |
Inform when ordering |
Over burden |
Persist:1.2%,moment:3/2s |
Insulation resistive |
<0.2VA |
dissipation |
<20M |
accurancy |
Pns testing (accurancy class 0.2Hz) |
Frequency |
40-60Hz,accurancy class 0.2Hz |
Power |
Active/inactive see in the power ,accurancy class 0.5% |
Electric energy measuring |
Plsitive and negative to calculate, accurancy class 0.5% |
power
|
Working range |
AC,DC80-270V |
Insulation resistive |
<5VA |
Output
|
Digital interface |
Rs485,modbus-RTU treaty |
The power pulse outputs(light insulation) |
2 road electric power bein exportation ,light insulation |
circumstance
|
Working circumstance |
10-60 ºC |
Store enbironment |
-20-70 ºC |
Security
|
Insulation |
Assistance power,input signal,output signal>1.5KV |
weight |
Input,output,power supplu to outer shell>500 Ω |
shape
|
Size(length,width ,height) |
12081208130 |
weight |
0.5Kg |
