Product Specifications
| Prod Model: |
NBDJS 321 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Size: |
300mm |
| Color: |
Red |
| Power: |
3W |
| Luminance: |
4000CD |
| Housing Material: |
PC |
| IP Rate: |
IP 65 |
| Byte: |
2 Bytes |
| Life-Span: |
>500,000hours |
| Waranty: |
2 Years |
| Certificate: |
CE RoHS ISO9001:2008 En12368 SGS |
| Type: |
Vehicle Traffic Light |
| Application: |
Junction,Intersection |

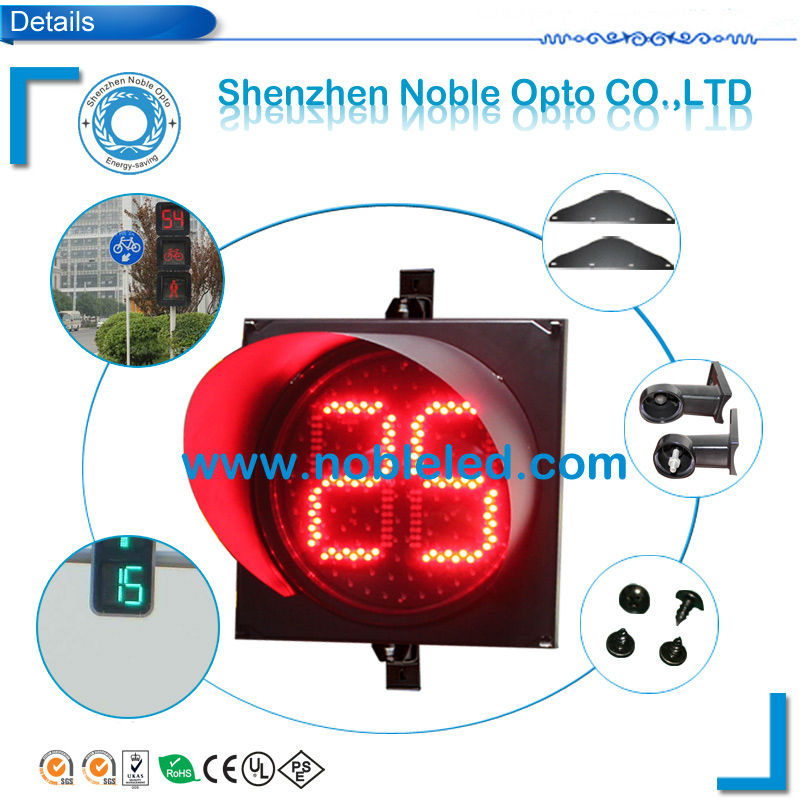

Product Description
Item Number: NBDJS321
Specification:
Shape: 300mm
High brightness LEDs with integrated optics
Moisture and dust tight seal(IP65)
Total Harmonic Distortion<20%(with PFC)
OperatingTemperature Range(optional): -30° C to 60° C
Angle: Avg. ≥ 30° Down ≥ 30°
Operating voltage Range: 12-24VDC/85-265VAC
Insulation Resistance: ≥ 2M
Life: 100, 000H
Housing material: PC(PMMA)
Benefits:
1. When Green Vehicle Signal is on, the Green Digits will be shown with count down digits, to show the number of seconds left before the Green Light is changed to be Yellow.
2. When Yellow Vehicle Signal is on, the Red and Green Digits will be shown with count down digits, to show the number of seconds left before the yellow Light is changed to be Red.
3. When Red Vehicle Signal is on, the Red Digits will be shown with count down digits, to show the number of seconds the car driver needs to wait before the Red Light is changed into Green.
4. The maximum number of two digits is 99 seconds. If the countdown time is set exceeding 99 seconds, the signal will not show the digit until it counts 99 seconds.
|
Gather to packing |
|
Modul |
housing materials |
quality |
G.W(Kgs) |
N.W(kgs) |
|
NBDJS321 |
pc |
2pcs |
5.7 |
4. |
