Product Specifications
| Prod Model: |
VSP 1314 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Product Description

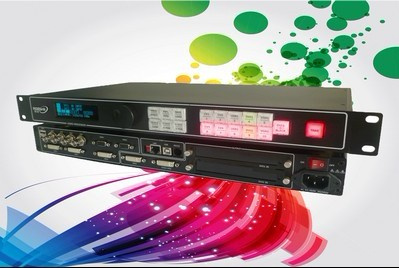

The VSP 1314 is a 3 layers seamless switcher and scaler that accepts a wide variety of video signals, including RGB computer video, HDTV, which support 4 composite(CVBS), 2 VGA, 2 DVI(compatible with HDMI1.3), 2 USB inputs and 1 DVI3(background window). It combines truly seamless, glitch-free switching with advanced scaling technology to meet the requirement of high quality, high resolution video presentation. Use the switching transition effects can offer a wide range of effects, such as full screen, dissolves and wipes with selectable durations as well as a cut, the video transition effect is only enable for the program output. Numerous seamless transition effects, triple windows operation, variety user configuration, pixel-to-pixel, multiple save memory and remote control ways for integration, VSP 1314 is designed to deliver advance capabilities to high-end presentation environments.
The VSP 1314 uses two editable input structures, one is CV1, CV2, VGA1, DVI1 and USB1 input, and the other is CV3, CV4, VGA2, DVI2 and USB2 input, in can process each input and monitor the image as well as the preview ouput, user can send each input to preview monitor, and after confirm, take the input to program output. VSP 1314 offers three outputs, each can be set as program output or preview output and connect to the back end display system, including projector, LED display and conference system.
The VSP 1314 is available to be controlled from the local color panel as well as through remote RS232, USB and Ethernet control. Local color panel matches green light(in the broadcast), yellow light(to be broadcast), red light(optional broadcast), and highlight OLED panel. Futher-more, presentation can be managed by using the RGBlink VSP 1314 window based software.
Features:
Multiple channels signal input. DVI=2(compatible HDMI1.3). VGA=2, CV(AV)=4. USB=2. Backgroundu input 1(DVI)
Multiple signals output, DVI=2. (programme output)VGA=1(preview output)
Multiple resolution output: 1920x1080x50Hz/60Hz
Output picture preview
Fade-in and fade-out, cutting, special effect switching
A key type blank screen switch (stage requirements)
Knob switching
U disk can plug and broadcast immediately (8G for each channel)
Infinite cascade splicing of many sets
Point to point splicing(3840x1080x60. Hz, 1920x2160x60Hz)
Max mosaic mode(4096x1152x60. Hz, 2048x2304x60Hz)
Seamless of Manysets. Synchronous cascade infinite splicing, without aberration and gap
Picture in picture, Picture outside Picture, Picture inside Picture
Double-picture work, the picture size and position can be adjust arbitrarily, not blank screen, fade-in and fade-out, the excessive special effects
Image eclosion function(eclosionwidth can be adjust arbitrarily)
3 picture(signal picture and multiple picture fade in fade out switching), screen position arbitrarily adjust
Programmed output(can set up same or independent output port)
10 button saving and calling mode
Red, green, blue can be adjust independent
Adjust output brightness
Adjust OLED interface brightness
Lock 18 button and knob of interface and human unlock
Set password to prevent lost
Adjust output contrast
Output testing dynamic picture more than 200
Playing list, timing switch
Play USB disk video, can set time and automatic switching for picture
It can install two sending cards (drawing type needn't open machine for convenient installing)
