Supplier: | Xiuyan Precision Instrument Factory |
---|---|
Price: | Negotiable/Piece |
Min Order: | 1/Piece |
Quantity:: | |
Trade Terms: | FOB,EXW,FCA |
![]() |

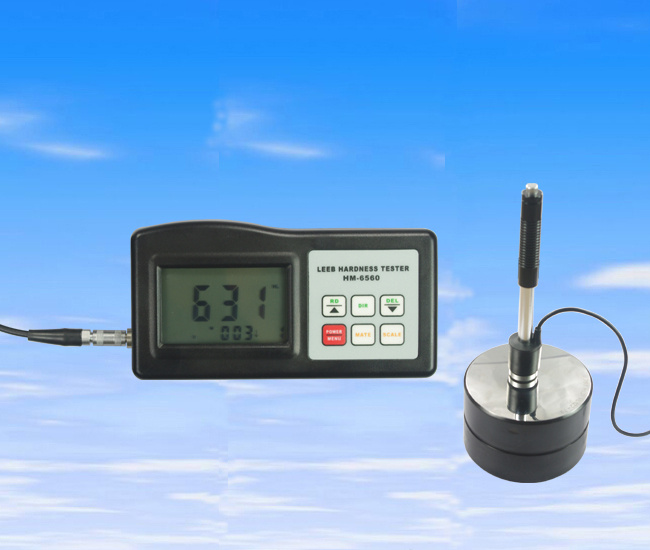

Prod Model: | HM6560 |
---|---|
Markets: | North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Measure Principle: | Leeb Measure |
Memory: | 240-1000 Groups |
Humidity: | 90% |
Type: | Leeb Hardness Tester |
Standard: | ISO |
Application: | Metal |
Product Model | Leeb Hardness tester MH320/TH160 |
Technical Specification | |
Hardness scale | HL, HRC, HRB, HRA, HV, HB, HS |
Memory | 240-1000 groups (Impact times: 32-1) |
Tensile strength U. T. S. range | 374~2652 MPa |
Standard Impact Device | D |
Optional Impact Devices | DC, D+15, G, C, DL |
Power | Rechargeable Li-ion Battery |
Continuous Working time | About 100h, (without printing and backlight) |
Charging time | 2.5~4 hours |
Operating temperature | 0~40 |
Humidity | 90% |
Size | 230× 90× 46mm |
Weight | 420 g (including Impact Device and printer) |
Standard delivery |
Main unit Impact Device type D Test block HLD Charger Brush Connecting cable IME certificate Instruction manual |
Optional accessories |
Printing paper Optional impact devices Optional support rings Dataview software |
Features | |
* Lane' s principle, portable measuring | |
* Optional 7 different devices and the impact of automatic identification | |
* The random on-site printing of data and statistics, histogram | |
* Available through the menu selection material, without setting can automatically recognize the impact of the direction of | |
* Limit default, the Tolerance alarm | |
* Direct display screen histogram, can be accessed by PC, to achieve measurement data archiving management and analysis | |
* Section measurements can be stored 240-1000 | |
* Full English menu, backlit display for easy operation |
