Product Specifications
| Prod Model: |
Hartip3000 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Attribute (E. G.: Size): |
Value (E. G.: 12 Inches) |
| Standard: |
ISO |
| Application: |
Metal |
| Type: |
Leeb Hardness Tester |
| Measuring Range: |
HLD |
Product Description

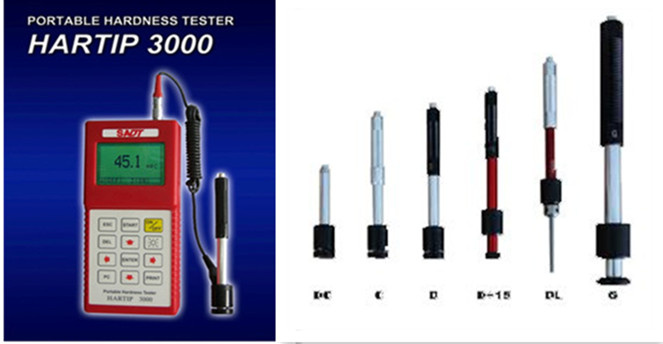

HARTIP 3000 is an advanced hand-held digital metal hardness tester with characters of high accuracy, wide measuring range and easy operation. It is suitable for testing the hardness of all metals especially on site for large structure/assembled components. Which is widely used in the industry of power, petro chemistry, air space, vehicle, machine and so on.
Details:
MEASURING METHOD
The measuring principle of HARTIP series hardness testers is defined as "the quotient of the impact body's rebound and impact velocity, multiplied by 1000. " An impact body with a Tungsten Carbide test tip is propelled by spring force against the test surface and then rebounds back. A permanent magnet is contained within the impact body. When it passes through the coil on impact device, it induces an electric voltage which is proportional to the velocity of the impact body.
KEY FEATURES
@High accuracy
@Light weight
@For all metallic materials
@Wide measuring range: Rockwell B&C, Brinell, Vickers, Shore and HL
@Automatic conversion to Brinell, Rockwell, Vicker and Shore
@Test in any directions
@Impact devices: D, DC, DL, C, D+15, E, G
@All impact devices interchangeable
@Menu operation
@Large LCD display with backlight
@RS232/USB interface to PC and micro-printer
@Automatic mean, max., min. Value display
@Data management software
@Comply to standard ASTM A956
Model |
HARTIP 3000 |
Principle |
Leeb hardness measurement |
Accuracy |
+/-0.5%@HL=800 |
Display |
Large graphic LCD with EL backlight |
Hardness scale |
HL/HRC/HRB/HB/HV/HS |
Measuring range |
HL200-960 / HRC19-70 / HRB13-109 / HB20-655 / HV80-1027 / HS31.9-102.8 |
Impact device |
D (standard)
DC/DL/C/D+15/E/G (optional) |
Materials |
9 common metal materials |
Memory |
960 data in 8 blocks |
Statistics function |
Average / Max. / Min. / value |
Interface |
RS232 to PC / Micro-printer |
Indicator |
Low battery |
Power off |
Auto |
Power supply |
1.5v AA battery x 4 |
Working environment |
-40~+80° C (main unit)
-20~+120° C (impact device) |
Standard |
ASTM A956 |
Dimension (mm) |
195x84x38 |
Net weight (g) |
550 |
Sino Age Development Technology, Ltd. (SADT), is a leading manufacturer / supplier of measuring and testing instrument, specialized in NDT and quality control fields. We have our own HARTIP series portable hardness testers from the very begining. Now our main products cover portable and bench type hardness tester, ultrasonic thickness gauge, roughness tester, handheld metallurgical microscope, portable vibration meter, optical tachometer, ultrasonic flaw detector and so on. Our main overseas markets are: USA, Canada, Germany, France, Netherlands, Finland, Italy, Czech Republic, Poland, Lithuania, Estonia, Serbia, Greece, Turkey, Australia, New Zealand, Korea, Taiwan, Singapore, Thailand, Indonesia, Malaysia, Vietnam, India, Pakistan, Iran, UAE, Egypt, South Africa, Mexico and Columbia, Peru and etc. All products supplied by SADT have excellent quality and competitive price with our best service.
