Many advanced industrial technologies have been applied to our products, such as pm gearless traction technology, vvvf speed regulating technology, energy feedback technology, microcomputer-based distributed data network control technology, intelligent door operator technology, ai group control management technology and variable-speed elevator technology.

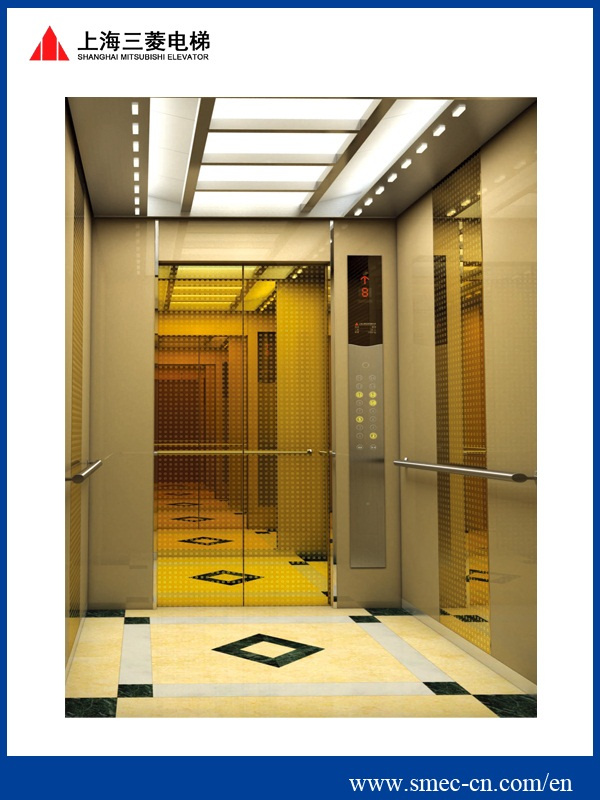

In addition, international advanced processing technologies and tools have been adopted to guarantee product's quality, such as surface-mount technology, laser-welding robot, instant formation workmanship of sheet metal piece on assembly line and high-accuracy digital control machine. A variety of car decoration solutions, and operation panel and elevator hall call with various innovative large LCD screen enables the interior and exterior of the elevator fashionable, elegant and harmonious with different building decoration styles.
Four great advantages
Environmental protection
--Pm synchronous gearless traction machine
Freedom
--Real small machine room design
Accuracy
--All digital control, space voltage vector control technique, and special varied-frequency system
Guarantee
--Hand wheel rescue, ipm protection device
| Item | Specifications | Remark |
| Rated Speed | 1 | 1.6 | 1.75 | 2 | 2.5 | |
| Raled Capacity(kg) | 630 | 630 | 630 | | | |
| 800 | 800 | 800 | 800 | 800 | When CWT is rear-mounted. |
| 800 | 800 | 800 | | | When CWT is side-mounted. |
| 1050 | 1050 | 1050 | 1050 | 1050 | When CWT is rear-mounted. |
| 1050 | 1050 | 1050 | | | When CWT is side-mounted. |
| 1200 | 1200 | 1200 | 1200 | 1200 | When CWT is rear-mounted. |
| 1350 | 1350 | 1350 | 1350 | 1350 | When CWT is rear-mounted. |
| 1600 | 1600 | 1600 | 1600 | | When CWT is rear-mounted. |
| TR(m)Max.Lift | 55 | 90 | 90 | 105 | 120 | |
| Max.Stops | 18 | 28 | 28 | 32 | 32 | |
| Operafion Mode | 1C-2BC,2C-SM21,2C-ITS-21,3C-ITS-21,4C-ITS-21,3C-ITS-2100,
4C-ITS-2100,5C-ITS-2100,6C-ITS-2100,7C-ITS-2100,8C-ITS-2100 | |
| Control Mode | VFG-L | |
| Specification Code | PO8W,PO8D | When capacity is 630kg. |
| P10,P10W,P10D | When capacity is 800kg. |
| P14,P14D | When capacity is 1050kg. |
| | P16W | When capacity is 1200kg. |
| | P18W | When capacity is 1350kg. |
| | P21 | When capacity is 1600kg. |
| Car Type | Deep Car | Specification code is P10D,P14D of door opening mode is two panel folding door. |
| Wide Car | Specification code is not P10d,P14D or door opening mode is center open. |
| Door Opening Type | 1D1G | |
| Door Opening Mode | Center Open Mode | Specification is not P08D,P10D,P14D. |
| Two Panel Folding Mode,Center Open Mode | Specification is P08D,P10D,P14D. |
| Door Open Direction | Open From Left,Open From Rigt | Door open mode is two panel folding mode. |
| Dynamic Power | 380V50Hz 3 Phases, 5 Lines | |
| Lighting Power | 220V50Hz Single Phase | |
| Min.Landing Helght | 2600 | |
| Landing Display Range | B1,B2,B3,B,G,M,-1,-2,-3,1,2,3,4,5,6,7,8,9,10,11,12,13,14,15,
16,17,18,19,20,21,22,23,24,25,26,27,28,29,30,31,32,33,34,
35,36,37,38,39,40,41,42,43,44,45,46,47,48 | |
Shanghai Mitsubishi Elevator Co., Ltd. was established on January 1st, 1987, and has a total investment of USD200 million and more than 1800 staff members.
Since 1993, Shanghai Mitsubishi has been No. 1 in China's elevator industry for 17 consecutive years. Since 2005, Shanghai Mitsubishi has set the record for single factory production in the world. Shanghai Mitsubishi has manufactured more than 250, 000 sets of elevators and escalators. Our sales value will reach 40, 000 units in 2010. Millions of people use Shanghai Mitsubishi elevators each day, and Shanghai Mitsubishi elevators can be found in 56 countries and regions around the world.
Shanghai Mitsubishi has served as the pioneer in the elevator technological innovation of China for more than two decades. We are pushing the boundaries of the advanced elevator technology. We maintain the state-of-the-art plant with the advanced manufacturing systems, with the world-class processing and testing equipment. Up to now, 40 series of products with a total of more than 200 kinds of specifications have been developed.
Our mission: To create more harmonious space of lifts
The enjoyment of going up and down - Shanghai Mitsubishi Elevator
