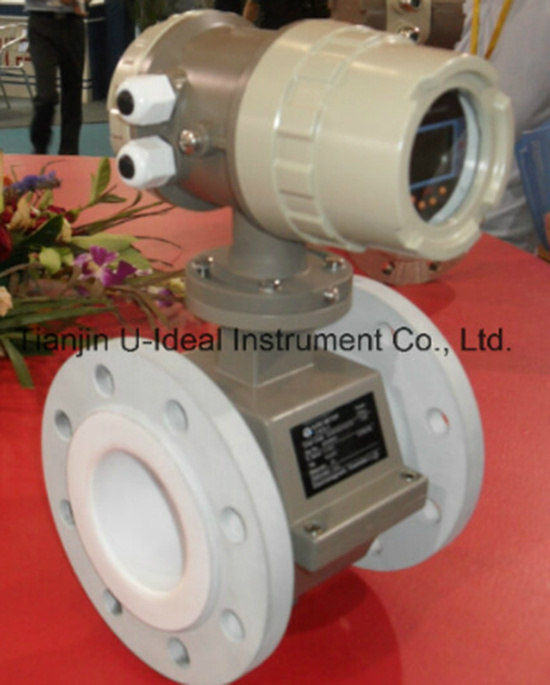

Lgu_H Electromagnetic Flow Meter- Flow Indicator
Product Specifications
| Prod Model: |
LGU_H |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Pressure: |
Suitable for Very High Pressure |
| Connection: |
Flange, Thread |
| Ex-Proof: |
Intrinsic Safety/ Explosion-Proof |
| LCD: |
Yes/No |
| Indicate: |
Flow Rate, Total Flow |
| Medium: |
Liquid, Air, Gas |
| Accuracy: |
?à0.2-0.5% |
| Main Application: |
Corrosive Liquid/Gas |
| Size: |
> DN500 |
| Sensor: |
Clamp-on/External |
| Type: |
Coriolis Mass Flow Meter |
| Measuring Media: |
Liquid |
| Measuring Principle: |
Electrical Principles |
Product Description
Our other related products: Level gauges, flow meters, pressure transmitters, indicators, industrial system.Welcome to contact if have enquiry.--------------------------------------------------------------------------------Thanks and Best wishes,Jenny ZhaoGeneral ManagerTianjin U-ideal Instrument Co., LtdAdds: Tianjin, China web: you-ideal.comTel: +86 22 88971536 Mobile: +86 130720308561 Feature and Application
Feature
The electromagnetic flow meter works according to Faraday Law, the
Flow meter is used to measure volumetric flow rate for inductive liquids and pulps. This type Electromagnetic flow meter has several characteristics.
The measurement is independence of the density, viscosity, temperature, pressure and conductivity of the measured fluid.
No moving parts in the measuring tube. No pressure loss. Low requirement for the upstream and downstream straight pipes.
All digital processing, high disturbing resistance, reliable measurement, high accuracy, wide measuring range up to 1500: 1;
The transmitter uses a 16 bits Embedded microprocessor, easy to operate, displays measured values in Chinese, has self-test and self-diagnosis function.
Dual direction measurement function. It can display forward direction flow rate and reverse direction flow rate. It can also display dual direction of current and frequency output, easy to record and save the signal for different direction.
Three inside counters can respectively display forward direction volume,
Reverse direction volume and the different volume of both directions.
It is possible to communicate via RS485 or RS232.
1.2 Main application range
It can measure volumetric flow rate for inductive liquids and pulps in the sealed pipes. The main application range can be found in the following fields: Petrol, chemical
Industry, power generation and distribution, mine, water treatment, paper industry, pharmaceutical industry, food and etc.
1.3 Application condition
Ambient temperature: Remote sensor: -25º C~+60º C
Compact version and transmitter (process temperature): -10º C~+60º CRelative humidity: : 5~100
1.4 Process condition:
Maximum Temperature for liquids
Compact version: 70º C
Remote version: PTFE lining 100º C, 150º C
Gather chloronorgutta lining 80º C, 120º C
Polyurethane lining 80º C
Conductivity of fluid: More than 5μ S/cm;
Pressure: Flange Type 4.0MPa, 1.6MPa, 1.0MPa
Design
2.1 Structure and version
Compact version
Remote version
3. Technical data
3.1 Measuring system
| Measuring principle | Faraday's law |
| Application range | Electrically conductive fluids |
| Measured Value | |
| Primary measured value | Flow velocity |
| Secondary measured value | Volume flow |
3.2 Design
3.3 Operating conditions
| Temperature | |
| Process temperature | Hard rubber liner: 5...+60°C |
| Polypropylene liner: 5...+90°C |
| PTFE liner: 5...+120°C |
Ambient temperature
(all versions) | Standard (with aluminum converter housing): |
| 20+60°C (Protect electronics against selfheating with ambient temperatures above 55°C) |
| Storage temperature | 20...+70° |
| Pressure | |
| EN 10921 | DN2200...3000: PN 2.5 |
| DN1200...2000: PN 6 |
| DN200...1000: PN 10 |
| DN65...150: PN 16 |
| DN10...50 : PN 40 |
| Other pressures on request |
| ISO insertion length | Optional for DN15...600 |
| ASME B16.5 | 1...24": 150 lb RF |
| Other pressures on request |
| JIS | DN10...1000 / 2...40": 10 K |
| Other pressures on request |
| Pressure drop | Negligible |
