Liquid Turbine Flow Meter with Hart (A+E 82FY)

Liquid Turbine Flow Meter with Hart (A+E 82FY)
Supplier: Shanghai AEAD Technology Co., Ltd.
Price: US $ 500/Piece
Min Order: 1/Piece
Quantity::
Trade Terms: FOB,CFR,CIF
contact supplier

Product Specifications

Prod Model: A+E 82FY
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Measuring Range Ratio: 1:10, 1:15, 1:20
Temperature: -20~+120 C (-4 to 248 F)
Material: Ss304L or Ss316L
Power Supply: 24V DC or Battery
Transmitting Distance: <1, 000m (3280ft)
Output Signal: Pulse, 4-20mA with Hart, RS485
Explosion-Proof: Exd II Bt6
Protection: IP65
Sensor: Tube/Flange
Type: Turbine Flow Meter
Accuracy: ?à0.2-0.5%
Measuring Media: Liquid
Measuring Principle: Mechanics
Main Application: Corrosive Liquid/Gas
Application: Industrial, Environmental
Size: Dn2-300

Product Description

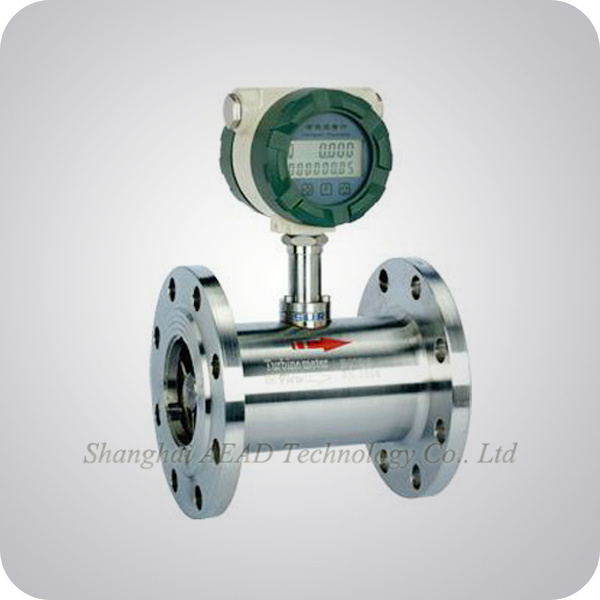

Liquid Turbine Flow Meter with Hart (A+E 82FY)
Overview
Turbine flow meter uses the mechanical energy of the fluid to rotate a "pinwheel" (rotor) in the flow stream. Blades on the rotor are angled to transform energy from the flow stream into rotational energy. The rotor shaft spins on bearings. When the fluid moves faster, the rotor spins proportionally faster.


Liquid Turbine Flow Meter Features

1) Accuracy reaching ±0.2%F·S.

2) Short-term repeatability reaching 0.05%~0.2%.

3) Output pulse frequency signal, and no zero drift and strong anti-interference capability.

4) 3-4kHz frequency signal , and high signal resolution.

5) Wide range with 1:20 for medium and large caliber, 1:10 for small caliber.

6) Compact and light structure, convenient installation and maintenance, great capability.

7) Suitable for measuring high pressure.

8) Various kinds of specified sensors.

This liquid turbine flow meter is widely used to measure full-piped and float volume type flwo meter. Applied for petrochemical, metallurgy, science and food.

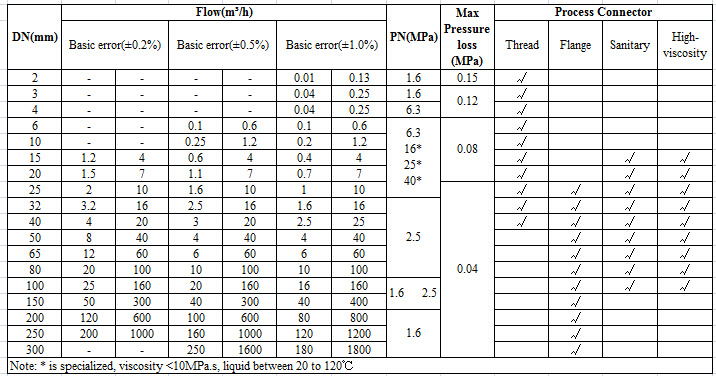

Technical Parameters


Model Selection

Model A+E 82F
Media Y liquid
Q gas (excluding stream)
DN xx
Structure Z integrate type
L split type
Senor Requirement 1 normal
2 wear-resistant
3 anti-corrosive
PN 1 1.6MPa
2 2.5MPa
3 4.0MPa
4 6.3MPa
5 16MPa
6 25MPa
7 40MPa
Connection G non-sealed pipe thread
R sealed thread
F flange
J clamp-on
K quick-release
Accuracy 1 0.2
2 0.5
3 1
Explosion-proof 0 N/A
1 Yes
Output 1 pulse
2 4-20mA
3 Hart
Power Supply 1 built-in battery
2 built-in battery and out 24VDC
3 out 24VDC
Material 1 304L
2 316L
Shanghai AEAD Technology Co., Ltd is a cooperation of Chinese and German technique which mainly performs in R&D, production and sales.

AEAD Technology was first founded in 2009 in Jiangsu, and established Shanghai Branch in May 18th, 2014. The new Shanghai factory would complete in DEC 2014, located in the Free Trade Zone. Before the business started in 2009, the General Manager Mr. R. H. Liu and Technical Director Mr. S. P. Zong had dedicated in instrumentation for more than 20 years. After 5 years development and achieving good reputation in domestic market, we become a leading manufacture in East China. Now we believe we are ready to overseas users.

The company adopts advanced production line from Germany, and the main products include A+E series products for exporting and A+D products for domestic sales in pressure, temperature, flow, level, calibration and valve which can cater for the needs from domestic and foreign markets. Products are organized and sold under fully dedicated divisions, each staffed with an experienced and highly trained team of dedicated technical sales, applications engineering and customer service support personnel. Products are applied to water treatment, petrochemical, chemicals, machinery, pharmacy, food, mine, metallurgy, etc.

AEAD Technology adheres to the development strategy of Internationalization, Technicalization, Industrialization, which can realize the high-end extension of the products from domestic market to international market. The value chain turns from providing single product to system solution, and the operation expands from linear-oriented to a comprehensive modern enterprise operation including merger and capital operation.

The company has already passed the ISO9001 Quality Management System Certification, ISO14001 Environmental System Certification, and Occupation Health Safety Management System Certification (OHSAS18000).
