Lmh 80 Ultra Thin Type Hand Pulse Size Rotary Encoder

Product Specifications

Prod Model:	LMH 80
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Manufacturers:	Yes
Output:	Digital Sensor
Output Mode:	Collector Open Circuit Output
Grade Of Protection:	IP50/ IP65
Type:	Rotary Encoder
Working Principle:	Incremental
Readout Mode:	Contact

Product Description

Function and use

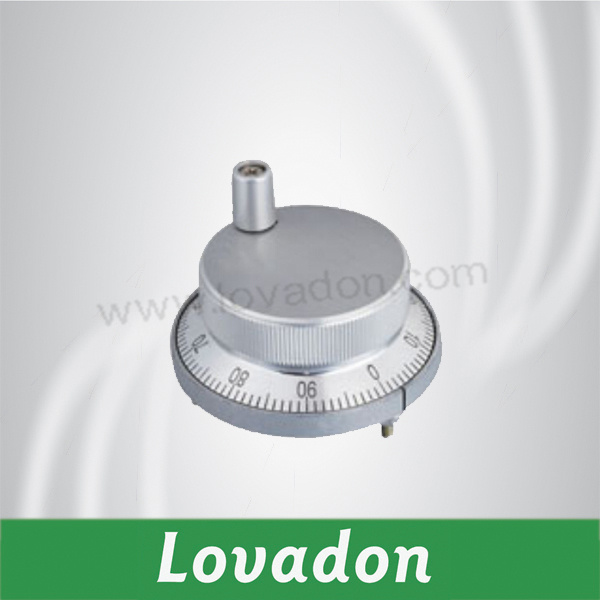

-Diameter is 60mm, thinkenss is only 25, very thin design.
-The rate of distinguish is 25P/R, 50 P/R, 100P/R can select, output signal is A, B two phase.
-Many out put circuit can select, pattern of outgoing line is connect terminal back out
-Apply for numerical machine which has zero emendation and signal commiute.

Type instruction
LMH 80/100-B5L

Basis type - LMH
Main diameter 80mm - 80
Pulse count - 100
Two-phase B - B
Power voltage DC+5v - 5
Out circuit form L: Line driver AM26LS31 - L

Machine parameter
Normally rotate speed - 200r/min
Tiptop rotate speed - 600r/min
Working life - MTBF≥ 10000H
Weight - About 0.25kgs

Enviroment parameter
Concussion resist - 1000m/S² , 6ms
Vibration resist - 100m/s² , 10~200HZ
Working temperature - 20° C ~ 50° C
Storing temperature - -20° C~ + 80° C
Relatively humidity - ≤ RH85% NO ICING
Protect grade - IP50

Electric parameter
Output circuit	Driver L, H	C, E,
Power voltage	+5v ±5%	+5V or +8V~30V
Current consumption	≤100mA	≤60mA
Allowable load	20mA	30mA
Signal high waveform	≥2.5V	≥VCC*70%V
Signal low waveform	≤0.5V	≤0.5V
Response frequency	150KHz	150KHz
