Product Specifications
| Prod Model: |
LOT 100/45 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Manufacturers: |
Yes |
| Type: |
Rotary Encoder |
| Working Principle: |
Incremental |
| Readout Mode: |
Contact |

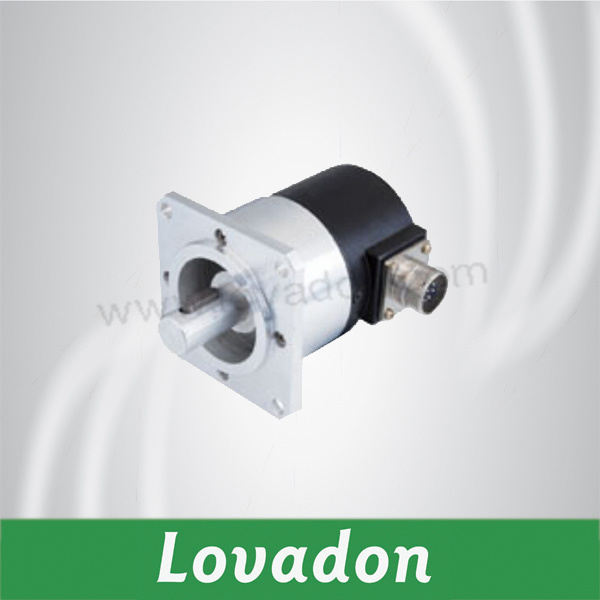

Product Description
Fuction and use
-Outer diameter is 100mm, thinkness is only 43mm, axes diameter is 45mm.
-Axes hole diameter can be at 35mm, 40mm, 42mm.
-Adopt plate spring and wedge pressure axes and using axes directly connect, install convience.
-hole diameter thin type, with strong load capability, and strong interference reisit, steady capabilty.
-Axes hole connect way is socket head crew type holt hoop iron type, din-rail type when order please cleary it.
-Many output circuit can select, out from is socket side out. And back out.
-Apply for heavy load and badly working enviroment such as numercial control machine tool and so on.
Type instruction
LOT 100/45-1024BZ-05LG2
Basis type - LOT
Main diameter 100mm - 100
Axes diameter 45mm - 45
Pulse count - 1024
Two-phase with positive base point - BZ
Power voltage: DC 5V - 05
Out circuit form L: Line driver AM26LS31 - L
Out form H: Socket backout - G
Cable length 2m - 2
Pusle/ revolution (note: The plastic code plate with vibration resist and inrush-resist, metal code wheel with high temperture resist, and glass code wheel with high precisiom):
10 20 30 50 60 100 120 125 150 180 200 250 256 300 360 400 500 512 600 720 800 900 1000 1024 1200 1250 1500 1800 200 2048 2400 2500 3000 3600 4000 4096 4500 4800 5000 5400 or according customer request.
Cautions:
(1) signals connect according to the cable color in the list, shield line had connected with encoder shell actual connection connect by encoder mark.
(2) stardard length of output cable is 1m, the longest could extend to 50m.
Machine parameter
Radial load - ≤ 50N
Axial load - ≤ 30N
Start torque - ≤ 5*10-2N. M
Tiptop rotate speed - 5000r/min
Running inertia - 40g/cm²
Allowable acceleration - 1*104rad/S²
Weight - About 0.5kg
Enviroment parameter
Concussion resist - 1000m/S² , 6ms
Vibration resist - 100m/s² , 10~200HZ
Working temperature - 20° C ~ 50° C
Storing temperature - -20° C~ + 80° C
Relatively humidity - ≤ RH85% No incing
Protect grade - IP50
|
Electric parameter |
|
|
|
|
|
|
|
|
|
|
|
Output circuit |
Driver L, H |
C, E, F |
Driver T |
|
|
|
|
|
|
|
|
Power voltage |
+5v ±5% |
+5V or +8V~30V |
+5V or +8V~30V |
|
|
|
|
|
|
|
|
Current consumption |
≤150mA |
≤60mA |
≤150mA |
|
|
|
|
|
|
|
|
Allowable load |
20mA |
30mA |
20mA |
|
|
|
|
|
|
|
|
Signal high waveform |
≥2.5V |
≥VCC*70%V |
≥VCC*70%V |
|
|
|
|
|
|
|
|
Signal low waveform |
≤0.5V |
≤0.5V |
≤0.5V |
|
|
|
|
|
|
|
|
Rise / fall time |
≤100ns |
≤1us |
≤100ns |
|
|
|
|
|
|
|
|
Response frequency |
150KHz |
150KHz |
150KHz |
|
|
|
|
|
|
|
|
Wire List |
|
|
|
|
|
|
|
|
|
|
|
Output signal |
+V |
0V |
SIG A |
SIG B |
SIG Z |
SIG A |
SIG B |
SIG Z |
G |
|
CEF Type |
Cable color |
red |
black |
green |
white |
yellow |
- |
- |
- |
Copper screen |
|
DB15 socket |
7 |
5 |
5 |
5 |
5 |
|
|
|
8 |
|
LHT Type |
Cable color |
red |
black |
green |
white |
yellow |
brown |
grey |
orange |
Copper screen |
|
DB15 socket |
6 |
5 |
4 |
2 |
9 |
3 |
1 |
10 |
8 |
