Changhe Automobile Co. >> Longer Version, 1.2L MPV, 2-11 Seats, Freedom Mini Bus, Cargo

Longer Version, 1.2L MPV, 2-11 Seats, Freedom Mini Bus, Cargo

Longer Version, 1.2L MPV, 2-11 Seats, Freedom Mini Bus, Cargo
Supplier: Changhe Automobile Co.
Price: NegotiableUNIT
Min Order: 20unit
Quantity::
Trade Terms: FOB,CFR,CIF
contact supplier

Product Specifications

Prod Model: CH6430T2
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Dimension: 4295X1528X1885
Transmission Type: Manual
Emission Standard: Euro 4
Load Capacity: 1-10t
Power: Gas/Petrol
Drive Wheel: 4?á2
Horsepower: <150hp
Engine Capacity: <4L
Tire Type: Solid Tire
Tire Certification: ISO
Condition: New
Seats: 2-11

Product Description

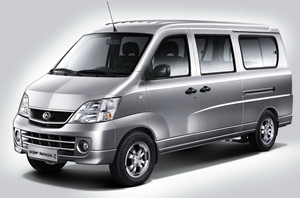

CHANGHE FREEDOM MINI BUS LONGER VERSION
SUZUKI K12B ENGINE
ENGINE DISPLACEMENT: 1243CC
MAX POWER: 70KW
LENTH: 4295 MM


FREEDOMCH6430T2
TypeES
DIMENSIONS
Overall length                                      mm4295
Overall width                                       mm1528
Overall height                                    mm1885
Wheelbase                                                2740
Tread  Front       mm             1310
Rear        mm             1310
Minimum turning radius                        m5.5
WEIGHT
Curb weight                     kg1085
Gross vehicle weight             kg1900
ENGINE
TypeK12B-A
Piston displacement                           ml1243
Bore x stroke                                     mm73×74
Compression ratio                           m10.6:1
Maximum output                 kw(r/m)  70/6000
Maximum torque                         N.m(r/m)107/5200
Maximum speed                           km/h130
TRANSMISSION
Typesynchromesh
Gear ratio1st   14.425
2nd  22.304
3rd   31.674
4th    41.264
5th    51
Reverse5.151
Final gear ratio 3.364
SteeringRack and pinion
SuspensionFrontMacPherson strut and coil spring
RearNonisolated trailing and leaf spring
BrakesFrontVentilated disc
RearDrum,leading and trailing
Tyres175/70R14LT
CAPACITY
Fuel tank                                                          litre37
Seating8
EQUIPMENT LIST
FREEDOMCH6430T2
Type ES
COMFORT
Manual windowFront
RearS
Electric windowFrontO
Central door locking-
Air conditioningDouble evaporatorS
Front evaporator-
HeaterS
AcousticsRadio with audio S
Radio with USB connection USB-
Front  speakerS
INSTRUMENT PANEL
Bill boxS
Digital clock-
OdometerS
TachometerS
Cigarrette lighterS
Glove boxS
INTERIOR
Front cabin lightS
Rear cabin light S
Sun visor  S
Cup holderS
Front seatLeftMiddle backrest,Removable backrest inclination,Sliding,Detachable headrests
,,,
S
RightMiddle backrest,Removable backrest inclination,Detachable headrests
,,,
S
Middle seatHigh backrest 2+1 seat with additional seat
2+1
S
Third seatFolded up seat without headrestS
Low backrest 2+1 seat with folded up additional seat
2+1
O
Fourth seatFolded up seat without headrestO
Normal inner rearview mirrior   S
Carpet(PVC)  (PVC)PVC
Roof( soft roof) ()S
Inner decorative plateNormalS
Deluxe(Front door guard) ()O
B column net component   B-
ABS-
Air bag-
EXTERIOR
Front crystal headlampS
Rear combination lightS
Front fog lampsS
High-mount stop lampS
Muti-speed front wipersS
Back window wipers-
Back window washer-
Back door hot window-
Outer rearview mirrorManual
Front and rear fender ,S
Rear trailer hook -
Tire14 inch meridian tire 14S
Steel wheelS
14 inch aluminium alloy wheel  14O
Steel wheel and wheelcapS
Rear side window(fixture)Push-pull
Decorative applique(Back door window) ()O
Back door light-reflected decoration-
Blind window
/
Middle windowO
Rear side windowO
Rear windowO
SAFETY
SeatbeltFront seatbeltsELR,3 Points   ELRS
Middle  seatbelts3 Points(both sides)+2 Points(middle)
+
S
Third seatbelts3 Points(both sides)+2 Points(middle)
+
S
Fourth seatbeltsThree seatbelt(3 Points(both sides)+2 Points(middle) (+)O
Endergonic steering columnS
side impact beamsS
Childproof rear door locksS
Front disc & rear drum brakeS
9'' Booster LPSV    9S
Steering lockS
Central door control lamp switch
COLOR
Central decorative cover(Instrument panel)Black
AshtrayBlack
Front and rear bumper  Silver
Spraying front grillingS
Outside rearview mirrors(MT) ()Black
Full windw glassColorless
Black membrane-
Back door decorationBlack
S: Standard           O :Optional              -:Not available




OPTIONAL EQUIPMEMTS:
· FRONT ELECTRIC WONDOWS
· DOUBLE STEAMING A/C
· R14 ALLUMINIUM WHEELS 14
· 4th Row Seats
· Blind window/




OTHER STATEMENTS:
· CH6390LE (LENGTH 3868MM, POWER 38.5 KW)
· CH66391BA21 (LENGTH 3868MM, POWER 70 KW)
· CH5026XXYT4 (LENGTH 4295MM, POWER 70 KW,MIDDLE , REAR AND BACK DOOR WITH BLIND WINDOWS ,)

Changhe Automobile Co., Ltd. (hereinafter called Changhe Auto), which locate in the world famous porcelain town--Jingdezhen city, Jiangxi province, is one of the earliest vehicles producers in China since 1970s. Changhe is also one of the partner of SUZUKI Japan in China since 1980s and we are the first factory in China who can produce mini vans. Now Changhe owns various products lines of passenger cars, sedan, and commercial cars.

Changhe Auto owns two vehicle plants in Jingdezhen and Jiujiang cities and one engine plant in Jiujiang city; And also has the annual production volume of 300, 000 units vehicle and 150, 000 units engine. Our company is the scientific and manufacturing base of small displacement cars and one of the large scale backbone automobile manufacturers in China.

At this time, Changhe Automobile is making Revamping Scheme for Capacity Expansion and construction of new production lines for vehicles and engines.

According to the plan, by the year 2016, Changhe Automobile will reach the annual production volume of 800, 000 units vehicle and 300, 000 units engine, and the estimated sales volume will be more than 600, 000 units vehicles per year.

In the future, Changhe will also locate more models like small SUV, A class passenger cars, MPV with more than 10 seats and also other various models.

CHANGHE AUTO beleive that only the high quality cars and good service brand can win the market. So we are committed to provide cars with high quality and level up our service. We hope you can also try to cooperate with us and so you will know our cars are fitting to your market.
