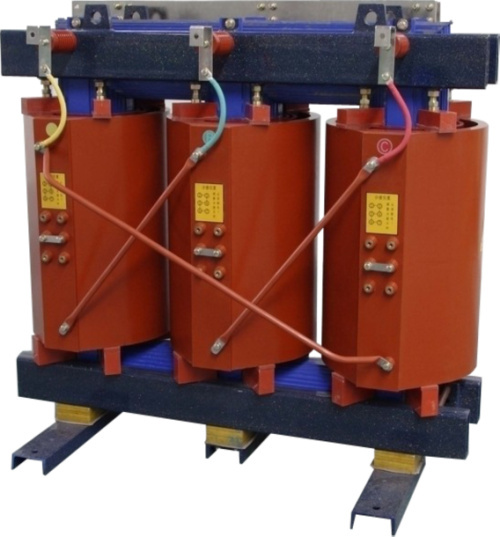

Low Noise Dry-Type Distribution Transformer (SC10-315kVA)
Price: |
US $ 16862/Piece |
Trade Terms: |
FOB,CIF,FCA |
Min Order: |
1/Piece |
Pay Type: |
L/C,T/T,Paypal,Western Union |
Low noise dry-type distribution transformer(SC 10-30KVA)
Fearture Advanced and reasonable structure, small volume light weight, convenient
installation, maintenance-free and economical.
Low noise and low loss, good heat dissipation performance, strong loading ability.
Moisture proof performance, it can run in 95% relative humidity
Low value of partial discharge, can guarantee long term safety operation in working voltage
It can increase 40-50%of rated capacity shortly in forced air cooling
Good insulation performance, high tolerance for lightning impulse level, and strong ability to bear sudden short circuit.
It is high mechanical strength and good thermal stability. With rational combination of insulation material, it can obtain the same temperature expansion coefficient with copper conductor.
The computer temperature controller automatic monitoring and protection provides reliable safeguard for transformer's safety operation.
It is with strong ability of flame retardant and automatic flameout. It can install in load center.SpecificationRated high voltage:10 (10.5,11,6,6.3,6.6.)kV
High voltage tapping range: ±5% or ±2*2.5%
Rated low voltage: 0.4kV, 0.415kV, 0.433kV
Connection symbol: Dyn11, Yyn0
Insulation level: LI75AC35/LI0AC3
Product standard
GB1094.11-2007(Instead of GB6450-1986)
GB/T10228-2008(Instead of GB/T10228-1997)
IEC60076-1993Model | rated capacity kVA | no-load loss W | Loading Loss W(75ºC) | No-Load current % | Sound Level dB | Impedance voltage % | Base gauge mm | Weight kg | Outer Dimension mm(L*W*H) |
SC10-30/10 | 30 | 190 | 610 | 2.4 | 43 | 4 | 550 | 360 | 940*600*800 |
SC10-50/10 | 50 | 270 | 870 | 2.1 | 43 | 4 | 550 | 460 | 1010*610*930 |
SC10-80/10 | 80 | 360 | 1200 | 1.8 | 45 | 4 | 550 | 630 | 1010*610*960 |
SC10-100/10 | 100 | 400 | 1370 | 1.8 | 45 | 4 | 550 | 690 | 1010*610*980 |
SC10-125/10 | 125 | 470 | 1610 | 1.6 | 45 | 4 | 550 | 750 | 1010*880*1040 |
SC10-160/10 | 160 | 540 | 1850 | 1.6 | 45 | 4 | 550 | 920 | 1180*880*1055 |
SCB10-200/10 | 200 | 620 | 2220 | 1.4 | 46 | 4 | 660 | 1130 | 1320*760*1085 |
SCB10-250/10 | 250 | 720 | 2420 | 1.4 | 46 | 4 | 660 | 1280 | 1320*760*1155 |
SCB10-315/10 | 315 | 890 | 3040 | 1.2 | 46 | 4 | 660 | 1390 | 1320*760*1155 |
SCB10-400/10 | 400 | 980 | 3500 | 1.2 | 48 | 4 | 660 | 1760 | 1380*760*1315 |
SCB10-500/10 | 500 | 1170 | 4290 | 1.2 | 48 | 4 | 660 | 2040 | 1380*760*1365 |
SCB10-630/10 | 630 | 1350 | 5160 | 1.0 | 50 | 4 | 660 | 2200 | 1420*760*1410 |
SCB10-630/10 | 630 | 1300 | 5240 | 1.0 | 50 | 6 | 660 | 2390 | 1450*760*1435 |
SCB10-800/10 | 800 | 1530 | 6100 | 1.0 | 50 | 6 | 820 | 2570 | 1600*970*1480 |
SCB10-1000/10 | 1000 | 1780 | 7150 | 1.0 | 52 | 6 | 820 | 3180 | 1600*970*1510 |
SCB10-1250/10 | 1250 | 2100 | 8530 | 1.0 | 52 | 6 | 820 | 3630 | 1720*970*1615 |
SCB10-1600/10 | 1600 | 2470 | 10300 | 1.0 | 55 | 6 | 820 | 4280 | 1720*1000*1825 |
SCB10-2000/10 | 2000 | 3060 | 12720 | 0.8 | 55 | 6 | 1070 | 5530 | 1850*1200*1715 |
SCB10-2500/10 | 2500 | 3600 | 15110 | 0.8 | 57 | 6 | 1070 | 6220 | 1920*1200*1955 |
SCB10-1600/10 | 1600 | 2480 | 11390 | 1.0 | 55 | 8 | 1070 | 4410 | 1720*1000*1825 |
SCB10-2000/10 | 2000 | 3060 | 14050 | 0.8 | 55 | 8 | 1070 | 5690 | 1850*1200*1715 |
SCB10-2500/10 | 2500 | 3600 | 16630 | 0.8 | 57 | 8 | 1070 | 6400 | 1920*1200*1955 |
Prod Model: |
SC10-315KVA |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Frequency: 50Hz/60Hz: |
Capacity:50kVA-2000kVA |
Winding Coupling: Yna0 Dyn11: |
Insulation Class:a |
Application: |
Lighting |
Phase: |
Three |
Coil: |
Shell-type Transformer |
Cooling Method: |
Dry-type Transformer |
Winding Type: |
Two-winding Transformer |
Brand: |
Kewang |
