Product Specifications
| Prod Model: |
FD-311 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Model: |
Fd-311 |
| Voltage: |
230V 1-pH/400V 3-pH |
| Max Hose Length: |
147.6 Feet(45m) |
| Max Working Pressure: |
13.8mpa (138bar) |
| Max Output: |
8kg/Min(17.6lb/Min) |
| Automation: |
Automatic |
| Type: |
Polyurethane Foam Machine |
| Computerized: |
Computerized |
| Certification: |
SGS |
| Principle: |
High-Pressure Air Type |
| Raw Material: |
Mixing |
Product Description

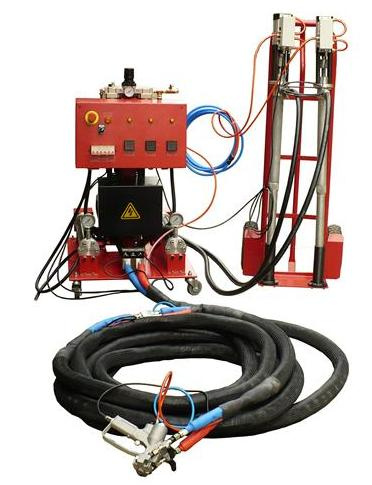

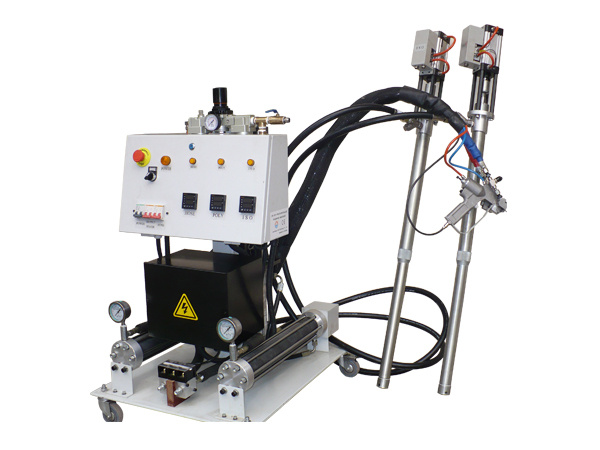

Item FD-311A Polyurethane foaming machine.
MOQ 1 set.
Delivery time Within 15 working days after T/T.
Standard configuration
Proportion Fixed Mainframe 1 set
Self-cleaning foaming gun 1 set
Feeding pump 2 sets

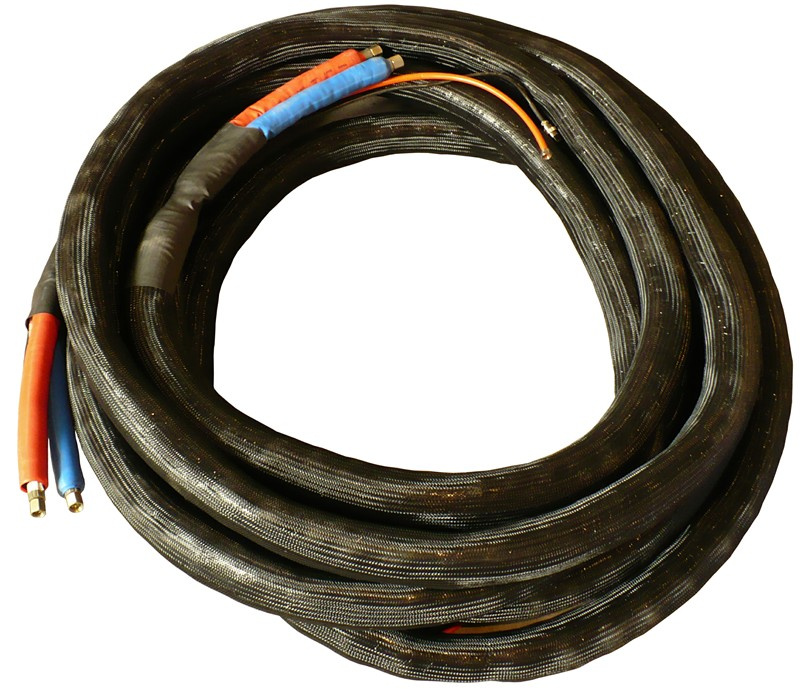

Heating hose 49.2 feet (15m)
Connecting hose from feeding pump to machine 10 feet(3m)
Connecting hose from heating hose to gun 5 feet(1.5m)
Rings and Tools
Technical Data
The ratio of raw material 1: 1(Fixed)
The viscosity range of raw material 200-1000CPS (Under the operate temperature)
Max working pressure 13.8 MPA (138 bar)
Max fluid temperature 88ºC (190ºF)
Max Output 8kg/min (17.6 lb/min)
Air motor diameter 5 inch
Heater power 4500W each one
Heating hose power 1000W/15m
Whole power 10500W
Voltage 230V 1-pH/400V 3-pH
Operate temperature 0ºC-70ºC
Clean mode Self-clean by air
Max heating hose length 147.6 feet (45m)
Pneumatic source 1MPA(10 bar, 145 psi)
Machine size 700mm*800mm*1150mm
1450mm*400mm*550mm
Gross weight 220KG
Jinan Saijun CNC Technology Co., Ltd is located in the advanced and new technology development district in the east of Jinan, Shandong, China.
The company devotes into the development, production and sales of mechanical and electrical products of laser engraving machine, laser cutting machine and high pressure foaming spray/injecting machine.
We have abundant technology power, professional and crack sale staff. There are sale agency and after-service center in most provinces of China. And we are marching into the international markets with our excellent products and after-sale services.
Our company has been devoting into the spending of intelligence. And several core technologies are researched and developed by ourselves. So the products are in with more priority than others. We also design and develop special facilities according to the customers' special orders.
If you are interested in our products, kindly contact us feel free! We will do our best for all of you!
