Changzhou Chuangke Drying Granulating Equipment Co., Ltd. >> Low Temperature Pharmaceutical Drying Machine

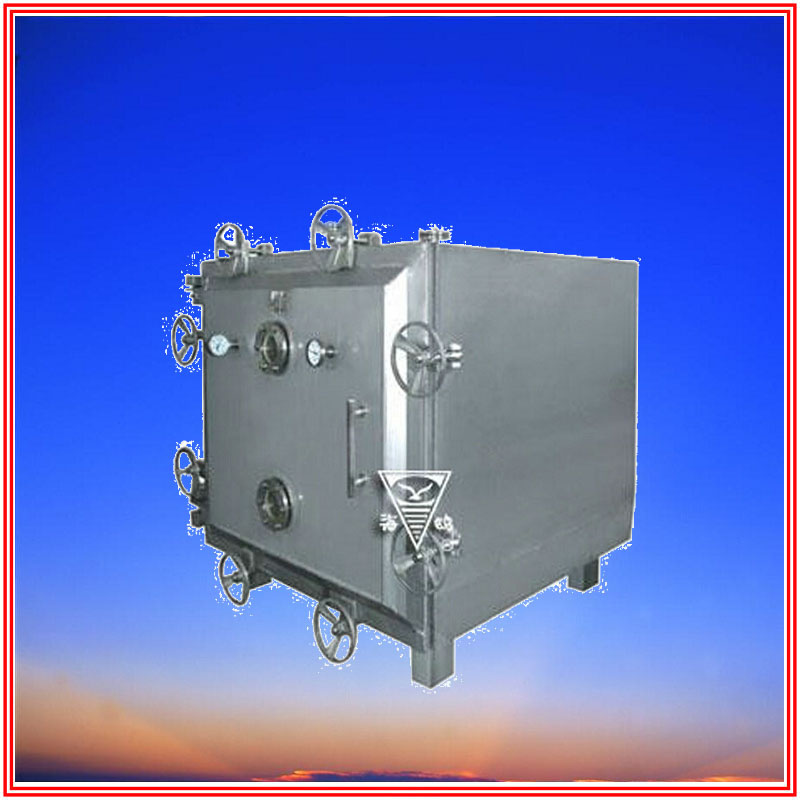

Low Temperature Pharmaceutical Drying Machine

Name: Low Temperature Pharmaceutical Drying Machine
Brand: China-Manufacturer-Directory.com
SKU: 772697705
Availability: InStock
Rating: 4.9 (41 reviews)

Supplier:	Changzhou Chuangke Drying Granulating Equipment Co., Ltd.
Price:	US $ 4500/Piece
Min Order:	1/Piece
Quantity::
Trade Terms:	FOB,CIF,CIP

Product Specifications

Prod Model:	FZG
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Name:	Vacuum Dryer/ Vacuum Drying Machine
Material:	Stainless Steel
Tem.:	Low Tenmperature
Pressure:	Negative Pressure
Pump:	Water Ring Vacuum Pump
Heating Source:	Hot Water or Steam
Temperature:	30-140
Type:	Preparation Machinery
Finished Dosage Form:	Granules
Certification:	SGS

Product Description

Application:It's suitable for drying heat sensitive material, it's widely used in pharmaceutical, chemical, food and electronic industries.

Features:

1.Under the condition of vacuum,the boiling point of raw material will decrease and make the evaporation efficiency increase. Therefore for a certain amount of heat transfer, the conducting area of dryer can be saved.
2. The heat source for evaporation may be low pressure steam or surplus heat steam.
3. The heat loss is less.
4.Before drying,the treatment of disinfection may be carried out during the period of drying,there is no impurity material mixed. It is in conformity.
5. It belongs to static dryer. So the shape of raw material to be dried should not be destroyed.

Questions before quotation:
1.       Material name
2.       Material initial moisture and final moisture\
3.       How many kg per batch or per day
4.       Heating source is steam or hot water?

Techinical specification:

Model Name	YZG-600	YZG-800	YZG-1000	YZG-1400A	FZG-10	FZG-15		FZG-20
Inter size of drying chamber(mm)	Φ600×976	Φ800×1247	Φ1000×1527	Φ1400×2054	1500×1060 ×1220	1500×1400 ×1220		1500×1800 ×1220
Outer size of drying chamber(mm)	1135×810 ×1024	1700×1045 ×1335	1693×1190 ×150	2386×1675 ×1920	1513×1924 ×1720	1513×1924 ×2060		1513×1924 ×2500
Layers of baking support	4	4	6	8	5	8		12
Interval of baking(mm)	82	82	102	102	122	122		122
Size of baking tray(mm)	310×600 ×45	520×410 ×45	520×410 ×45	460×640 ×45	460×640 ×45	460×640 ×45		460×640 ×45
Quantity of baking tray	4	8	12	32	20	32		48
working pressure inside the pipe of baking support(Mpa)	≤0.784	≤0.784	≤0.784	≤0.784	≤0.784	≤0.784		≤0.784
Operation temperature of baking support, oC	35-150	35-150	35-150	35-150	35-150	35-150		35-150
Degree of vacuum inside the chamber when operation (Mpa)	-0.09~0.096
Under the condition of -0.1Mpa and 110oC,evaporation rate of water(kg/m2.hr )	7.2	7.2	7.2	7.2	7.2		7.2	7.2
When condenser is used,Model,and power of vacuum pump(kw)	2X-15A 2KW	2X-30A 3KW	2X-30A 3KW	2X-70A 5.5KW	2X-70A 5.5KW		2X-70A 5.5KW	2X-90A 2KW
When condenser is not used,Model,and power of vacuum pump(kw)	SK-0.8 2.2KW	SK-2.7 4KW	SK-3 5.5KW	SK-6 11KW	SK-3 5.5KW		SK-6 11KW	SK-6 11KW
Weight of drying chamber(kg )	250	600	800	1400	1400		2100	3200
