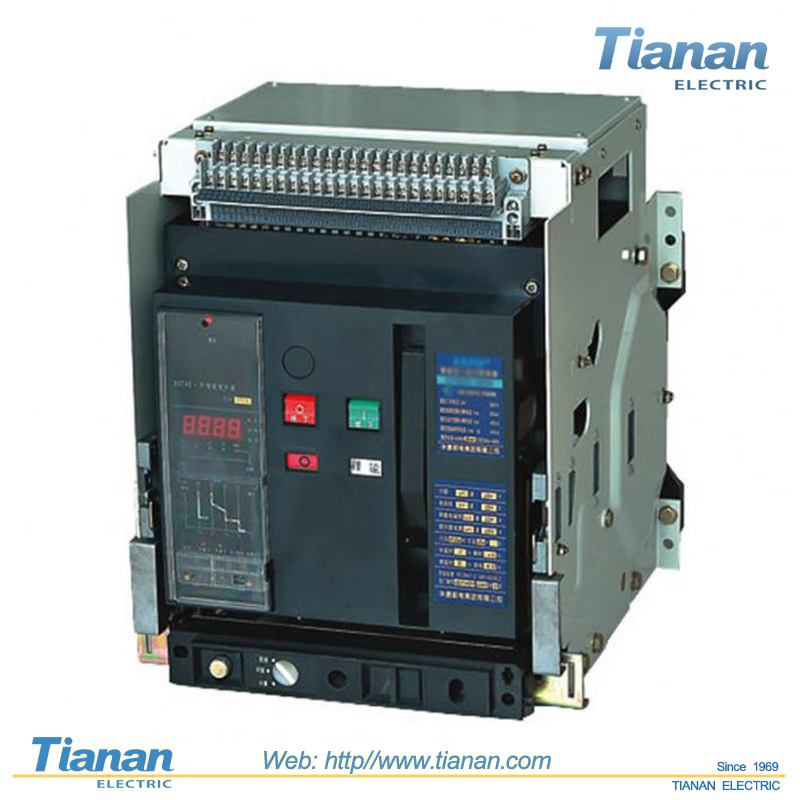

Low Voltage Contactor Power Transmission/Distribution Auto Partsseries Conventional Circuit Breaker
Price: |
US $ 4000-5000/Piece |
Trade Terms: |
FOB,CFR,CIF |
Min Order: |
1/Piece |
Pay Type: |
L/C,T/T,D/P,Western Union |
Product Specifications
Prod Model: |
TANW1-2000 |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Rated Voltage: |
12 Kv |
Altitude: |
up to 3,000m Above Sea Level |
Environment: |
Indoor |
Special Conditions: |
Depends on The Customer |
Rated Current: |
630A |
Rated Short Time Continual Time: |
4 S |
Test Equipment: |
IEC Standard |
Typical Products: |
Circuit Breaker |
Frequency: |
50 Hz |
Warranty: |
10 Years |
Breaking Capacity: |
High Voltage Circuit Breakers |
Operation: |
Energy-storage Type |
Speed: |
Normal Type Circuit Breaker |
Arc-extinguishing Medium: |
Vacuum |
Installation: |
Fixed |
Structure: |
ACB |
Poles Number: |
4 |
Certification: |
CCC |
Product Description
VS1-12 Indoor AC Vacuum Circuit Breaker
NINGBO TIANAN (GROUP) CO., LTD.
GeneralVS1-12 (ZN63A) type indoor medium voltage vacuum circuit breaker is used as protection and control
unit of three-phase AC indoor medium voltage switchgear and industrial and mining enterprise power
device of 50Hz and rated voltage up to 7.2~24kV. This products comply with IEC60694, IEC62271-100.Specifications
No. | Description | Unit | Data |
1 | Rated voltage | kV | 12 |
2 | Rated insulation levels | Rated power frequency withstand voltage/1min ( phase to phase, phase to earth, open contacts) | kV | 42 |
Rated lighting impulse withstand voltage (phase to phase, phase to earth, open contacts) | 75 |
3 | Rated frequency | Hz | 50 |
4 | Rated current | A | 630 | 630 | 1250 | 1600 |
1250 | 1250 | 1600 | 2000 |
|
| 2000 | 2500 |
|
| 2500 | 3150 |
|
|
| 4000 |
5 | Rated short circuit breaking current | kA | 20 | 25 | 31.5 | 40 |
6 | Rated short time withstand current(4s) | kA | 20 | 25 | 31.5 | 40 |
7 | Rated short circuit making current | kA | 50 | 63 | 80 | 100 |
8 | Rated peak value of withstand current | kA | 50 | 63 | 80 | 100 |
9 | Rated operating sequence |
| O-0.3s-CO-180s-CO O-180s-CO-180s-CO |
10 | Rated short circuit breaking current breaking times | times | 30/20(40kA) |
11 | Rated cable charge breaking current | A | 25 |
12 | Rated single capacitor bank breaking current | A | 630/400(40kA) |
13 | Rated back to back capacitor bank breaking current |
| 400 |
14 | Mechanical life | times | 10000 |
16 | Allowed abrade cumulative thickness of moving and static contactor | mm | 3 |
17 | Clearance between open contacts | mm | 11±1 |
18 | Contact stroke | mm | 3.5±0.5 |
19 | Bounce duration of contact closing | ms | ≤2 |
20 | Non-simultaneity of three phase for opening and closing | ms | ≤2 |
