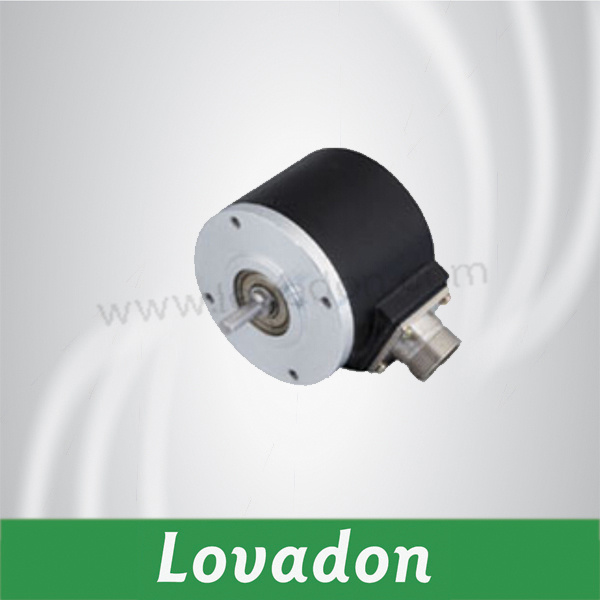

Lp 58/5 Series Rotary Encoder

Product Specifications

Prod Model:	LP 58/5
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Manufacturers:	Yes
Type:	Rotary Encoder
Working Principle:	Incremental
Readout Mode:	Contact

Product Description

Fuction and use
Outer diameter is 58mm, thinkness is only 45, thin type design.
Axes diameter 5mm, can product 6mm, 8mm.
Economization small torque, light weight, strong interference resisit steady capability.
Many output circuit can select, out form is socket, cable side out and back out.
Apply for industry machine, automatic control and so on.

Type instruction
LP58/5-1000BZ-5LG2
Basis type - LP
Main diameter 58mm - 58
Axes diameter 5mm - 5
Pulse count - 1000
Two-phase with positive base point - BZ
Power voltage: DC+5V - 5
Out circuit form F: Line driver AM26LS31 - L
Out form G: Cable side out - G
Cable length 2m - 2

Pusle/ revolution (note: The plastic code plate with vibration resist and inrush-resist, metal code wheel with high temperture resist, and glass code wheel with high precisiom):
10 20 30 50 60 100 120 125 150 180 200 250 256 300 360 400 500 512 600 720 800 900 1000 1024 1200 1250 1500 1800 200 2048 2400 2500 3000 3600 4000 4096 4500 4800 5000 5400 or according customer request.
Cautions: (1) signals connect according to the cable color in the list, shield line had connected with encoder shell actual connection connect by encoder mark.
(2) stardard length of output cable is 1m, the longest could extend to 50m.

Machine parameter
Radial load - ≤ 40N
Axial load - ≤ 20N
Start torque - ≤ 3*10-2N. M
Tiptop rotate speed - 6000r/min
Running inertia - 30g/cm²
Allowable acceleration - 1*104rad/S²
Weight - About 0.3kg

Enviroment parameter
Concussion resist - 1000m/S² , 6ms
Vibration resist - 100m/s² , 10~200HZ
Working temperature - 20° C ~ 50° C
Storing temperature - -20° C~ + 80° C
Relatively humidity - ≤ RH85% No incing
Protect grade - IP50

Electric parameter
Output circuit			Driver L, H	C, E, F	Driver T
Power voltage			+5v ±5%	+5V or +8V~30V	+5V or +8V~30V
Current consumption			≤150mA	≤60mA	≤150mA
Allowable load			20mA	30mA	20mA
Signal high waveform			≥2.5V	≥VCC*70%V	≥VCC*70%V
Signal low waveform			≤0.5V	≤0.5V	≤0.5V
Rise / fall time			≤100ns	≤1us	≤100ns
Response frequency			150KHz	150KHz	150KHz
Wire List
Output signal	CEF Type		LHT Type
	Cable color	Seven core socket	Cable color	Nice core socket	Ten core socket
+V	red	1	red	1	1
0V	black	4	black	4	4
SIG A	green	3	green	5	5
SIG B	white	5	white	3	3
SIG Z	yellow	2	yellow	2	2
SIG A			brown	7	7
SIG B			grey	6	6
SIG Z	-		orange	8	8
G	Copper screen	7	Copper screen	9	10
