Product Specifications
| Prod Model: |
LRD13, LRD23, LRD33, LRD43 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Product Description
Specifications
1. LRD series thermal relay
2. CE approved
3. Warranty period: 18months
4. Fast delivery time
5. Exported more than 10years

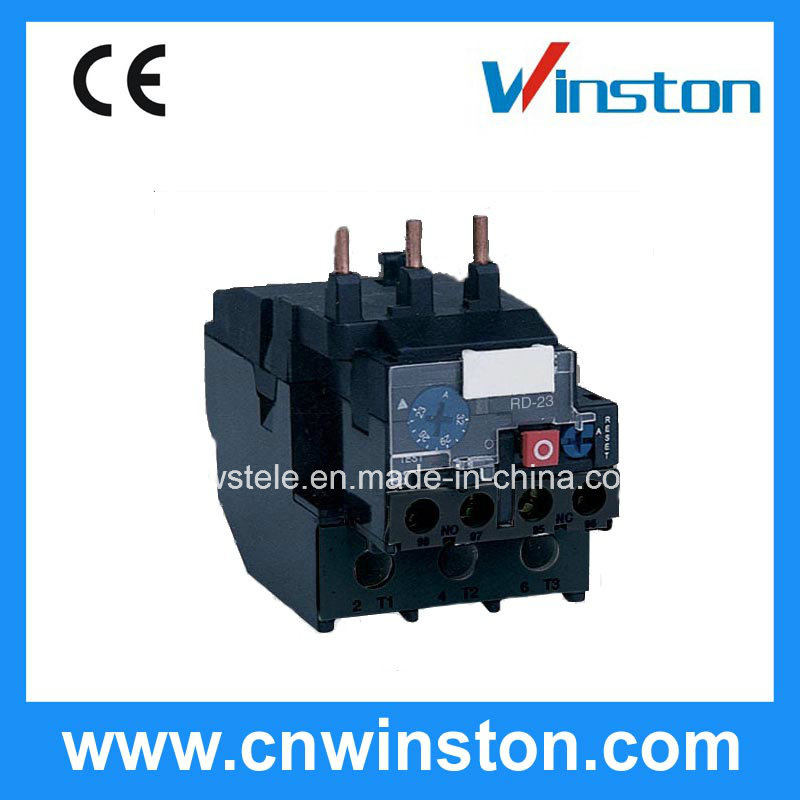

LRD Thermal relay
This series of thermal overload relay can be used in the circuit of 50Hz or 60Hz, rated insulation voltage 660V, rated current 0.1-140A for protecting the phase break when the electric motor is overload. The relay has different mechanism and temperature compensation & can be pluged in LC1-D series AC contactor. It is the most advanced thermal relay in the nineties in the world. The products comply with IEC 60947-5.
|
Type |
Rated working curren |
Thermal component |
|
Rated current (A) |
Regular or scale of rated current (A) |
|
LRD13 |
25 |
LRD |
1301 |
0.16 |
0.10-0.16 |
|
|
1302 |
0.25 |
0.16-0.25 |
|
|
1303 |
0.40 |
0.25-0.40 |
|
|
1304 |
0.63 |
0.40-0.63 |
|
|
1305 |
1.0 |
0.63-1.0 |
|
|
1306 |
1.6 |
1.0-1.6 |
|
|
1307 |
2.5 |
1.6-2.5 |
|
|
1308 |
4.0 |
2.5-4.0 |
|
|
1310 |
6.0 |
4.0-6.0 |
|
|
1312 |
8.0 |
5.5-8.0 |
|
|
1314 |
10.0 |
7.0-10.0 |
|
|
1316 |
13.0 |
9.0-13.0 |
|
|
1321 |
18.0 |
12.0-18.0 |
|
|
1322 |
25.0 |
17.0-25.0 |
|
LRD23 |
38 |
LRD |
2353 |
32 |
23.0-32.0 |
|
|
2355 |
38 |
28.0-36.0 |
|
LRD33 |
140 |
LRD |
3353 |
32 |
23.0-32.0 |
|
|
3355 |
40 |
30.0-40.0 |
|
|
3357 |
50 |
37.0-50.0 |
|
|
3359 |
65 |
48.0-65.0 |
|
|
3361 |
70 |
55.0-70.0 |
|
|
3363 |
80 |
63.0-80.0 |
|
|
3365 |
104 |
80.0-104.0 |
|
|
3367 |
120 |
95.0-120.0 |
|
|
3369 |
140 |
110.0-140.0 |
|
LRD43 |
140 |
LRD |
4365 |
104 |
80.0-104.0 |
|
|
4367 |
120 |
95.0-120.0 |
|
|
4369 |
140 |
110.0-140.0 |
