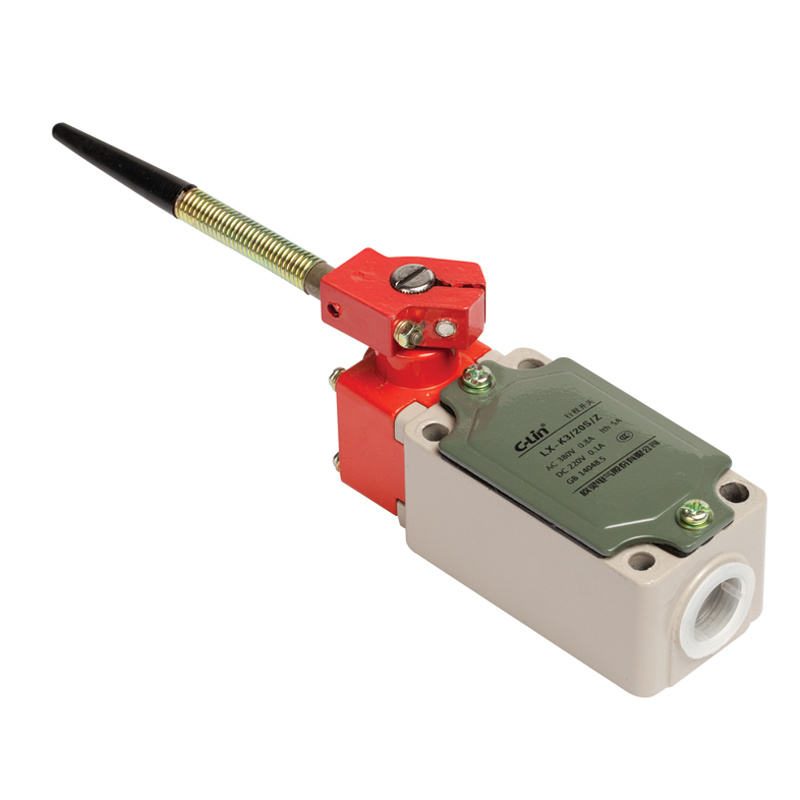

Lxk3 Limit Switches /Limit Switch
Product Specifications
| Prod Model: |
LXK3/20S/D |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Usage: |
to Control Electrical Roagnet of AC or DC |
| Rated Value: |
Rated Insulation Voltage Ui-380V |
| Protection For Short-Circuit: |
Rated Fuse Current 100arl1-15/10 |
| Operation Frequency: |
AC 2400 Times Per Hour, DC 1200 Times Per Hour |
| Vibration Resistance: |
Frequency: 10-55Hz, Acceleration: 10g ( 90m /S) |
| Protection Degree Of Enclosure: |
IP65 GB4208-84 |
Product Description
LX-K3 Series Limit Switch
General IntroductionLX-K3 series limit switch is applied to the 50HZ/60HZ, 250VAC, 220VDC control circuits, works as travel control, limit control, motion direction or speed change, machine tool automatic control, etc.Approved standards: GB14048.5 IEC60947-5-1.
![]()
![]()
| Type | Operating Force max | Pretravel max | Overtravel min |
| LX-K3/20S/Z | 30N(3.06kgf) | 7mm | 2.0mm |
| LX-K3/20S/L | 30N(3.06kgf) | 7mm | 2.0mm |
| LX-K3/20S/B | 20N(2.04kgf) | 45° | 20° |
| LX-K3/20S/T | 20N(2.04kgf) | 45° | 20° |
| LX-K3/20S/J | 20N(2.04kgf) | 45° | 20° |
| LX-K3/20S/D | 20N(2.04kgf) | 45° | 20° |
| LX-K3/20S/H1 | 30N(3.06kgf) | 80° | / |
| LX-K3/20S/H2 | 30N(3.06kgf) | 80° | / |
| LX-K3/20S/H3 | 30N(3.06kgf) | 80° | / |
| LX-K3/20S/W | 20N(2.04kgf) | 45° | / |
![]()
Xinling Electrical Co., Ltd. China was established in 1990. The company has 9 sub-branches, more than 100 cooperation units, and 100 direct distributors, 1000.00m2 factory area and 1000 stuffs.
The company mainly produces mini relay, time relay, solid state relay, electric power relay, temperature controller, kilowatt-hour meter, circuit breaker, contactor and some other electrical component which are the first choice of electric net reconstruction. With perfect management system and technical advancement, itsstreng thens the management or enterprise and promotes product quality. The company takes prospering national industry as its own responsibilities, works hard developing economy of China to promote enterprise level.
The enterprise has gained ISO9001 and RVA Quality System Attestation(Netherlands), and its products have gained CE attestation (European Community), and UL Attestation and CCC Safety Attestation in China successively, and have been insured by PICC, besides, their quality has been ensured by quality "three guarantee". As a result, its products are sold well in more than 30 provinces and cities of China and are exported to Europe, America, Middle East, South-Eastern Asia, Africa and so on 20 countries and districts. Successively, the enterprise has been given the titles of Star Enterprise of China, Financial AAA Grade Enterprise, Gold Client of Agriculture Bank of China, and Credit Enterprise of Product Quality.
Xinling --- will create a magnificent tomorrow together with you!
