Lxw 18 Series Micro Switch
| Price: |
US $ 8/Piece |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
1/Piece |
| Pay Type: |
T/T,Paypal,Western Union |
Product Specifications
| Prod Model: |
LXW 18 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Rated Insulation Voltage: |
AC 500V |
| Mechanical Life: |
100,000times Operations |
| Electrical Life: |
10,000 Times Operations |
| Pressing Type: |
Lever Roller |
| Protection: |
Explosion-Proof |
| Size: |
Small-Sized |
| Environment: |
≧400℃ |
| Breaking Capacity: |
DC |
| Breaking Form: |
Single Type |
| Application: |
Hv Cabinet |
Product Description
LXW 18 Series Micro SwitchFeatures & Application1.Quick & Reliable action , high precision, long life.
2.Different contact material like silver-copper bimetal strips, silver alloy or silver for different electrical load application.
3.Variety of quick connect terminals, for customer flexibly selection.
4.variety of auxiliary actuation types, also can be made according to customer's need to meet different occasions.
5.Applicable to the control circuit with AC 380V,DC 250V, used as parts for master electrical appliances or alternative appliances.
6.This product is widely used for travel control, limit protection and interlocking in mechinery facilities, such as steel, elevator, machine,textile,light industry, electical,electronic device,home appliance,machine tool,power electronic and automation application.

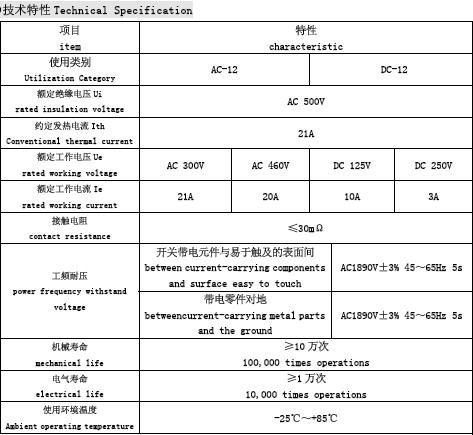

Technical Specification| Item | Characteristic |
| Utilization | AC-12 | DC-12 |
| Ui rated insulation voltage | AC 500V |
| Ith conventional thermal current | 21A |
| Ue rated working voltage | AC 300V | AC 460V | DC 125V | DC 250V |
| Ie rated working current | 21A | 20A | 10A | 3A |
| Contact resistance | ≤30mΩ |
| Power frequency withstand voltage | between current-carrying components and surface easy to touch | AC1890±3% 45---65Hz 5s |
| between current-carrying metal parts and the ground | AC1890±3% 45---65Hz 5s |
| Mechanical life | 100,000times operations |
| Electrical life | 10,000times operations |
| Ambient operating temperature | -25ºC---+85ºC |
