Xi'an Onegreen Co., Ltd. >> Lxw19 Micro Switch

Lxw19 Micro Switch

Name: Lxw19 Micro Switch
Brand: China-Manufacturer-Directory.com
SKU: 767579355
Availability: InStock
Rating: 4.6 (128 reviews)

Supplier:	Xi'an Onegreen Co., Ltd.
Price:	US $ 3/Piece
Min Order:	50/Piece
Quantity::
Trade Terms:	FOB

Product Specifications

Prod Model:	LXW19-11E1
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Rated Current:	5A
Rated Voltage:	AC 250V
Pressing Type:	Lever Roller
Protection:	Waterproof
Size:	Small-Sized
Environment:	﹤250℃
Breaking Capacity:	Micro-Current
Breaking Form:	Single Type
Application:	Power Plant

Product Description

Features&application
1	Quick&Reliable action, high precision, long life.
2	Different contact material like gold alloy,silver alloy or silver for different electrical load application.
3	Variety of quick connect terminals, for customer flexibly selection.
4	Variety of auxiliary actuation type, also can be made according to customer's need to meet different occasions.
5	Applicable to thecontrol circuit AC 250V,used as parts for master electrical appliances or alternative appliances.
6	This product is widely used for travel control,limit protection and interlocking in machinery facilities,such as steel,elevator,machine,textile,light industry,electrical,electronic device,home appliance,machine tool,power electronic and automation application.

Code instruction:

LX:Category code(LX:master limit switch
W:Characteristic code(W:micro swith)
19:Design No
11:Basic spec code, woth a group of changeover contacts
E1:Actuator type:(NO symbol:plunger;one or two phonetic alphalet:special spec can be customized)

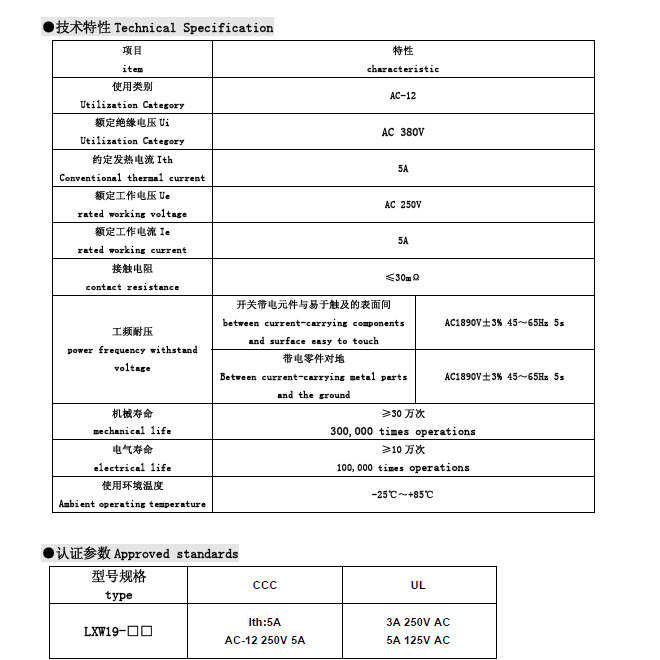

Technical Specification

Utilization Category	AC-12
Ui Utilization Category	AC 380V
Ue rated working voltage	5A
Ue rated working voltage	AC 250V
Ie rated working current	5A
Contact resistance	≤30mΩ
Power frequency withstand voltage	betweencurrent-carrying components and surface easy to touch	AC1890V±3% 45-65HZ 5S
	betweencurrent-carrying matel parts and the ground	AC1890V±3% 45-65HZ 5S
Mechanical life	300,000 times operations
Electrical life	100,000 times operations

Approved standards

Type	CCC	UL
LXW19-	Ith:5A AC-12 250V 5A	3A 252V AC 5A 125V AC
