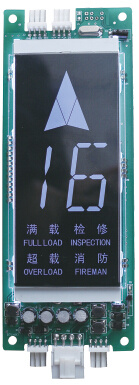

M-Word Segmental LED Display Board

Name: M-Word Segmental LED Display Board
Brand: china-manufacturer-directory.com
SKU: 698501602
Availability: InStock
Rating: 4.6 (58 reviews)

Price:	US $ 1/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	1/Piece
Pay Type:	L/C,T/T

Contact Supplier

Showroom Product Company Profile

1.It uses CAN bus and is fullycompatible with the Bluelight serial system
2.It supports M-word Segmental LED display of elevator running direction and 2-bit stop that consists of various characters.
3.It displays elevator state (overload, full load ,maintenance, and firefighting) in English.
4.It supports serial elevator lock and firefighting signal input.
5.It supports elevator calling and answering display, with embedded calling button.

Model		BL2000-HEH-N2
LCD type		Segment LCD
Display Direction		Vertical
DIMENSION OF PCB		140mm*76mm
Dimension of installation baseboard		No installation baseboard
Information for similar type
Model				Display Color				PCB COLOR
BL2000-HEH-N2 A/B/C				White character& Blue backgroud/White character&Black backgroud/Yellow character&Black background				Green

Terminal definition and function description
Terminal	Function		Pin definition
			1		2		3			4
PW	Power & Communication		24V		GND		CANH			CANL
SH	Up call button		Up call answer(SD)		24V		24V			Up call input(SH)
XH	Down call button		Down call answer(XD)		24V		24V			Down call input(XH)
J1	Serial input port		24V		Serial parking input(DS)		24V			Serial parking input(XF)
J2	Arrival signals output		Up arrival lamp output(SDZ)		Down arrival lamp output(XDZ)		Arrival bell output(DZZ)			GND
S1	SERIAL COMMUNICATION TERMINAL RESISTOR JUMPER (ON BOARD)		Short jumper to connect serial communication terminal resistor
AN	Address Setting key		For details, see Appendix A
Terminal connection diagram
SH		XH				J1			J2

Note: The square bond pad of foot pins on terminal's back is No.1. To the other side, they are No2, No3 and No.4 in turn.
