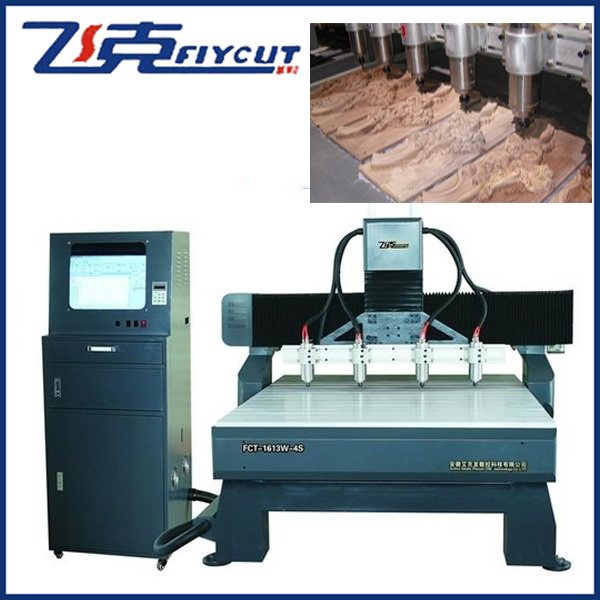

Product Specifications
| Prod Model: |
FCT-1625W-4S |
| Markets: |
North America,Southeast Asia,Mid East |
| Controlling Mode: |
CNC |
| Feed Mode: |
Mechanical |
| Spindle Layout: |
Horizontal |
| Certification: |
CE, ISO |
| Color: |
Customized |
| Condition: |
New |
| Customized: |
Customized |
| Type: |
CNC Wood Relief Machine |
| Spindle Number: |
4 Spindles |
Product Description
Features:
1. The lathe is founded by industrial pipe welding, box-type structure to ensure the high stablity.
2. The special instruments to eliminate welding stress, high-precision machining planer ensure the precision and no deformation.
3. The major machine body makes the stability and no shacking in high speed.
4. XYZ all apply imported screw, high precision gear frame linear square guide, ensure the high accuracy.
5. The professional mechanical design, scientific structure and generous appearance, gantry height 200mm can ensure Z axis working size.
6. XYZ axis use anti-dust system, prevent dust during working, make sure the long lifespan of spare parts.
7. High quality driver motors, spindle motors, cables, inverters,etc.
8. Professional CNC control system, can compatible with many kinds CAM software, suc as TYPE3/ARTCAM/UG/PRO-E/MASTERCAM.
Application:
Widely used in Antique furniture with relief carving, wood carving, furniture-processing, instrument making, 3D light box making, Aluminum composite panel, funding mound decorative doors and windows processing etc.
It can be customized more large format and special format models, and it can be optional standard configuration spindle or importing,oil lubrication system, vacuum inhaling and dust collect etc.
Technial Parameters:
Model | FCT-1613W-4S | FCT-1625W-4S | FCT-2013W-6S | FCT-2018W-6S |
| Machine size | 1600×1500mm | 1600×2625MM | 2040×1500mm | 2040×2000mm |
| Working size | 1600×1300×200mm | 1600×2500×200mm | 2000×1300×200mm | 2000×1800×200mm |
| Spindle power | Water cooling 1500W×4 | Water cooling 1500W×4 | Water cooling 800W×6 | Water cooling 800W×6 |
| Spindle rotation | 6000--24000rpm |
| Motor driver | Stepper motor driver (Chinese servo motor and Japan servo motor is optional) |
| TOOL diameter | 3.175, 4, 6mm |
| Machine structure | Industry square tube structure |
| Transmission | TBI ball screw or high accuracy gear rack | High accuracy gear rack |
| XYZ rails | PMI square rails |
| Dust-proof system | XYZ high quality dust cover |
| Mechanical accuracy | less than 0.03/300mm |
| Engraving speed | 8000mm/min |
| Data transmission | PC-connection directly |
| Support format | G code or HPGL |
| Working voltage | AC220V/50Hz or 380V/50Hz |
| Net weight | 600kg | 1300kg | 1000kg | 1200kg |
If you are not sure which machine is suitable,please refer to the following questions then we will recommend the suitable one.
1) what materials do you want to engrave or cut?
2) what's the max. size of the materials(Length*Width*Thickness)?
Any question,please kindly contact with me:
BettyLiu(overseas department sales)
Tel:+86 18709866712
Anhui AIkefa (Flycut) CNC Technology Co., Ltd. is a high-tech enterprise which researches, develops, sells and offers services of numerical control and photoelectric products. The company has independent license for export and import, bears" Innovate technology and creat valus for users" as its managing idea to design kinds of practical numerical and photoelectric products that can be easily operated.
