Zhejiang KRIPAL Electric Co., Ltd. >> Magnectic Contactor Reversing

Magnectic Contactor Reversing

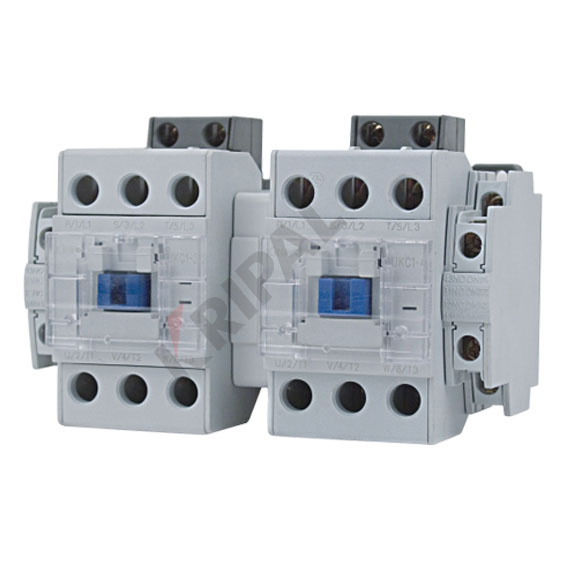

Name: Magnectic Contactor Reversing
Brand: china-manufacturer-directory.com
SKU: 686231185
Availability: InStock
Rating: 4.3 (51 reviews)

Supplier:	Zhejiang KRIPAL Electric Co., Ltd.
Price:	Negotiable/Piece
Min Order:	500/Piece
Quantity::
Trade Terms:	FOB

Product Specifications

Markets:	South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Theory:	Thermal Relay
Size:	Normal

Product Description

Magnectic contactor reversing Reversing

Number of poles: 3P, 4P
Coil type: AC, DC
AC coil voltage:
50Hz: 24, 42, 48, 100, 110, 220, 240, 380, 400, 415, 440, 500, 550V
60Hz: 24, 48, 110, 120, 208, 220, 240, 277, 380, 440, 480, 600V
DC coil voltage:
12, 20, 24, 48, 60, 80, 100, 110, 125, 200, 220, 250V

Main Characteristics

1. One frame with four rated current classes
2. 3 pairs of main contacts
3. Design of anti-electric shock cover
4. Fixed by guide or screw
5. Small size: 44mm width
6. 1NO+1NC auxiliary contacts are of standard designed
7. The accesssory can be mounted on the top or side
8. Be connected with the thermal overload relay directly

Rated current	AC3(IEC60947)				Auxiliary	Type
Rated current	220~240V	380~440V	500~550V	690V	Auxiliary	Type
9A	2.5kW11A	4kW9A	4kW7A	4kW5A	1NO+1NC	UKC1-9R
12A	3.5kW13A	5.5kW12A	7.5kW12A	7.5kW9A	1NO+1NC	UKC1-12R
18A	4.5kW18A	7.5kW18A	7.5kW13A	7.5kW9A	1NO+1NC	UKC1-18R
22A	5.5kW22A	11kW22A	15kW22A	15kW18A	1NO+1NC	UKC1-22R
32A	7.5kW32A	15kW32A	18.5kW28A	18.5kW20A	1NO+1NC	UKC1-32R
40A	11kW40A	18.5kW40A	22kW32A	22kW23A	1NO+1NC	UKC1-40R
50A	15kW55A	22kW50A	30kW43A	30kW28A	1NO+1NC	UKC1-50R
65A	18.5kW65A	30kW65A	33kW60A	33kW35A	1NO+1NC	UKC1-65R
75A	22kW75A	37kW75A	37kW64A	37kW42A	1NO+1NC	UKC1-75R
85A	25kW85A	45kW85A	45kW75A	45kW45A	1NO+1NC	UKC1-85R
The voltage of coli: AC50/60Hz
50Hz: 24, 42, 48, 100, 110, 220, 240, 380, 400, 415, 440, 500, 550V
60Hz: 24, 48, 110, 120, 208, 220, 240, 277, 380, 440, 480, 600V

Founded: In 1987;

People of the staff: 500;

Engineers: More than 30

QA/QC: More than 20

Certificate: CCC, CB, CE, UL, TUV, Semko, KEMA, SAA, ISO9001

The land space of the company: Amounts to 20000m2

What we do: Products' Design, mold building, production of parts (injection & punching), assembling, and products' Inspection

Main products: Isolator switch, changeover switch, waterproof switch socket, industrial plug socket, cable float level switch, terminal junction box, solar photovoltaic inverter, circuit breaker contactor relay and etc.

Main market: Europe, Australia, Middle-east, Asia, Southeast Asia, America, Africa
