Product Specifications

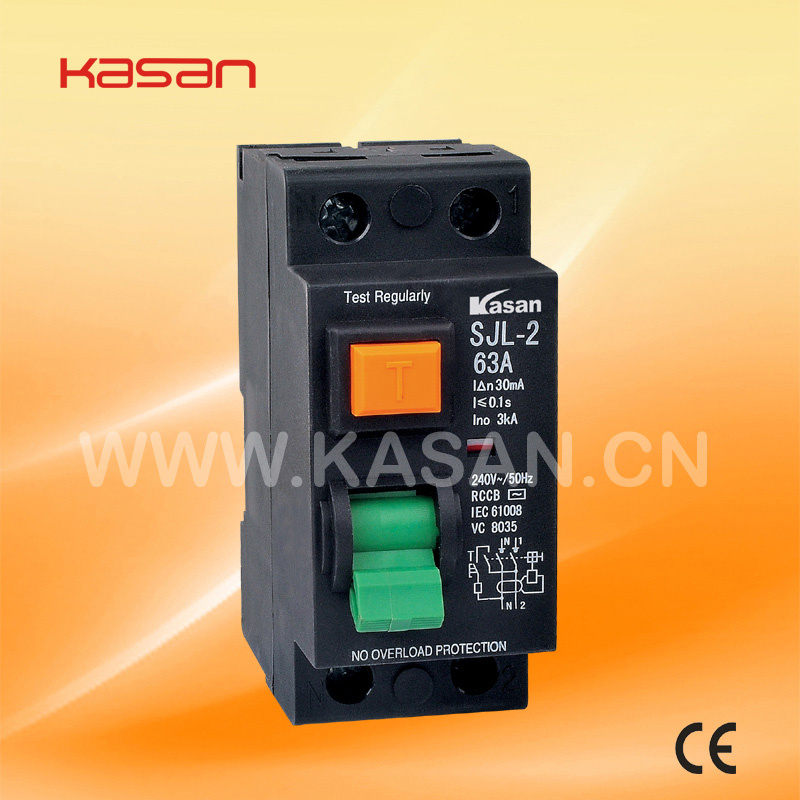

| Prod Model: |
SJL-2 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Pole Number: |
2p 4p |
| Poles Number: |
2 |
| Certification: |
CE |
| Type: |
Circuit Breaker |
Product Description
Application
1. For protection against risk of fire due to live to earth fault where fault current is insufficient to cause over-current protection device to operate.
2. For protection against risk of shock from indirect contact with equipment suffering a live to earth fault.
3. For protection against shock in potentially hazardous environment.
4. As supplementary protection against shock from directly touching live parts
5. Note: An RCCB must not ve used as the sole means of protection against touching live parts
| KSJL-2 Electrical features: |
| Standard | IEC/EN61008 |
| Mode | Electro-magnetic type, electronic type |
| Type (wave form of the earth leakage sensed) | AC, A |
| Rated current In | 16, 25, 40, 63A |
| Poles | 2P, 4P |
| Rated voltage Ue | AC 230/400V |
| Rated sensitivity IΔ n | 0.03, 0.1, 0.3A |
| Insulation voltage Ui | 500V |
| Rated residual making and breaking capacity IΔ m | 500 (In=25A/40A)
630 (In=63A) |
| Short-0circuit current IΔ c | 6000/10000A |
| Breaker time under IΔ n | ≤ 0.1s |
| Rated frequency | 50/60Hz |
| Rated impulse withstand voltage(1.2/50)Uimp | 6000V |
| Dielectric test voltage at ind. Freq. for 1 min | 2.5kV |
| Pollution degree | 2 |
