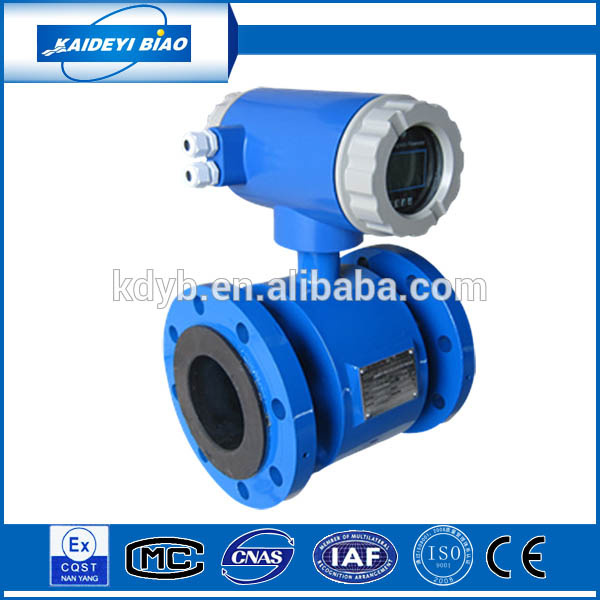

Product Specifications
| Prod Model: |
KDLD-Y/F |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| End Connection: |
Flange Type Flow Meter |
| Flange Standard: |
GB, DIN, ANSI/Asme, JIS, etc |
| Pressure Grade (MPa): |
0.6, 1.0, 1.6, 4.0, etc. |
| Pipe Material: |
Ss304 |
| Electrode Material: |
Ss316, Hb, Hc, Ti, Ta, PT, . |
| Liner Material: |
PTFE, Pvf, FEP, Cr, PU, Rubber, etc. |
| Power Supply: |
Battery-Powered, 24VAC, 220VAC |
| Signal Output: |
Pulse, 4-20mA |
| Communication: |
RS485, Modbus, Hart, Profibus, RS232, GPRS |
| Type: |
Electromagnetic Flow Meter |
| Measuring Principle: |
Electrical Principles |
| Accuracy: |
?à0.2-0.5% |
| Main Application: |
Wastewater |
| Measuring Media: |
Conductive Fluid |
| Size: |
Dn10~3000 |
| Sensor: |
Flange/Remote/Threaded/Inserted/Battery Powered |
Product Description
Technicial Specifications:
SENSOR
Model KDLD
Ex-design Exdm II CT6
Size DN 6-DN3000
Pressure Grade 0.6-4.0Mpa
Housing Material Carbon steel
Straight Pipeline SS304
Flange Material Carbon steel, stainless steel
Liner Material Rubber, PTFE, PUR, FEP, PFA
Seal Material PTFE
Electrode Material SS316, Hastelloy, Ti, Ta, PT
Conductivity above 5 μS/cm
Fluid Temperature -20~+150 Deg C(PTFE lining)
-20~+80 Deg C (Rubber lining)
Ambient Temperature -25~+60 Deg C(remote type)
-10~+60 Deg C (compact type)
Protection Grade IP65, IP67, IP68
CONVERTER
Type Compact type/ remote type
Power supply 20-36VDC/85-250VAC
Power consumption Below 20W(after connected to the flow sensor)
Ambient temperature -10~+60 Deg C
Relative humidity 5%~90%
Housing material Cast aluminum
Cable connection M20*1.5 1/2NPT
Exciting current 125mA, 187.5mA, 250mA, 500mA
Measuring range 0.1~15m/s
IP grade IP65
Accuracy 0.5%
Repeatability index 0.2643
Signal output Pulse/4-20mA
Communication RS485, Modbus(standard)
RS232, HART, , Profibus, GPRS (opitional)
Display Digital 2-line LCD, able to display instantaneous positive and negative flow and accumulate flow
Common function Flow cutoff, empty pipe alarm, upper limit alarm, lower limit alarm, exciting alarm, etc.
Especial function EEPROM, hour gross recording, far-untouched controlling converter
Kaifeng Kaide Flow Instrument Co., Ltd., established in 2002, is a high-tech enterprise specialized in the R&D and manufacture of flow instruments. Located in the base of Chinese flow instrument - Kaifeng City, we have full access to the most advanced technology and thus intend to deliver our high-quality service internationally with great confidence.
At present, we are mainly dealing in Electromagnetic Flowmeters, Vortex Flowmeters, Turbine Flowmeters and some kinds of Throttling Devices. As we put a lot of concern into quality control, we attained ISO9001: 2000 QMS (Quality Management System) certification at a very early time.
Our commitment has won us a lot of reputable domestic customers from Chinese oil giant - Zhongyuan Oil Field to famous research institute of Wuhan University of Technology. They all established a pleasant and long-term business relationship with us. We also expanded our service to overseas markets and plenty of foreign customers visited our company to bond us in technology and business. We have been providing OEM service for many domestic and overseas customers.
"Accuracy and attitude" is our motto. We believe that, with high-quality products and services, long-term relationships are always available between worldwide guests and our company. If you are interested in any of our products, please do not hesitate to contact us. We will do our best to meet your requirements.
