Product Description
Magnetic Separator/Magnetic Beneficiation/Drum Separator

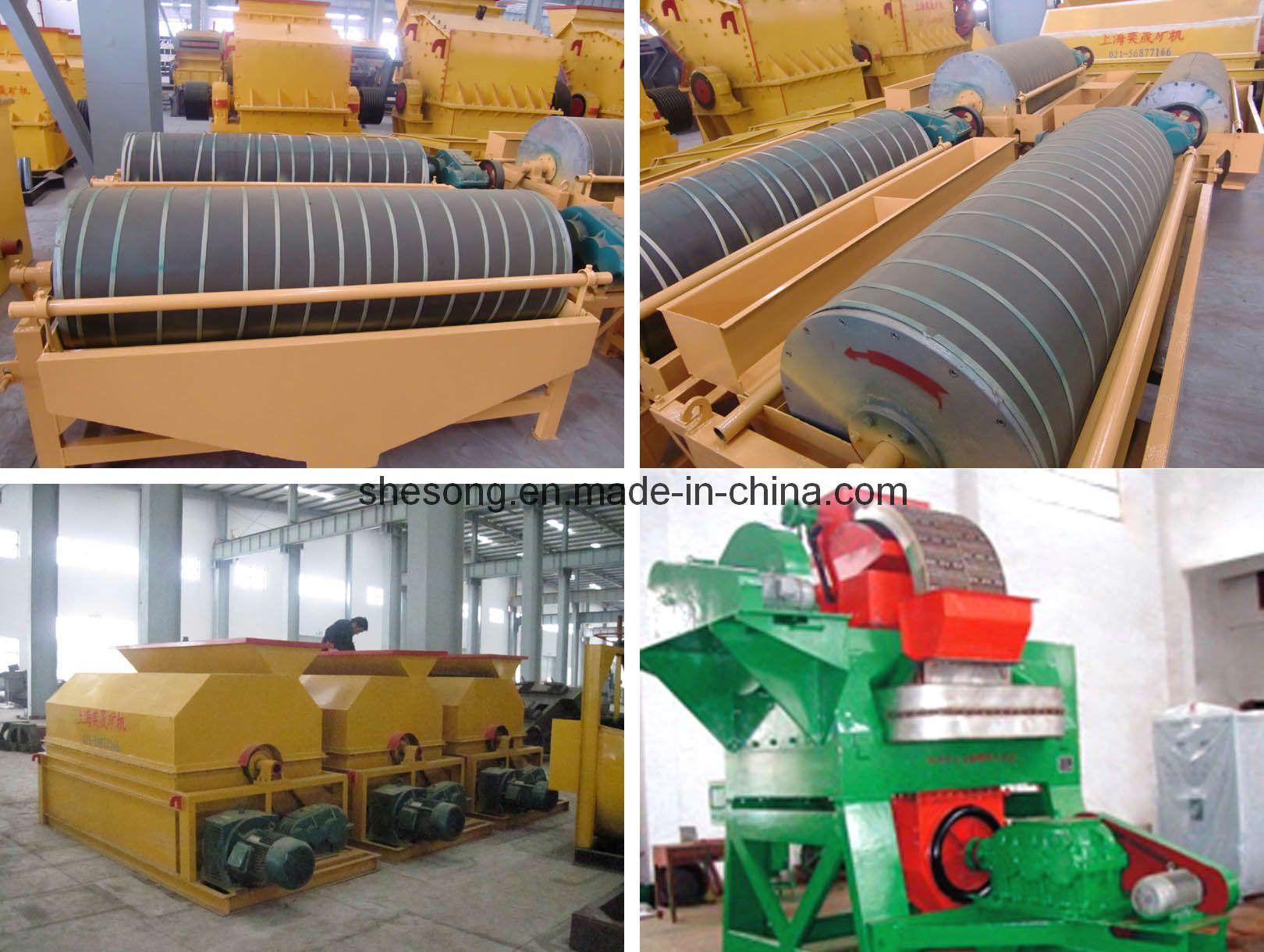

Dajia is one of the largest magnetic separator/magnetic beneficiation/drum separator manufacturers in China. Our magnetic separator/magnetic beneficiation/drum separator falls into wet magnetic separator/wet magnetic beneficiation/wet drum separator and dry magnetic separator/dry magnetic beneficiation/dry drum separator.
Permanent Cylindrical Wet Magnetic Separator/wet magnetic beneficiation/wet drum separator:
Permanent cylindrical wet magnetic separator/wet magnetic beneficiation/wet drum separator is use for wet separation of ferromagnetic minerals and non-ferromagnetic minerals. Wet magnetic separator/wet magnetic beneficiation/wet drum separator can work continuously with its large working clearance, good magnetic depth, and strong processing capacity. Wet magnetic separator/wet magnetic beneficiation/wet drum separator working principle is that when the pulps enter the magnetic zone, the ferromagnetic minerals are absorbed at the wall of the cylinder. The weekly magnetic and non-magnetic minerals are then swung off. Thus, the ferromagnetic minerals and non-ferromagnetic minerals are separated by this permanent cylindrical wet magnetic separator/wet magnetic separator/wet drum separator.
The cylinder of this permanent cylindrical wet magnetic separator/wet magnetic beneficiation/wet drum separator can be matched with three kinds of tanks: CTS, CTN and CTD for different separation requirements. The CTS is suitable for roughing and concentrating minerals with a granularity range from 0 to 6mm. CTN is suitable for both roughing and concentrating minerals with a granularity range from 0 to 0.6mm and recycling dense media in coal preparation industry. CTD is suitable for roughing and concentrating minerals with a granularity range from 0 to 0.5mm. It is particularly suitable for concentrating of minerals with a granularity range from 0 to 0.15mm.
Permanent Cylindrical Dry Powder Magnetic Separator:
Permanent cylindrical dry powder magnetic separator is available from one cylinder to four cylinders. It is a magnetic separator that is used to continuously remove iron from dry powder materials. This magnetic separator adopts NdFeB as the magnetic source and is of strong magnetic force, strong suction, high efficiency, free maintenance, good energy efficiency, safe operation, and more characteristics. The charging speed is controllable for different granular requirements. This magnetic separator is widely used for applications in grinding material and apparatus, fireproofing materials, non-metal mineral processing, carbon black, food, fodder and chemical material industries.
Working Principle:
When the pulp flows to the tank in the magnetic separator/magnetic beneficiation/drum separator, the mineral granules spreads under the impact of the water flow from the show pipe. As a result of the magnetic force, the magnetic minerals concentrate as a lump or a chain. This lump or chain is then absorbed on the cylinder owing to the magnetic force. When the magnetic lump or chain rotates with the cylinder, gangues and other non-magnetic minerals falls off from the lump or chain and are then discharged with the pulp. The lump or chain left at the wall of the cylinder is ore concentrate. It is then discharged off from the magnetic separator/magnetic beneficiation/drum separator with water.
Specifications of Magnetic Separator:
Magnetic separatorr
Bitmap
Model
CTB600X1200
CTB600X1800
CTB750X1800
CTB900X1800
CTB1050X2400
CTB1200X3000
CTB1500X3000
Magnetic field strength(oe)
1450
1500
1550
1800
1800
2000
2000
Capacity(t/h)
8-15
15-25
30-45
35-60
60-95
80-150
120-200
Motor power(kw)
1.5
2.2
3
4
5.5
7.5
11
Weight(kg)
910
1340
2050
3000
5020
7800
9600
Dry Magnetic Separator
Model
GYC-60B
CYC-60B-1
GYXY-2X60
GYC-3X60
GYC-3X80
GYC-4X80
Roller diaxlength(mm)
Φ320X600
Φ320X600
Φ320X600
Φ320X600
Φ404x800
Φ404x800
1, 9, 8, 8, 1, 181, 16, 2 Bitmap Magnetic induction (oe)
1500-12000
1500-12000
1500-12000
1500-12000
1500-12000
1500-12000
Roller quantity(per)
1
1
2
3
3
4
Roller speed(r/min)
47
47
33-172
34.5-172(adjustable)
54.6-172(adjustable)
64.5-172(adjustable)
Feeding size (mm)
0.06-25
0.063-25
0.05-25
0-8
0-8
0-8
Motor model
Y801-4
Y901-4
Y801-4
ZBW-15
ZBW-15
ZBW-15
Motor power(kw)
0.75
0.75
0.75
1.1
1.5
2.2
Dimension (L×W×H)(mm)
860X550X840
860X550X840
1150X920X1500
1050X1025X1700
1770X1260X2400
2300X1000X2750
Capacity(t/h)
0.5-2.5
0.1-3
0.5-2.5
0.8-2.5
1.5-2.5
1.5-2.5
Weight(t)
0.5
0.65
0.85
1.2
1.5
2.4
Application scope and introduction
Fine separating
Fine separating
Fine separating
with vibrating feeder
with vibrating feeder
Fine separating
Double Vertical Ring and Pulsating High Gradient Magnetic Separator
Model
SSS-I-1000
SSS-I-1200
SSS-I-1500
SSS-I-1750
SSS-I-2000
Ring-diameter(mm)
1000
1200
1500
1750
2000
Rated initiation power(kw)
25
35
45
63
72
Capacity(t/h)
4-10
10-20
20-35
30-50
40-75
Rated backgroud intensity(t)
1.0
1.0
1.0
1.0
1.0
Feeding size(mm)
0.01-2
0.01-2
0.01-2
0.01-2
0.01-2
Motor Power(pw)
4.5
6.6
8.4
13.5
16.5
Weight(kg)
8000
12000
21000
38000
51000
