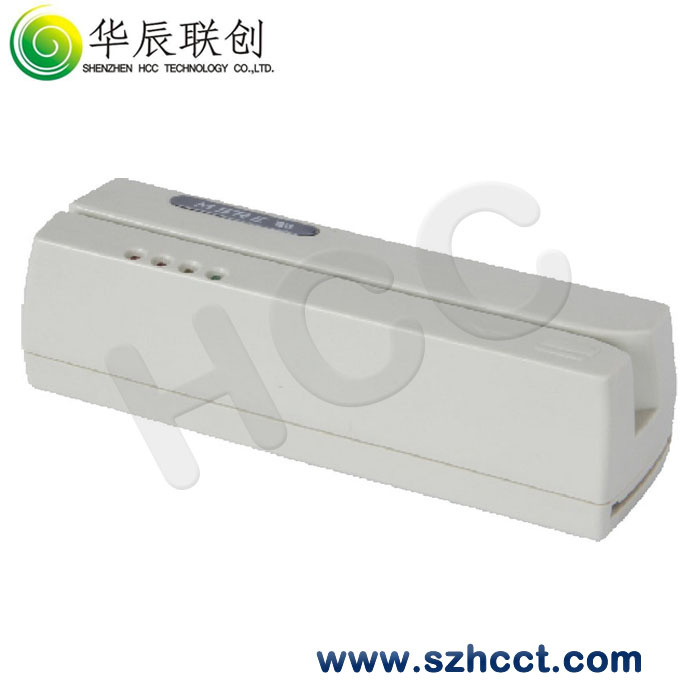

Magnetic Stripe Reader/Writer (Lo-Co Compatible) (HCC2600)
Product Specifications
| Prod Model: |
HCC2600 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Card Standards: |
IBM, ISO, DIN, ANSI |
| Manual Feeding Speed: |
20~120mm/Sec |
| Cable Length: |
2m |
| Housing: |
Plastic PC, Ivory Color |
Product Description
Magnetic Stripe Reader/Writer (Lo-Co Compatible) (HCC2600)
GeneralHCC2600 Magnetic Stripe Reader/Writer provides reliable magnetic stripe reading/writing solution for bank business, retail, security and other related systems, it offer user a card reader/writer solution that will complement many applications.
Features:1. Compact size
2. Manual swipe to read/write data with a single pass
3. Read/ write magnetic stripe card or passbook in both ISO/IBM format
4. Read/ write up to triple tracks (track 1/2 or track 2/3 or 1/2/3)
5. IC card module at option
6. Tri-color LED/beeper for power on/read/write operations
7. PIN pad port/two extra serial port expander available
8. Well designed software/hardware and imported key components ensure the whole excellent performance
9. Module structure technology applied to ensure high efficiency and reliability
|
Card standards |
IBM, ISO, DIN, ANSI |
|
Manual feeding speed |
20~120mm/sec |
|
Writing density |
1st track 210 BPI (max 76 characters) |
|
2 nd track 75 BPI/210 BPI (max 36/104 characters) |
|
3 rd track 210 BPI (max 104 characters) |
|
Interface |
RS232, 2400/4800/9600 bps at option |
|
Reliability |
MTBF > 20000H, MTTR < 30 MIN |
|
Magnetic head lifetime |
Min. 500,000 swipes |
|
Power supply |
DC +9V 750mA / +5V 320mA by host computer |
|
Working conditions |
0~40ºC15%~85% RH non-condensing |
|
Dimensions (L ´W ´H) |
210mm ´60mm ´60mm |
|
Cable length |
2m |
|
Weight |
1.4Kg |
|
Housing |
Plastic PC, Ivory color |
Model Description
2600x1-x2x3
|
Type |
X1 |
Interface |
X2X3 |
Magnetic Tracks |
2600
(MSRE, With Lo-Co) |
R |
RS232 Series port |
44 |
1&2 tracks |
|
U |
|
55 |
2&3 tracks |
|
|
|
66 |
1&2&3 tracks |
|
|
|
77 |
IBM 4777 Compatible |
|
|
|
|
|
