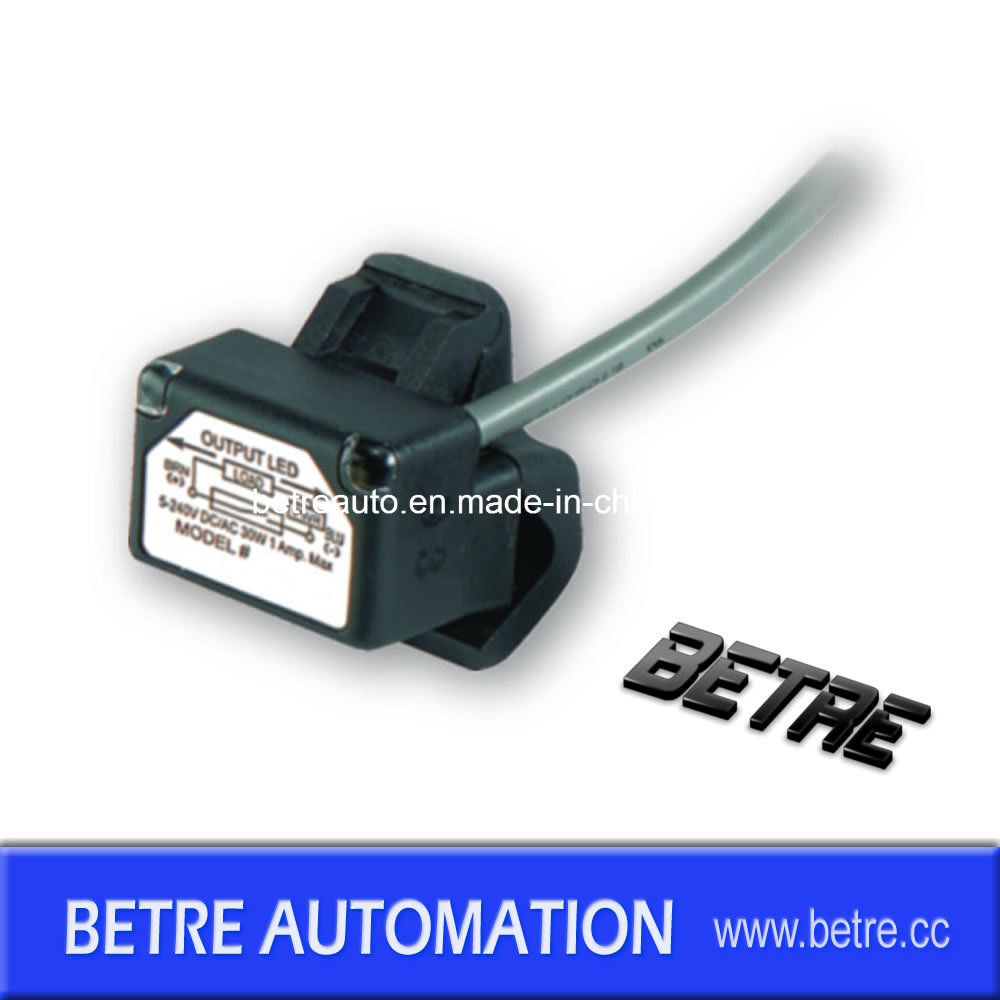

Magnetic switch Bc-09
Used for pneumatic cylinders.
| Type | BC-09R | BC-09N | BC-09P |
| Wiring Method | 2-Wire Type | 3-Wire Type |
| Switching Logic | SPST, Normally Open | Solid State Output,Normally Open |
| Sensor Type | Reed Switch | NPN Current Sinking | PNP Current Sinking |
| Operating Voltage | 5~240V DC/AC | 5~30V DC |
| Switching Current | 1Amp.max |
| Contact Rating 1) | 30W max. |
| Current Consumption | - | 42mA/24V DC max. | 30A/24V DC max. |
| Voltage Drop | 3.5V max. | 1.5v/0.5A max |
| Leakage Current | - | 0.01mA max. |
| Indicator | Red LED | Power:Green LED Output: Red LED |
| Cable | Φ4.5,2C,PVC; Any Length | Φ4.5,3C,PVC; Any Length |
| Thread Pin | M8*3 Connector |
| Operating Frequency | 200Hz | 1000Hz |
| Magnetic Requirement 2) | 60 Gauss | 40 Gauss |
|
| Temperature Range | -10 ~ +70ºC |
| Shock 3) | 30G | 50G |
| Vibration 4) | 9G | 9G |
| Enclosure Classification | IEC529, IP67 |
|
| Protection Circuit | 4 | 3, 4 |
NOTE:
1)WARNING:Never exceed rating (Watt=Voltage×Amperage)-Permanent demage to sensor will occur.
2) Measuring standard target: Φ15.5×Φ8×5t(Anisotropy rubber magnet).
3) Sin wave /X,Y,Z 3 directions/3 times each direction/11 ms each time.
4)Double amplitude 1.5mm/10Hz~55Hz~10Hz (Sweep 1 min) /X,Y,Z 3 directions / 1 hour each time.
5)1=None / 2=Short-circuit /3=Power Source Reverse polarity /4=Surge Suppression.
