Making Glass Beveling Polishing Machine Yd-Bm Series

Name: Making Glass Beveling Polishing Machine Yd-Bm Series
Brand: china-manufacturer-directory.com
SKU: 754267365
Availability: InStock
Rating: 4.4 (123 reviews)

Supplier:	LiaoDa (LAD) Glass Machinery Co., Ltd.
Price:	Negotiable/Piece
Min Order:	1/Set
Quantity::
Trade Terms:	FOB

Product Specifications

Prod Model:	YD-BM-Series
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
1.New Style:	Pretty
2.Good Looking:	Bright
3.Vertical Straight Line:	Suitable for Flat Glass
4.Suitable For Big & Mosaic Glass:	More Select
5.PLC Control:	Multifunctional
6.Glass Speed:	08.3m/Min
7.24hours Running Without Stop:	Save Electricity
8.Sturdy Structure:	Easy for User to Operate
9.Fast Shipping:	Can Make Soon
10.Occupies Small Space:	Working Stable
Type:	Glass Beveling Machine
Certification:	CE
Control System:	PLC
Glass Washing Machine Type:	No

Product Description

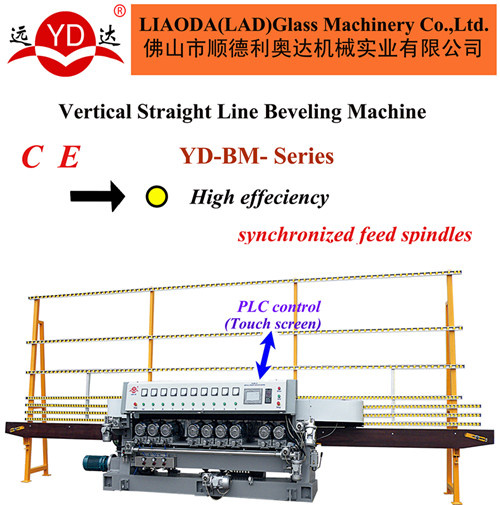

Vertical Straight Line Beveling Machine

Specifications
Glass Machine
(1). Different wheels with pneumatic polishing for option
(2). PLC controller
(3). High effeciency synchronized feed spindles

Glass machine

1. Thanks to pneumatic adjusting for polishing wheel, the machine can polish glass with fine and clear surface.

2. With PLC controller, all processing data are set and adjusted on the screen, which greatly facilitate production. Here are the basic information:

Module: YD-BM-Series
Wheel number: For option
Min. Glass size: 150x150mm
Glass thickness: 5-19mm
Bevel angle: 3-30 degree
Max. bevel width: 35 mm
Glass speed: 0.8-3 m/min
Compress air consumption: 1It/min
Pressure: 6kg/cm2

Model Number	YD-BM-9	YD-BM-10	YD-BM-10 S	YD-BM-10-45	YD-BM-11	YD-BM-13
Total nr.of spindle	9	10	10	10	11	13
Glass thickness(mm)	5-19	5-19	5-19	5-19	5-19	5-19
Min.glass size(mm)	150×150	150×150	30×30	150×150	150×150	150×150
Bevel angle (degree)	3-30	3-30	3-45	3-30	3-30	3-30
Max.bevel width(mm)	35	35	35	35	35	35
Glass speed(m/min)	0.8-3	0.8-3	0.8-3	0.8-3	0.8-3	0.8-3
Compressed air Consumption(It/min)	<1	<1	<1	<1	<1	<1
Power(kw)	21	23.5	25	23.5	25	30
Outer dimension(m)	7.0×1.2×2.6	7.2×1.2×2.6	7.2×1.2×2.6	7.2×1.2×2.6	7.2×1.2×2.6	8.0×1.2×2.6
Weight(kg)	3000	3500	3500	3500	4000	4500

LIAODA(LAD) Glass Machinery Co., Ltd. is the consignee of Yuanda Glass, which is one of the leading glass machinery designer and fabricator in China in manufacturing popular glass cold and hot processing machinery.

Since 1988 we have worked out first Chinese glass edging machine, with our continuous research and development, in 2000, our first horizontal flat glass tempering furnace has came into being, now hundreds of our intelligent and diligent machines have been running at the sites of domestic and overseas.

All our engineers have years of working experiences in glass fabricating and glass machine manufacturing. On the base of absorbing the latest technologies, we know very well the advantages and disadvantages of all types of existing glass machines, therefore our compact design and sophisticated manufacturing center enable us to construct the most top quality of glass machines at the possible lowest cost.

A LITTLE MORE PRACTICAL, A LITTLE MORE INNOVATIVE is our Motto, on the way of modernization and globalization, we will commit ourselves to satisfy your requirements and our full experiences will absolutely be beneficial to any kind of your needs in flat glass processing.
