Ningbo Blin Machinery Co., Ltd. >> Manual Surface Grinder, Grinding Machine (BL-M618/820/1022)

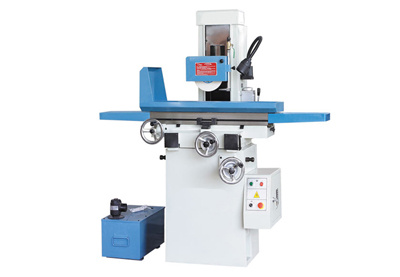

Manual Surface Grinder, Grinding Machine (BL-M618/820/1022)

Name: Manual Surface Grinder, Grinding Machine (BL-M618/820/1022)
Brand: China-Manufacturer-Directory.com
SKU: 771276235
Availability: InStock
Rating: 4.3 (141 reviews)

Supplier:	Ningbo Blin Machinery Co., Ltd.
Price:	Negotiable/Set
Min Order:	1/Set
Quantity::
Trade Terms:	FOB,CFR,CIF

Product Specifications

Prod Model:	BL-M618/820/1022
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Table Max. Cutting Area(LWH):	500190335/520220490/560250490mm
Table Size(L*W):	460180/480200/500*250mm
Travel Of Table(Longitudinal/Cross):	500/190;520/220;560/250mm
Table T Slot(No.*Width):	1*14mm
Max Distance From Spindle Center To Tabl:	335/490/490mm
Wheel Size(O.D.WI.D.):	1801331.75/2002031.75/2002031.75mm
Slide Way:	V-Type Rail with Steel-Ball/V-Type Double Rail Wit
Max. Table Loading:	200/200/250mm
Table Speed:	3-23mm/Min
Front And Rear Hand Wheel Feed:	0.02/Gra 2.5/Rev 0.02/Gra 2.5/Rev 0.02/Gra 4/Re
Type:	Surface Grinding Machine
Controlling Mode:	Artificial
Automatic Grade:	Semiautomatic
Precision:	High Precision
Processing Object:	Metal Surface

Product Description

Manual Surface Grinder,Grinding Machine(BL-M618/820/1022)

Features:
Spindle adopts super precision P4 ball bearing,after measuring pre strict pressure,assembled in the greenhouse,and equipped with a completely waterproof mazy design,to ensure the service life and the grinding of bearing surface roughness,can also choose ball screw.
Compact structure,easy to operate
Longitudinal guideway adopts rolling guideway,rope wheel traction,light and flexible.

Specification:

Item	Unit	BL-M618	BL-M820	BL-M1022
Table max. cutting area(L×W×H)	mm	500×190×335	520×220×490	560×250×490
Table size(L×W)	mm	460×180	480×200	500×250
Travel of table(Longitudinal/cross)	mm	500/190	520/220	560/250
Table T slot(NO.×width)	mm	1×14
Max distance from spindle center to table	mm	335	490	490
Wheel size(O.D.×W×I.D.)	mm	Φ180×13×Φ31.75	Φ200×20×Φ31.75	Φ200×20×Φ31.75
Spindle speed: 50Hz/Variable frequency motor(opt.)	rpm	2850/0~6000
Slide way	/	V-type rail with Steel-ball	V-type Double rail with Steel-ball	V-type Double rail with Steel-ball
Max. table loading	Kg	200	200	250
Table speed	m/min	3-23
Front and rear hand wheel feed	mm	0.02/gra 2.5/rev	0.02/gra 2.5/rev	0.02/gra 4/rev
Vertical hand wheel feed	mm	0.01/gra 1.25/rev	0.01/gra 1.25/rev	0.01/gra 2/rev
Spindle motor	kw	1.1	1.5	1.5
Cooling pump	kw	0.4
Overall size(L×W×H)	mm	1240×1080×1680	1260×1140×1760	1280×1250×1880
G.W./N.W.	kg	750/650	850/750	1100/1000

BLIN MACHINERY Co., Ltd. (China) is a high reputed professional CNC Machine Tool manufacturer and exporter, main products are CNC Lathe, CNC Milling Machine(CNC Machining Center). Has total three production bases in China with more than 35 years history for machine tools manufacturing. Set overseas sales center in NINGBO city, include warehouse& showroom covered area 1500 square meter.

Besides our self-manufactured machines, we also cooperating closely with a number of leading machine builders in China for long term. We may provide nearly all types regular and special machines which customers need.

Focusing on international market, BLIN has placed the priority on both product quality and service. Our quality program starts as soon as customer's order is placed, and will follow through every stage including manufacturing, assembly, final testing, packing, and shipment to ensure the quality and spec. Strictly as customer's requirements. We promise every provided machine will be strictly tested and be ready to use before delivery.

By now, we already set up stable and long term business with customers from most countries in the world, such as USA, Mexico, Colombia, Ecuador, Argentina, Thailand, Indonesia, AUTRALIA, Iran, India, Russia, Germany, Poland, Spain, Finland, Netherlands etc. Our many models are hot sales in overseas market. We are sincerely prepared to co-operate with customers all over the world for mutual benefit and progress.

We look forward to hearing from you at any time!
