1. Outline:

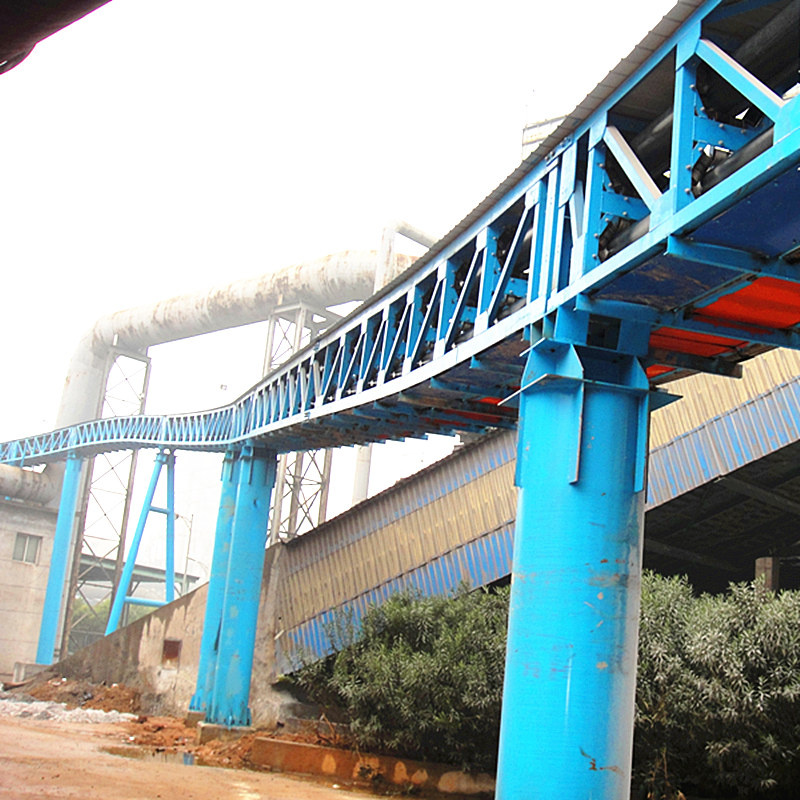

(1)The DG tubular belt conveyor (hereinafter referred to as tubular belt conveyor) is a new type of conveying equipment for bulk materials researched and developed by our company through absorbing advanced technology from abroad.
(2)The conveying system can be a single machine or combination of multiple machines, which is used to convey various powdery, granular and lumpy materials with bulk density of generally less than 2.5t/m3.
2.Features:
(1)Large conveying capacity
(2) heat resistance
(3)Cold resistance
(4)Waterproofing
(5)Long service life
(6)Corrosion protection
(7)Explosion protection
(8)Fire retardance
(9)Easy realization of operation
(10)The conveying system can be a single machine or combination of multiple machines
(11)Can convey various powdery, granular and lumpy materials
3.Application:
DG type pipe belt conveyors are widely used in metallurgy, mining, coal, ports, power plants, building materials, chemicals, light industry, petroleum and other industries. With bulk density of generally less than 2.5t/m3.
4.Parameters:
(mm)
Tube dia. | 100 | 150 | 200 | 250 | 300 | 350 | 400 | 500 | 600 | 700 | 850 |
m/s
Belt speed | (m3/h) Conveyingcapacity |
| 0.8 | 17 | 38 | 67 | 118 | 141 |
|
|
|
|
|
|
| 1.0 | 21 | 48 | 83 | 148 | 176 | 238 |
|
|
|
|
|
| 1.25 | 27 | 59 | 104 | 185 | 218 | 297 | 486 | 698 |
|
|
|
| 1.6 | 34 | 76 | 133 | 236 | 282 | 380 | 622 | 893 | 1244 | 1616 | 2327 |
| 2.0 | 42 | 95 | 166 | 296 | 352 | 475 | 777 | 1116 | 1555 | 2022 | 2909 |
| 2.5 |
| 119 | 208 | 370 | 441 | 594 | 972 | 1395 | 1944 | 2528 | 3636 |
| 3.15 |
|
|
| 464 | 556 | 748 | 1224 | 1758 | 2449 | 3185 | 4581 |
| 4.0 |
|
|
|
| 705 | 950 | 1555 | 2232 | 3110 | 4044 | 5818 |
| 4.5 |
|
|
|
|
|
| 1749 | 2511 | 3499 | 4536 | 6545 |
| 5.0 |
|
|
|
|
|
| 1944 | 2790 | 3888 | 5056 | 7272 |
5.Our service
(1)Design and select suiable equipment
(2)Layout draw, foundation draw and detail equipment manual. Timely report your production schedule and photos for keeping monitoring.
(3)Shipping
(4)After-service, can dispatch engineer to the site to guide the installation, commissioning, operation etc if client need.
Anhui Pandeng Industries Joint Stock Co., Ltd belongs to Anhui Pandeng Group established since 1974, which has total capital of 106000000USD, registered capital of 58000000USD, catches the size of 463500 square meters, owns over 1000 workers. Group owns three famous brand of "PANDENG", "OUNA", "KINSON".
We are specialized in developing, designing, manufacturing bulk material handling system, like belt conveyor, pipe conveyor, bucket elevator, screw conveyor, conveyor roller, idler, pulley, hydraulic coupling, backstop, various kinds of conveyor belt etc nearly all products related to the conveyors. The products mainly applied to mining, metallurgy, power generation, heating, sea port, grain, chemical etc industries.
Our group has 5 subsidiary corporation, owns over 100 patents. Two sub-companies have attained ISO9001: 2008 Quality Management System Certificate, MA certified enterprises, Member of China Heavy Machinery Industry Association, Bank AAA credit class enterprise, China top 10 conveying machinery industries etc. During 40years, we served many Global 500 companies, such as SINOPEC, CNPC, APP, SHENHUA GROUP CORP, SGCC, Conch Group, CHALCO, Baosteel, etc.
Professional design, developing and manufacturing, installation&commissioning, after-service of Anhui Pandeng Group has helped us to win the China famous Bulk Material Handling system leading position. We also built stable and good cooperation relationship with over 30 Design&Research Institutes including Beijing lifting conveying machinery design&research institute.
Welcome to visit Anhui Pandeng Group!
