| Supplier: | Jiangsu Zhuhong Forging Co., Ltd. |
|---|---|
| Price: | US $ 815/Ton |
| Min Order: | 15/Ton |
| Quantity:: | |
| Trade Terms: | FOB,CFR,CIF |
|
|
| Prod Model: | Materials 42Crmo4 |
|---|---|
| Markets: | North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Ultrasonic Test: | Sep1921-84 Class C/C, D/D |
| Materials: | Solid Steel Round Bar 42CrMo4V |
| Place Of Origin: | Wuxi,China |
| Rang Of Size: | 130mm-1200mm |
| Tolerance: | -0/+2mm for Size and -0/+10mm for Length |
| Range Of Length: | Customized |
| Weight Of Per Bar: | by Request |
| Delivery Condition: | Optional |
| Property: | by Specifications of Customers |
| Payment: | Ttor LC |
| Type: | Alloy Steel Bar |
| Standard: | BS |
| Technique: | Forged |
| Application: | Shipbuilding Industry |
| Alloy: | Alloy |
| Special Use: | Cold Heading Steel |
| Surface Treatment: | Shipbuilding Industry |
| C | Si | Mn | P | S | Cr | Ni | Mo | Cu | V | Al |
| 0.38/0.45 | 0.15/0.35 | 0.6/0.8 | <=0.025 | <=0.025 | 0.9/1.2 | <=0.2 | 0.15/0.3 | <=0.2 | <=0.05 | 0.02/0.04 |

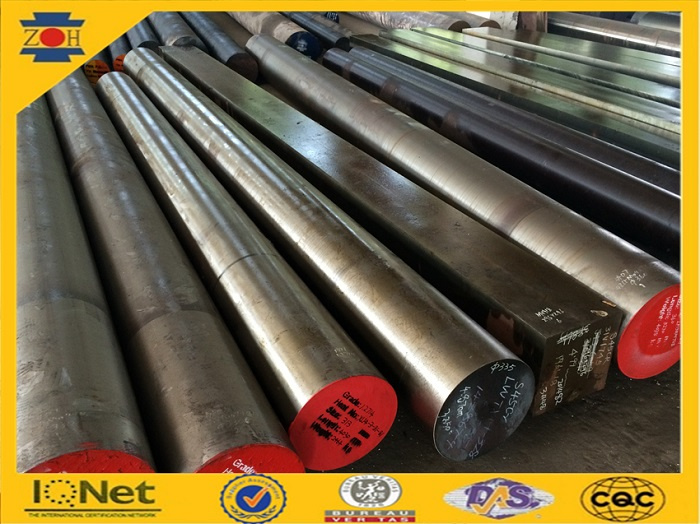

| Material: | 42CrMo4V forged steel round bar Or square bar |
| Process: | Forged from vacuum degassed ingots. |
| Diameter: | 130mm-1000mm (optional) |
| Length: | 1000mm-12000mm Straightness: 3mm/M max(optional) |
| Process: | EAF + LF + VD + Forged + Heat Treatment (optional) |
| Delivery condition: | Hot forged +Rough machined (black surface after Q/T)+ Turned (optional) |
| Delivery Time: | 30-45 days |
| MOQ: | 20 tons |
| Heat treatment: | Normalized / Annealed / Quenched / tempered (optional) |
| Technical Data: | According to the customer's requirement of Chemical Composition, Physical Properties and Mechanical Testing |
| Properties: | As your request |
| Test: | Ultrasonic test according to SEP 1921-84 Class C/c and D/d (optional) |
| Marking: | Grade, heat NO. length will be stamped one each bar with required color |
| Payment: | 30% advance by T\T; Balance pay before the shipment against shipping documents or irrevocable LC at sight |
| similar steel grade | 42CrMo/42CrMoS4/En19/4140/SAE4140/SCM440 |
| Application: | Statically and dynamically stressed components for vehicles, engines and machines. For parts of larger cross-sections, crankshafts, gears. |
