Product Specifications
| Prod Model: |
Mc Gmc GMD AC Contactor |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Theory: |
Thermal Relay |
| Size: |
Miniature |
| Type: |
AC Contactors |
| Electricity Type: |
AC |
| Number Of Pole: |
3 |
| Phase: |
3 |
Product Description

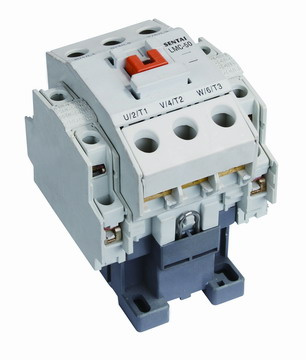

MC GMC AC Contactor
Application:
MC GMC AC Contactor one of the most advanced type breakers in the world, which adopts international advanced design and manufacture technology. They are suitable for short circuit and overload protection for circuit of AC 690V 50/60Hz, rated current from 16A to 1600A. Its rated insulation voltage is 690V. It can make and break the non-frequently circuit in the normal conditions. It takes protect effect when mouse cage motors non-frequent start, breaking off working and protecting overload, short circuit and lacking voltage. It complies with IEC60947-2.
Specification
Description DPX 125 DPX250
Pole number 3-4 3-4
Rated current In(A) 16-125 25-250
The electrical characteristic satisfies En60947-2
Rated working voltage
Ue(50-60Hz) 500 690
Rated working voltage Ue=(V) 250 250
Rated insulation voltage Ui-(V) 500 690
Rated impulse voltage uimp(KV) 6 B
Usage group A A
Moulded case switch type E H L
Limited breaking capacity(KA) 230/240V- 22 35 50 60 100 170
400/415V- 16 25 36 36 70 100
440V- 10 18 20 30 60 70
480/500V- 8 12 14 25 40 40
600V- - - - 20 25 25
690V- - - - 16 20 20
250V= 16 25 30 36 40 40
Used breaking capacity los(%ICU) 100 50 50 100 75 50
Short-circuit closed capacity(400V-) 32 52.5 75.6 75.6 154 220
Short-time withstand current lcw(KA)
Life(open, close for a time) Mechanical 700 700
1000 1000
Insulation capacity Electrical
|
Type |
AC1 duty |
AC3 duty |
Life time (x 104) |
Aux. contact |
|
200 240V |
380 440V |
500 550V |
690V |
Electrical |
Mechanical |
|
GMC-9 |
20A |
2.5kW 11A |
5kW 9A |
4kW 7A |
4kW 5A |
250 |
2500 |
1NO1NC |
|
GMC-12 |
20A |
3.5kW 13A |
5.5kW 12A |
7.5kW 12A |
7.5kW 9A |
250 |
2500 |
|
GMC-18 |
25A |
4.5kW 18A |
7.5kW 18A |
7.5kW 13A |
7.5kW 9A |
250 |
2500 |
|
GMC-22 |
32A |
5.5kW 22A |
11kW 22A |
15kW 22A |
15kW 18A |
250 |
2500 |
|
GMC-32 |
50A |
7.5kW 32A |
15kW 32A |
18.5kW 28A |
18.5kW 21A |
200 |
1500 |
2NO2NC |
|
GMC-40 |
60A |
11kW 40A |
18.5kW 40A |
22kW 32A |
22kW 25A |
200 |
1500 |
|
GMC-50 |
80A |
15kW 55A |
22kW 50A |
30kW 43A |
30kW 33A |
200 |
1000 |
|
GMC-65 |
100A |
18kW 65A |
30kW 65A |
37kW 60A |
37kW 47A |
200 |
1000 |
|
GMC-75 |
110A |
22kW 75A |
37kW 75A |
45kW 64A |
45kW 47A |
200 |
1000 |
|
GMC-85 |
135A |
25kW 85A |
45kW 85A |
45kW 75A |
45kW 52A |
200 |
1000 |
