Zhejiang Nonarc Electric Co., Ltd. >> Meba Proximity Sensor Lm18

Meba Proximity Sensor Lm18

Name: Meba Proximity Sensor Lm18
Brand: china-manufacturer-directory.com
SKU: 718952225
Availability: InStock
Rating: 4.4 (56 reviews)

Supplier:	Zhejiang Nonarc Electric Co., Ltd.
Price:	US $ 2.3/Piece
Min Order:	50/Piece
Quantity::
Trade Terms:	FOB,CFR,CIF

Product Specifications

Prod Model:	LM18

Product Description

MEBA Various Proximity sensor/proximity switches/sensors, Photoelectric sensor, SSR, with full selection of specifications. Our proximity switches covers: Inductance proximity switches, Capaitance proximity switches, Hall sensor, Mimic linear sensors, Reed sensor, and Safety explosion-proof sensors are very available with us.

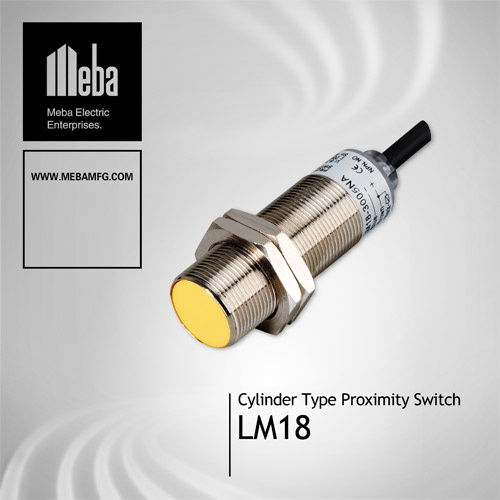

LM18 Proximity Switch
Flush mount and non-flush mount installation
NO, NC, NO+NC contact
Detection distance: 5mm, 8mm
36/250V AC

LM18 Proximity Switch

Model NO.	Detection distance	Working voltage	Output		Flush
Model NO.	Detection distance	Working voltage	Form	State	Flush
LM18-3005NA	5mm	DC6-36V	NPN	NO	Flush
LM18-3005NB	5mm	DC6-36V	NPN	NC	Flush
LM18-3005NC	5mm	DC6-36V	NPN	NO+NC	Flush
LM18-3005PA	5mm	DC6-36V	PNP	NO	Flush
LM18-3005PB	5mm	DC6-36V	PNP	NO	Flush
LM18-3005PC	5mm	DC6-36V	PNP	NO+NC	Flush
LM18-3005LA	5mm	DC6-36V	Two wire system	NO	Flush
LM18 -3005LB	5mm	DC6-36V	Two wire system	NC	Flush
LM18 -2005A	5mm	AC90-250V	SCR Control label silicon	NO	Flush
LM18-2005B	5mm	AC90 -250A	SCR Control label silicon	NC	Flush
LM18 -2005C	5mm	AC90 -250A	SCR Control label silicon	NO+NC	Flush
LM18-3008NA	8mm	DC6-36V	NPN	NO	Non-flush
LM18-3008NB	8mm	DC6-36V	NPN	NC	Non-flush
LM18-3008NC	8mm	DC6-36V	NPN	NO+NC	Non-flush
LM18-3008PA	8mm	DC6-36V	PNP	NO	Non-flush
LM18-3008PB	8mm	DC6-36V	PNP	NC	Non-flush
LM18-3008PC	8mm	DC6-36V	PNP	NO+NC	Non-Flush
LM18-3008LA	8mm	DC6-36V	Two wire system	NO	Non-flush
LM18 -3008LB	8mm	DC6-36V	Two wire system	NC	Non-flush
LM18 -2008A	8mm	AC90-250V	SCR Control label silicon	NO	Non-flush
LM18-2008B	8mm	AC90-250V	SCR Control label silicon	NC	Non-flush
LM18 -2008C	8mm	AC90-250V	SCR Control label silicon	NO+NC	Non-flush

Yueqing Meba Eelectrics, Products major in Circuit breaker, Single pole RCBO, Metal Distribution Board, Air conditioner Contactor, Temperature controller and Terminal Block. All crafts are strict to according to international standard, as IEC60898, IEC947-2, IEC61008. Another continuous sum-up of clients' suggestion, improvement of technology in daily life, we always strive to reduce the cost, improve the quality, minimizing environment impact, make our customers more competitive.

Your 99.999% satisfaction is our pursuit. Welcome to Meba/Nonrac.
