Meba Proximity Sensor Lmf10

Name: Meba Proximity Sensor Lmf10
Brand: china-manufacturer-directory.com
SKU: 718844155
Availability: InStock
Rating: 4.9 (41 reviews)

Supplier:	Zhejiang Nonarc Electric Co., Ltd.
Price:	US $ 2.52/Piece
Min Order:	10/Piece
Quantity::
Trade Terms:	FOB,CFR,CIF

Product Specifications

Prod Model:	LMF10
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe

Product Description

MEBA Various Proximity sensor/switches/proximity sensors, Photoelectric sensor, SSR, with full selection of specifications. Our proximity switches covers: Inductance proximity switches, Capaitance proximity switches, Hall sensor, Mimic linear sensors, Reed sensor, and Safety explosion-proof sensors are very available with us.

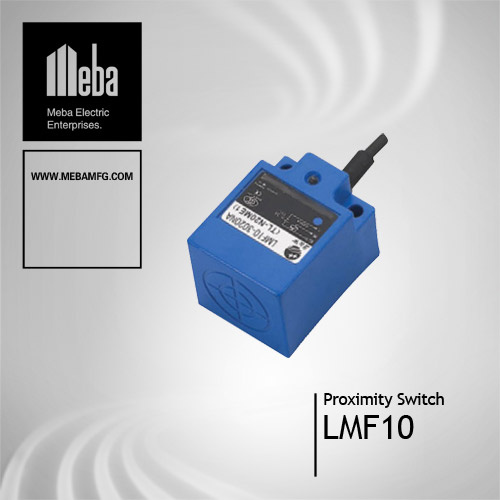

LMF10 Angular Column type inductive proximity sensor switch
CE, OEM, ODM
Long service life
High on-off frequency
Dust proo

Specifications
1. CE approved
2. Inductive switches, proximity principle, proximity probe, proximity switch
3. Detection distance: 5mm
4. Get China Compulsory Certification

Technical Parameters:

Non-flush	Detection distance			20mm
	DC 6~ 36 VDC	NPN	NO	LMF10-3020NA
			NC	LMF10-3020NB
			NO+NC	LMF10-3020NC
		PNP	NO	LMF10-3020PA
			NC	LMF10-3020PB
			NO+NC	LMF10-3020PC
		Two wire system	NO	LMF10-2020LA
			NC	LMF10-2020LB
	AC 90~ 250 VAC	SCR	NO	LMF10-2020A
			NC	LMF10-2020B
			NO+NC	LMF10-2020C
		Relay output

		DC		300mA
		SCR/Relay		500mA
Output voltage dropDC/AC				DC<3V, AC<10V
Consumption current				DC<15mA, AC<10mA
Standard detected object				45×45×1(A3 )
Repeated precision				0.05
DC/AC Response frequency				100Hz/15Hz
Working environment temperature				-25 ~+70 degree
Insulation resistance				50MΩ
Shell material				ABC Resinl
Protection grade				IP67

Yueqing Meba Eelectrics, Products major in Circuit breaker, Single pole RCBO, Metal Distribution Board, Air conditioner Contactor, Temperature controller and Terminal Block. All crafts are strict to according to international standard, as IEC60898, IEC947-2, IEC61008. Another continuous sum-up of clients' suggestion, improvement of technology in daily life, we always strive to reduce the cost, improve the quality, minimizing environment impact, make our customers more competitive.

Your 99.999% satisfaction is our pursuit. Welcome to Meba/Nonrac.
