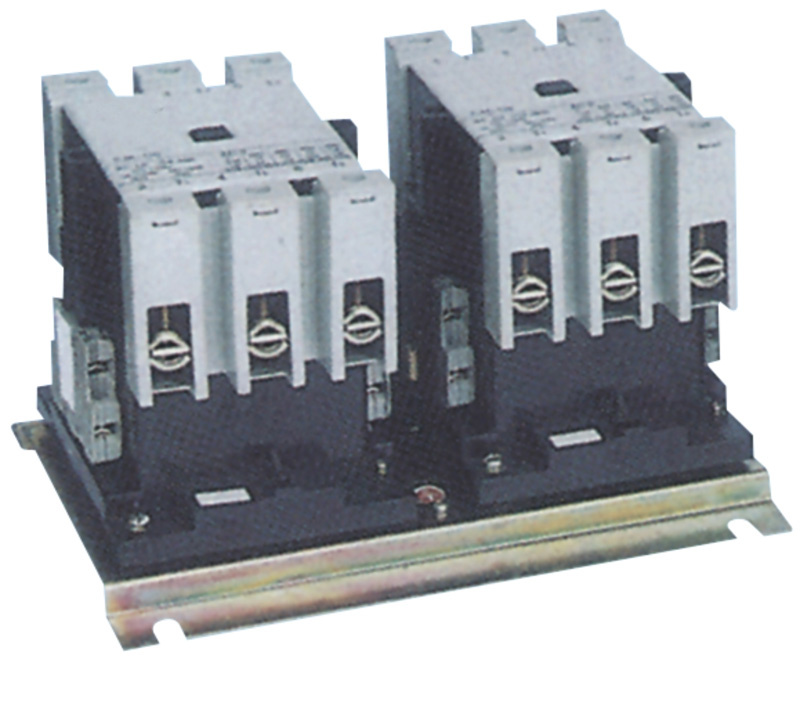

Product Specifications
| Prod Model: |
E3TD Series |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Rated Thermal Current(a): |
20 20 30 30 55 55 80 80 100 100 160 160 200 210 |
| Rated Operation Current(a): |
380VT660V |
| Controllable Power Of Motor (Kw): |
AC-3Tac-4 |
| Model: |
E3td40 E3td41 E3td42 E3td43 E3td44 E3td45 E3td46 |
| Theory: |
Electromagnetic Relay |
| Usage: |
Car Relay, Household Appliances Relay, Communication Relay, Lathe Relay, Industry Relay |
| Protective Characteristics: |
Sealed relay |
| Load: |
High Power Relay |
| Action Principle: |
Electromagnetic Type |
| Size: |
Normal |
Product Description
Specification
Type | Rated thermal current(A) | Rated operation current(A) | Controllable power of motor (KW) |
| AC-3 | AC-4 |
| 380V | 660V | 380V | 660V | 380V | 660V |
| E3TD40 | 20 | 9 | 7 | 4 | 5.5 | 1.4 | 2.4 |
| E3TD41 | 20 | 12 | 8.5 | 5.5 | 7.5 | 1.9 | 3.3 |
| E3TD42 | 30 | 16 | 12.5 | 7.5 | 11 | 3.5 | 6 |
| E3TD43 | 30 | 22 | 16.5 | 10 | 15 | 4 | 6.6 |
| E3TD44 | 55 | 32 | 24 | 15 | 22 | 7.5 | 13 |
| E3TD45 | 55 | 38 | 24 | 18.5 | 22 | 9 | 15.5 |
| E3TD46 | 80 | 45 | 40 | 22 | 37 | 12 | 20.8 |
| E3TD47 | 80 | 63 | 60 | 30 | 55 | 14 | 24.3 |
| E3TD48 | 100 | 75 | 60 | 37 | 55 | 17 | 29.5 |
| E3TD49 | 100 | 85 | 80 | 45 | 75 | 21 | 36 |
| E3TD50 | 160 | 110 | 95 | 55 | 90 | 27 | 46.9 |
| E3TD51 | 160 | 140 | 120 | 75 | 110 | 35 | 60 |
| E3TD52 | 200 | 170 | 160 | 90 | 150 | 38 | 66 |
| E3TD53 | 210 | 205 | 165 | 110 | 160 | 50 | 86 |
| E3TD54 | 300 | 250 | 230 | 132 | 220 | 58 | 100 |
| E3TD55 | 300 | 300 | 260 | 160 | 20 | 66 | 114 |
| E3TD56 | 400 | 400 | 380 | 200 | 355 | 81 | 140 |
| E3TD58 | 630 | 630 | 600 | 335 | 560 | 160 | 278 |
