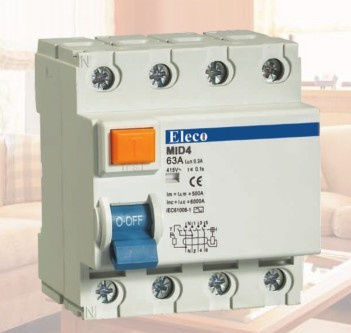

4 (3+N) Residual Current Circuit Breaker (MID Series, ID)

Name: 4 (3+N) Residual Current Circuit Breaker (MID Series, ID)
Brand: china-manufacturer-directory.com
SKU: 776084965
Availability: InStock
Rating: 4.3 (36 reviews)

Supplier:	Ruian Eleco Electric Co., Ltd.
Price:	Negotiable/Piece
Min Order:	100/Piece
Quantity::
Trade Terms:	FOB,CFR,CIF

Product Specifications

Prod Model:	MID Series, ID
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Protection:	Ground Fault
Rated Current:	16,25,32,40,63,80,100A
Rated Sensitivity Current:	10,30,100mA
Type Of Trip:	Electro-Magnetic Release
Number Of Poles:	2(1+N),4(3+N)P
Breaking Capacity:	Low Voltage Circuit Breakers
Operation:	Manual Type
Speed:	High-Speed Circuit Breaker
Arc-extinguishing Medium:	Air
Installation:	Fixed
Structure:	ELCB
Certification:	Semko
Poles Number:	2p, 4p

Product Description

Without auxiliary powersupply, the product is design with strong immunity and extending protection range against residual current with higher rated ultimate short circuit up to 6KA.
High reliable operation thanks to special design terminals.
Even under the pollution environment, the working reliability of the product will never be changed.
Enclosure and functional parts made from imported plastics with flame -retardant, heat-resistant , and impulse-proof properties.
Convenient mounting
More flexible and reliable operation with a handle
With contactor condition indicatior.
Application

Standard	Confirming to IEC610018-1
Protection	Ground fault
Rated current, In	16,25,32,40,63,80,100A
Number of poles	2(1+N), 4(3+N)pole
Rated sensitivity currents, In	10,30,100mA
Rated residual non-operating current	0.5* In
Rated impulse withstand voltage Uimp	6000V
Rated voltage 2pole 4pole	240VAC 240/415VAC
Residual current off-time at In	≤0.1s
Rated residual current making & breaking capacity,ImA	500A for In=16,25,32,40A 630A for In=63,80,100A
Rated conditional short-circuit current, Inc	6kA
Type of Trip	Electro-magnetic release
Terminal Capacity	Cables up to 35mm²
Degree of Protection	IP20
Installation	35mm DIN rail
Slot Size	45mm

ELECO Electric is one of the most specialized manufacturers and exports for modular electric terminal devices for household and similar installations in China. The wide range products under manufacturing covers Miniature Citcuit Breaker(MCB), Residual Current Circuit Breaker(RCCB), Residual Current Circuit Breakers with Overcurrent Protection(RCBO), Switch- disconnector, Distribution Box, Moulded case circuit breaker(MCCB), air circuit breaker(ACB), AC Contactor, Magnetic Starter, Motor Protection Circuit Breaker, Thermal Relay and K. W. H meter etc. The company takes the reputation as one of the largest manufacturer of electromagnetic type RCCB and RCBO. OEM or ODM projects are fully accepted, and currently the company is co-operating with numbers of renowned intermational corporations for such projects.

Experience in manufacturing under customers design, trade, biding project, OEM and competitive cooperation related to the new products & technology. Won approvals of CE, SEMKO, CB, KEMA, FI, CCC and ISO9001 Quality System Certificate etc. Products being popular around the world, such as Europe, America, Southeast Asia, Middle East, Africa, etc.
