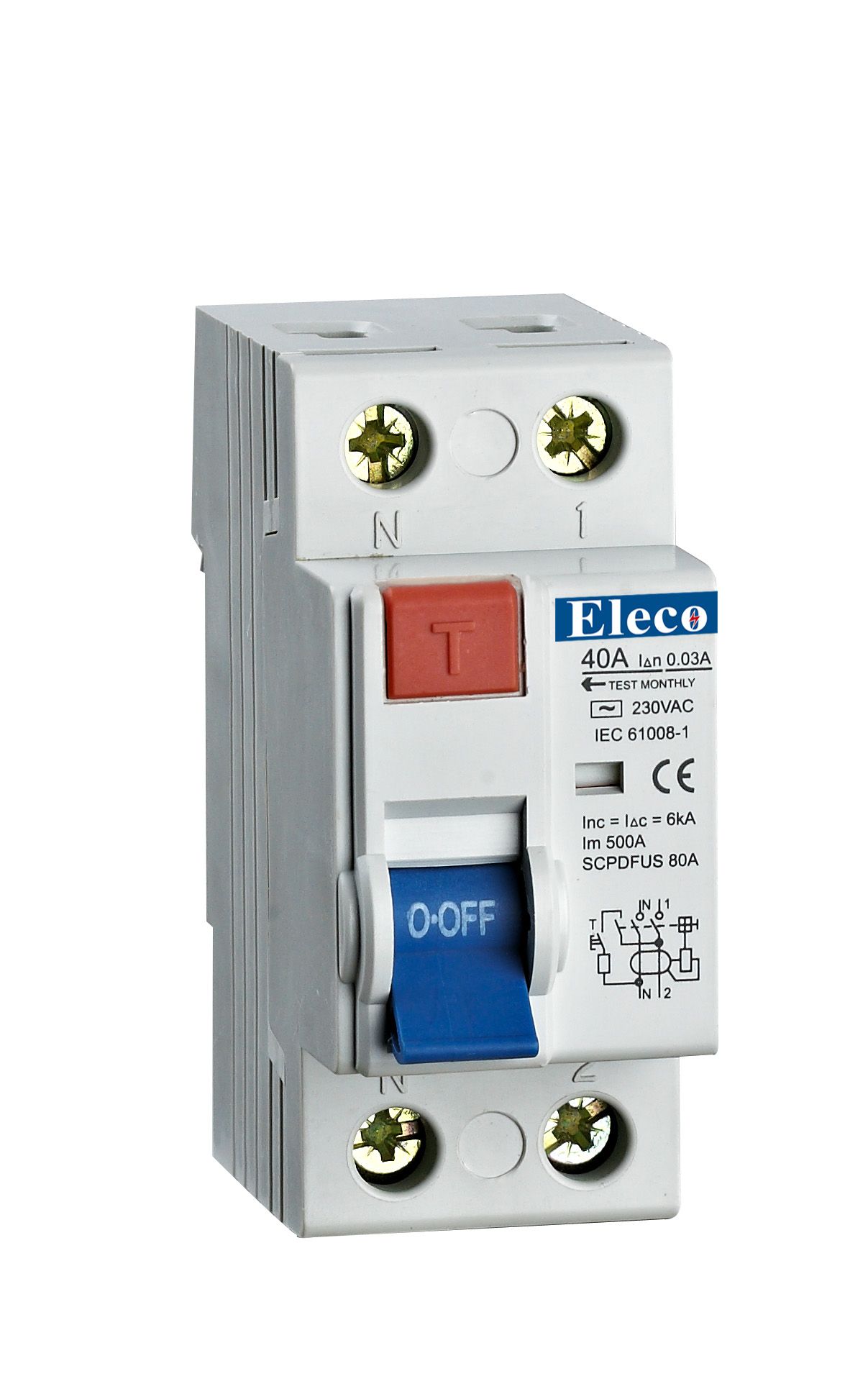

Product Specifications
| Prod Model: |
SGD Series |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Rated Conditional Short-Circuit Curren: |
Inc 10ka |
| Rated Current ,in: |
16,25,32,40,63A |
| Rate Sensitivity Currents, IΔn: |
10,30,100,300mA |
| Number Of Poles: |
2(1+N), 4 (3+N) Pole |
| Rated Voltage: |
2p:230VAC 4p:230/400VAC |
| Type Of Trip: |
Electro-Magnetic Release |
| Type Of Terminal: |
Pin Type |
| Breaking Capacity: |
Low Voltage Circuit Breakers |
| Operation: |
Manual Type |
| Speed: |
High-Speed Circuit Breaker |
| Arc-extinguishing Medium: |
Air |
| Installation: |
Fixed |
| Structure: |
ELCB |
| Certification: |
Semko |
| Poles Number: |
2p, 4p |
Product Description
When designing residual current devices, manufacturing technology and type of routine tests, the IEC/EN61008 standards were considered Important features are:
1.Up to date design
2.User-friendly connection of conductors and busbars.
3.Resistance to current surges; unwanted tripping excluded
4.Simple and solid fixing to a 35mm mounting rail in compliance with EN60715
5.Additional colour display of main contacts position(red: contacts closed, green: contacts open)
| Rated Conditional Short-Circuit Curren | Inc 10ka |
| Rated Current ,in | 16,25,32,40,63A |
| Rate Sensitivity Currents, IΔn | 10,30,100,300mA |
| Number of Poles | 2(1+N), 4 (3+N) Pole |
| Rated Voltage | 2p:230VAC 4p:230/400VAC |
| Type of Trip | Electro-Magnetic Release |
| Type of Terminal | Pin Type |
