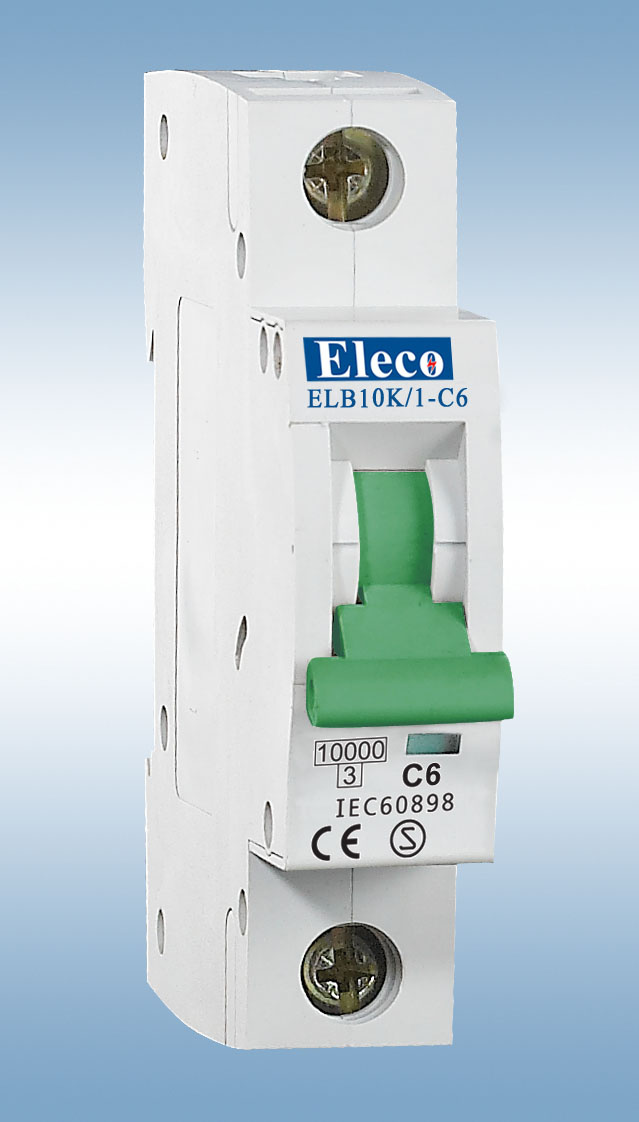

Product Specifications
| Prod Model: |
ELB10K Series |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Rated Current (a): |
0.5,1,2,3,4,6,10,13,16,20,25,32,40,50,63A |
| Rated Voltage: |
1pole 230/400V AC 50/60Hz,2,3,4pole 400V AC 50/60h |
| Ambient Temperature: |
-5octo +40ocpursuant to En / IEC60898 |
| Number Of Poles: |
1p,1p+N,2p,3p,3p+N and 4p |
| Breaking Capacity: |
Low Voltage Circuit Breakers |
| Operation: |
Manual Type |
| Speed: |
High-Speed Circuit Breaker |
| Arc-extinguishing Medium: |
Air |
| Installation: |
Fixed |
| Structure: |
MCB |
| Certification: |
Semko |
| Poles Number: |
1p.2p.3p.4p |
Product Description
Application
| Standard | Confirming to EN / IEC60898 |
| Breaking capacity | 10kA |
| Protection | Against overload and short circuit |
| Rated current In | 0.5,1,2,3,4,6,10,13,16,20,25,32,40,50,63A |
| Rated voltage | 1pole 230/400V AC 50/60Hz 2,3,4pole 400V AC 50/60Hz Rated insulation voltage Ui: Rated impulse withstand voltage Uimp: 6000V Energy limiting class: 3 |
| Ambient temperature | -5ºCto +40ºCpursuant to EN / IEC60898 |
| Characteristic | Thermal operating limit: (1.13-1.45) x In Magnetic operating: B: (3-5) x In C: (5-10) x In D: (10-20) x In |
| Number of poles | 1P,1P+N,2P,3P,3P+N and 4P |
| Type of trip | Thermal / magnetic release |
| Type of terminal | Lug type and Pin type |
| Terminal capacity | 16mmflexible or 25mmrigid up to 25A ratings 25mmflexible or 35mmrigid for 32A to 63A ratings |
| Protection degree | IP20 |
| Installation | Mounting on 35mm DIN rail |
| Width | 17.5mm per pole |
About us
ELECO Electric is one of the most specialized manufacturers and exporters for modular electric terminal devices for household and similar installations in China. The wide range products under manufacturing covers Miniature Circuit Breaker(MCB),Residual Current Circuit Breaker(RCCB), Residual Current Circuit Breakers with Overcurrent Protection(RCBO),Switch -disconnector,Distribution Box, Moulded case circuit breaker(MCCB), air circuit breake (ACB), AC Contactor,Magnetic Dtarter, Motor Protection Circuit Breaker, Thermal Relay and K.W.H meter etc.The company takes the reputation as one of the largest manuafacturer of electro-magnetic type RCCB and RCBO. OEM or ODM projects are fully accepted, and currently the company is co-operating with numbers of renowned international corporations for such projects.
ELECO Electric is one of the most specialized manufacturers and exports for modular electric terminal devices for household and similar installations in China. The wide range products under manufacturing covers Miniature Citcuit Breaker(MCB), Residual Current Circuit Breaker(RCCB), Residual Current Circuit Breakers with Overcurrent Protection(RCBO), Switch- disconnector, Distribution Box, Moulded case circuit breaker(MCCB), air circuit breaker(ACB), AC Contactor, Magnetic Starter, Motor Protection Circuit Breaker, Thermal Relay and K. W. H meter etc. The company takes the reputation as one of the largest manufacturer of electromagnetic type RCCB and RCBO. OEM or ODM projects are fully accepted, and currently the company is co-operating with numbers of renowned intermational corporations for such projects.
Experience in manufacturing under customers design, trade, biding project, OEM and competitive cooperation related to the new products & technology. Won approvals of CE, SEMKO, CB, KEMA, FI, CCC and ISO9001 Quality System Certificate etc. Products being popular around the world, such as Europe, America, Southeast Asia, Middle East, Africa, etc.
