Product Specifications
| Prod Model: |
EOM3 Series |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Rated Current Of Frame(a): |
125, 160, 250, 400, 630, 800 |
| Rated Operating Voltage(V): |
400, 690 |
| Rated Frequency(Hz): |
50 |
| Poles: |
3, 4 |
| Breaking Capacity: |
Low Voltage Circuit Breakers |
| Operation: |
Manual Type |
| Speed: |
High-Speed Circuit Breaker |
| Arc-extinguishing Medium: |
Air |
| Installation: |
Fixed |
| Structure: |
MCB |
| Certification: |
Semko |
| Poles Number: |
3p, 4p |
Product Description
Application

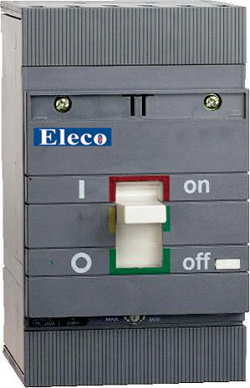

EOM3 series moulded case breaker(named breaker below) is applicable to the distribution network of AC 50Hz, rated insulation voltage 690V(400V for the frame with rated current of 125A),max 690V or less, and max 800A as the distribution of electricenergy, the breakers with 400A or less may be applied to protect the motor. Undernormal condition, the breaker may be applied as unfrequent change-over of circuit and unfrequent start of motor. This product accordance with the standards of IEC947-2-1989 and GB14048.2-1994.
Specification
| Type | Rated current of frame(A) | Rated operating voltage(V) | Rated frequency(Hz) | Rated current (A) | Pole |
| EOM3L,H-125 | 125 | 400
690 | 50 | 12.5,16,20,25,32,40,50,63,80,100,125 | 3,4 |
| EOM3L,H-160 | 160 | 50 | 16,20,32,40,50,63,80,100,125,160 | 3,4 |
| EOM3L,H-250 | 250 | 50 | 100,125,160,180,200,225,250, | 3,4 |
| EOM3L,H-400 | 400 | 50 | 200,225,250,315,350,400 | 3,4 |
| EOM3L,H-630 | 630 | 50 | 400,500,600 | 3,4 |
| EOM3L,H-800 | 800 | 50 | 500,630,700,800 | 3,4 |
