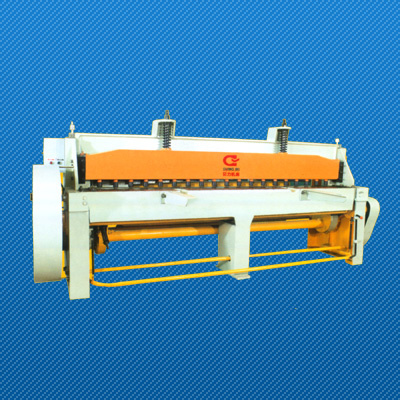

Mechanical Shearing Machine

Name: Mechanical Shearing Machine
Brand: China-Manufacturer-Directory.com
SKU: 624827735
Availability: InStock
Rating: 4.3 (120 reviews)

Supplier:	Guangzhou Bei Li Mechanic Tool Co., Ltd.
Price:	Negotiable
Min Order:	1 /Piece
Quantity::
Trade Terms:	FOB HUANGPU

Product Specifications

Prod Model:	Q11 series
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Application:	Machinery & Hardware
Automation:	Semi-automatic
Type:	Shearing Machine
Type For Cutting Machine:	Mechnical Shearing Machine

Product Description

The machine is of all-steel welded construction. Simple construction with good appearance. It is easy to operate, with low energy consumption. It is widely used for medium and thick steel sheet forming in the light machine industry, hardware manufacture. The blade is made from Cr9Si. CNC backgauge is available to give higher precision.

Model	Maximum shear thickness mm	Maximum shear width mm	worktable height mm	Max shear perminute S. P. M	Shear angle mm	Back-gauge station mm	Main motor kw	Dimension (LXWXH) mm	Weight kg
Q11-3X1300	3	1300	880	45	1° 50’	400	2.2	2075X1235X1270	1500
Q11-3X1500	3	1500	880	45	2°	400	3	2075X1235X1270	1600
Q11-4X1500	4	1500	880	45	2°	480	3	2290X1355X1232	1600
Q11-2X2000	2	2000	880	45	2°	480	3	2890X1430X1325	1900
Q11-3X2000	3	2000	880	45	2°	480	3	2890X1430X1325	2000
Q11-4X2000	4	2000	860	46	2°	680	4	2870X1470X1350	2000
Q11-4X2500	4	2500	820	48	2° 18’	680	4	3510X1600X1465	3200
Q11-6X1500	6	1500	820	47	2° 18’	680	5.5	2540X1600X1550	2500
Q11-6X2000	6	2000	820	47	2° 18’	680	5.5	3040X1600X1550	3200
Q11-6X2500	6	2500	820	47	2° 18’	680	7.5	3510X1600X1550	3600
Q11-8X1500	8	1500	820	47	2° 18’	680	11	3510X1600X1550	2800
Q11-8X2000	8	2000	820	47	2° 18’	680	11	3060X1650X1550	3500
Q11-8X2500	8	2500	820	47	2° 18’	680	15	3600X1650X1550	3800
Q11-8X3200	8	3200	820	47	2° 18′	680	15	3600X1650X1550	3800

Guangzhou Bei Li Mechanic Tool Co., Ltd. Is a factory specialized in manufacturing forging and pressing equipment. The main scope of products includes press brake, shearing machine, rolling machine, power press and uncoil-level shearing line.
The company covers an area of twenty-eight thousand square meters. It owns several standard workshop and a comprehensive office building. With staff mainly composed of professional engineers and technicians, it is capable of designing, developing, manufacturing and processing equipment of standard series as well as large non-standard series equipment. We have already set up systems of strict management, complete quality guarantee and fine after-service. Our products are widely applied to sectors of mechanical manufacture, automobile, steel construction, electrics, stainless steel product and decoration project.
Beili has been committing itself to provide the manufacturing with best solutions since it was established. During the course of globalization, basing ourselves upon China market and taking a broader view of the world market, we are marching toward the better, stronger ad higher future targets with precise professional spirit, innovative research capability and rock-firm teamship.
